REAR MASTER CYLINDER
GS550M 1982 (Z) USA (E03)

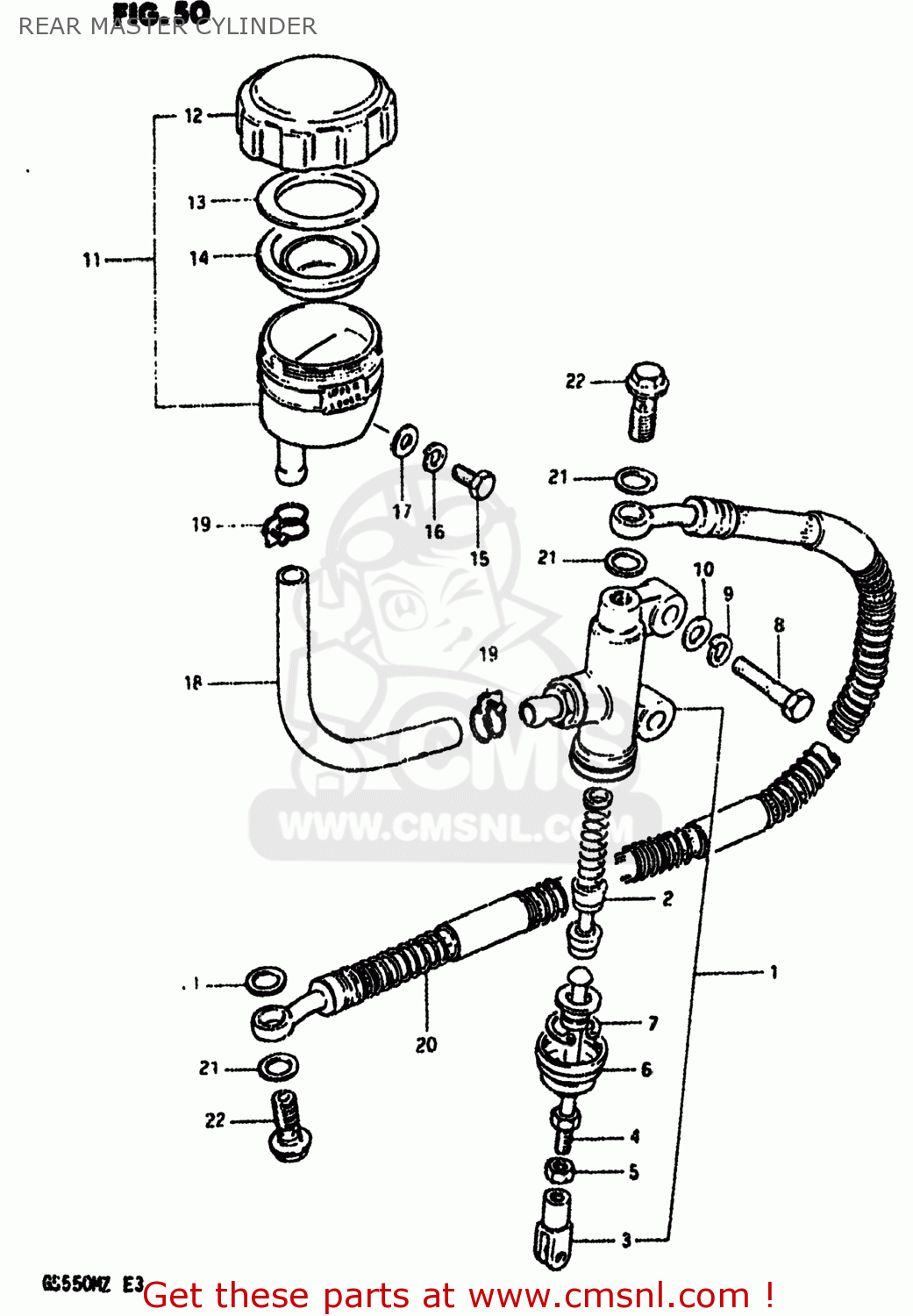

Rear master cylinder diagram GS550M 1982 (Z) USA (E03)
REAR MASTER CYLINDER GS550M 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960045302
ref: 1
CYLINDER ASSY,RR MASTER
€ 177.00
2
6960045820
ref: 2
PISTON/CUP SET
€ 53.00
3
6969234300
ref: 3
YOKE
€ 11.00
4
6967045301
ref: 4
ROD,REAR MASTER CYLINDER
€ 13.50
5
6969334300
ref: 5
69693-05A00
NUT,MASTER CYLINDER
€ 1.50
6
6969145001
ref: 6
BOOT
€ 6.50
7
5116270040
ref: 7
CIRCLIP
€ 3.00
8
0110708308
ref: 8
01500-08307
BOLT (8X30)
€ 2.50
9
0832121088
ref: 9
08321-01087
LOCK WASHER
€ 2.00
10
0832211088
ref: 10
08322-01087
WASHER
€ 2.00
11
6974034230
ref: 11
69740-31D00
TANK ASSEMBLY,RESERVOIR
€ 27.50
12
5966933603
ref: 12
59669-07D00
CAP
€ 16.50
13
5966818441
ref: 13
PLATE,DIAPHRAGM
€ 3.50
14
5966718441
ref: 14
DIAPHRAGM
€ 8.50
15
0110706168
ref: 15
01500-06167
BOLT, UPPER
€ 3.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
0832221068
ref: 17
08322-01067
WASHER
€ 2.00
18
6973147700
ref: 18
HOSE,RESERVOIR TANK
€ 3.50
19
0940016302
ref: 19
09400-16304
CLAMP
€ 4.50
20
6948047701
ref: 20
HOSE,REAR BRAKE
€ 0.00
21
0916110005
ref: 21
09161-10009
WASHER
€ 2.00
22
0936010007
ref: 22
09360-10017
BOLT,UNION
€ 6.50
