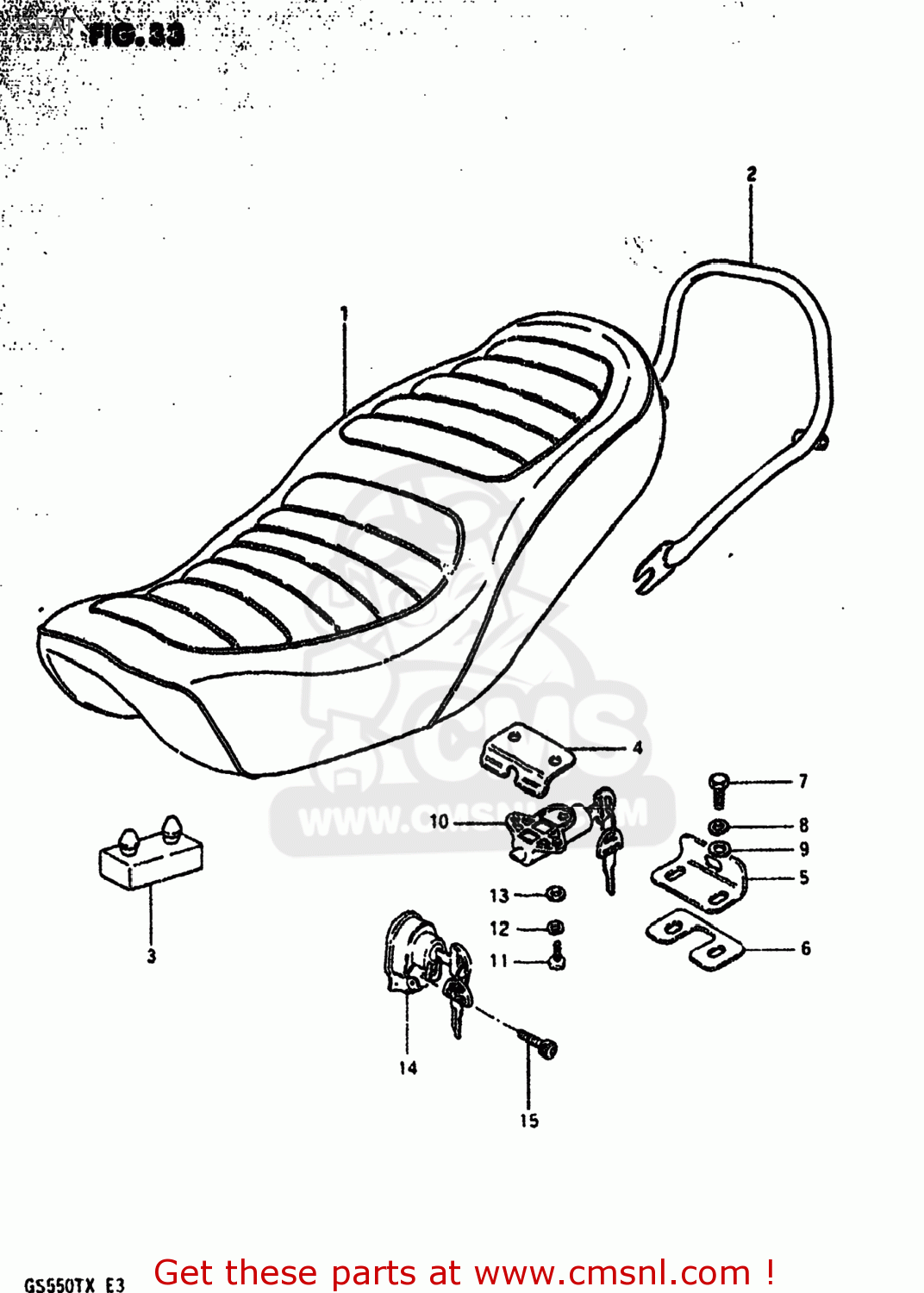

SEAT

ref

part #

description

quantity

1

451004741041G
ref: 1
45100-47403-48G

SEAT ASSEMBLY

€ 80.00

2

4621047400
ref: 2

HANDLE,PILLION RIDER

€ 55.00

3

0932108006
ref: 3

CUSHION

€ 3.00

4

4512834400
ref: 4

GUIDE, PLATE

€ 3.50

5

4521334400
ref: 5

STRIKER, SEAT LOCK

€ 0.00

6

4521747200
ref: 6
09160-08043

SHIM,SEAT LOCK STRIKER

€ 1.50

7

0110706166
ref: 7
01500-0616A

BOLT

€ 2.00

8

0832121088
ref: 8
08321-01087

LOCK WASHER

€ 2.00

9

0832221088
ref: 9
08322-01087

WASHER

€ 2.00

10

9570047820
ref: 10

LOCK ASSEMBLY,SEAT

€ 61.50

11

0110706208
ref: 11
01500-06207

BOLT

€ 2.00

12

0832121068
ref: 12
08321-01067

LOCK WASHER

€ 2.50

13

0832221068
ref: 13
08322-01067

WASHER

€ 2.00

14

9570034210
ref: 14

LOCK ASSY,HELMET

€ 59.00

15

0910605008
ref: 15
07130-0525B

BOLT 5X25

€ 2.00

16

4631047400
ref: 16
46310-47401

CARRIER

€ 0.00

17

4630044810
ref: 17

FITTING SET,CARRIER

€ 9.50
