TURN SIGNAL LAMP
GS550T 1981 (X) USA (E03)

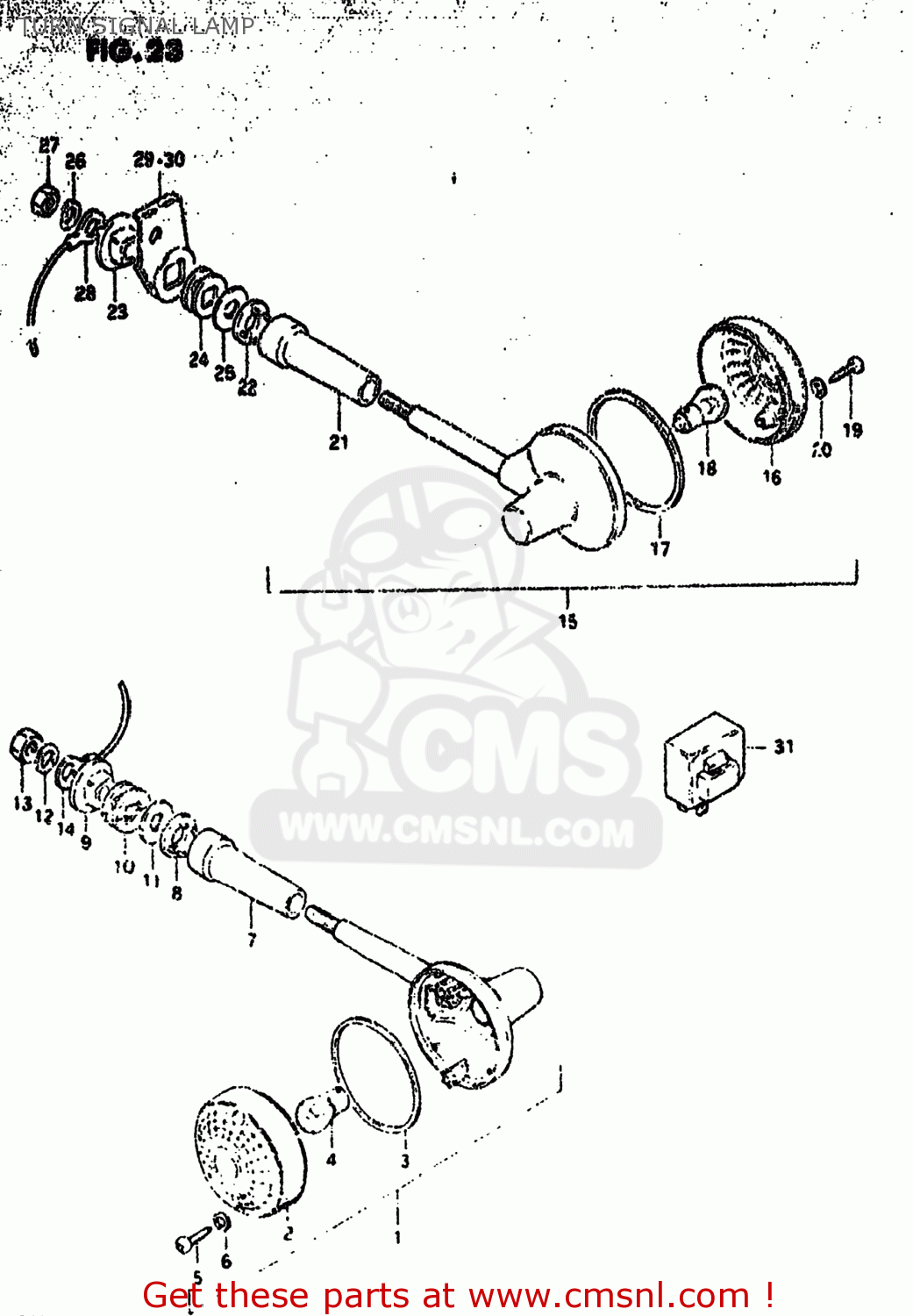

Turn signal lamp diagram GS550T 1981 (X) USA (E03)
TURN SIGNAL LAMP GS550T 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560347230
ref: 1
35603-47230-999
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 122.50
2
3561228620
ref: 2
LENS
€ 10.50
3
3561328620
ref: 3
GASKET (NAS)
€ 7.00
4
0947112006
ref: 4
BULB(12V23W,STANLEY,A4577A)
€ 4.00
5
0321104208
ref: 5
03211-04207
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
3561747230
ref: 7
COVER,STAY
€ 10.00
8
3566547210
ref: 8
35668-47290
SPACER
€ 3.00
9
3569532401
ref: 9
SPACER
€ 4.50
10
3569032200
ref: 10
CUSHION
€ 38.50
11
0916010006
ref: 11
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
12
0832121108
ref: 12
08321-01107
LOCK WASHER
€ 2.00
13
0831012108
ref: 13
08310-00107
NUT
€ 2.50
14
3686245000
ref: 14
36660-33000
WIRE
€ 5.00
15
3560347230
ref: 15
35603-47230-999
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 122.50
16
3561228620
ref: 16
LENS
€ 10.50
17
3561328620
ref: 17
GASKET (NAS)
€ 7.00
18
0947112006
ref: 18
BULB(12V23W,STANLEY,A4577A)
€ 4.00
19
0321104208
ref: 19
03211-04207
SCREW
€ 1.50
20
3562743010
ref: 20
GASKET (NAS)
€ 2.00
21
3561747230
ref: 21
COVER,STAY
€ 10.00
22
3566547210
ref: 22
35668-47290
SPACER
€ 3.00
23
3569532401
ref: 23
SPACER
€ 4.50
24
3569032200
ref: 24
CUSHION
€ 38.50
25
0916010006
ref: 25
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
26
0832121108
ref: 26
08321-01107
LOCK WASHER
€ 2.00
27
0831012108
ref: 27
08310-00107
NUT
€ 2.50
28
3685145290
ref: 28
36862-44000
WIRE
€ 4.00
29
3562034201
ref: 29
35620-34202
BRACKET,REAR TURN SIGNAL
€ 6.50
30
3564034201
ref: 30
35640-34202
BRACKET,REAR TURN SIGNAL
€ 7.00
31
3861045031
ref: 31
38610-31X50
RELAY,TURN SIGNAL
€ 54.50
