SPEEDOMETER - TACHOMETER
GS550T 1981 (X) USA (E03)

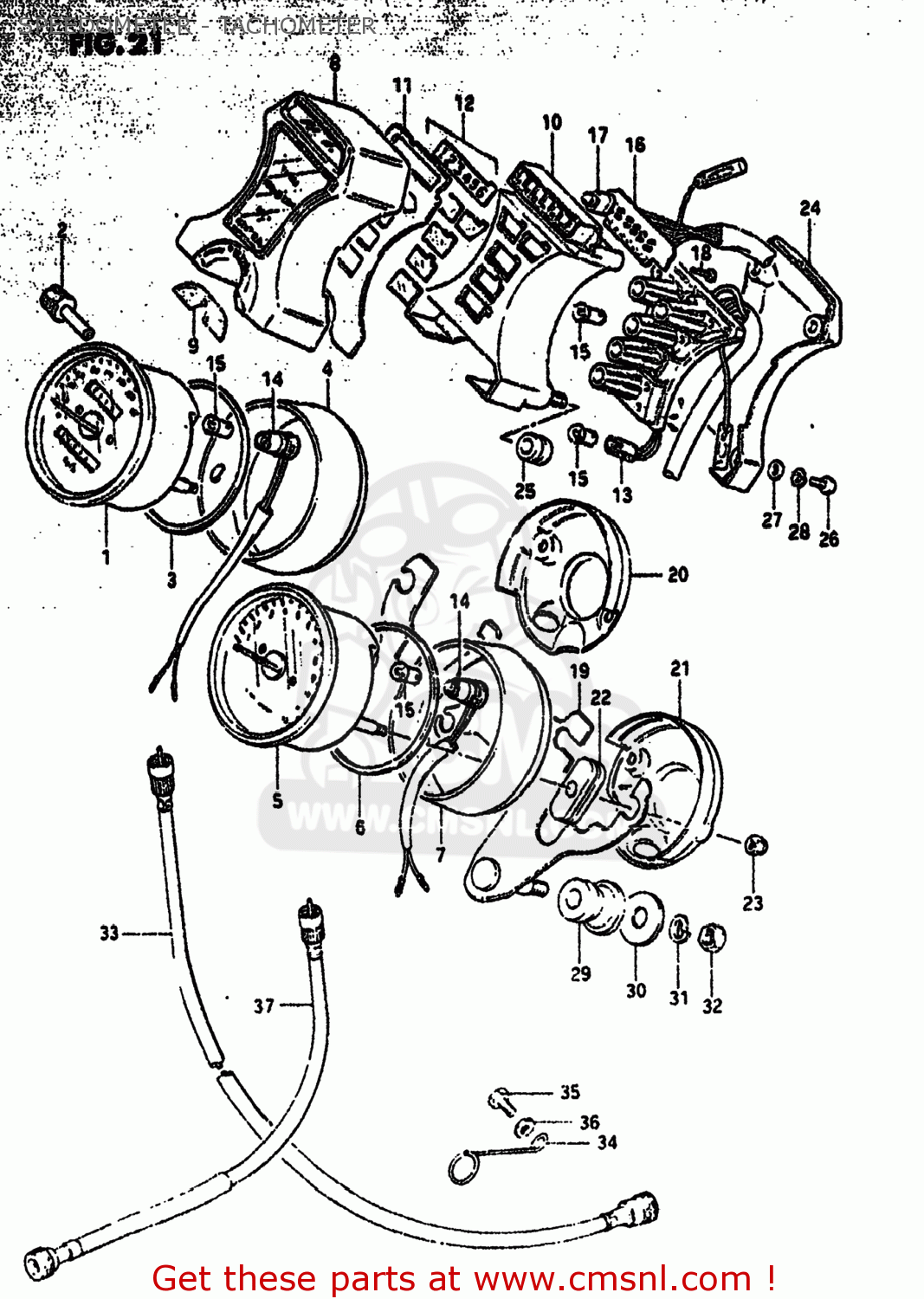

Speedometer - tachometer diagram GS550T 1981 (X) USA (E03)
SPEEDOMETER - TACHOMETER GS550T 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3411034510
ref: 1
SPEEDOMETER ASSEMBLY
€ 188.00
2
3412428010
ref: 2
34124-34500
KNOB,TRIP
€ 7.50
3
3418934510
ref: 3
CUSHION,SPEEDOMETER
€ 8.50
4
3415134510
ref: 4
COVER,SPEEDOMETER
€ 10.00
5
3421047310
ref: 5
34210-34300
TACHOMETER
€ 316.00
6
3418934510
ref: 6
CUSHION,SPEEDOMETER
€ 8.50
7
3425134510
ref: 7
COVER,TACHOMETER
€ 29.50
8
3638034510
ref: 8
CASE,PILOT BULB
€ 40.50
9
3639134510
ref: 9
PAD
€ 1.50
10
3638134510
ref: 10
CASE,PILOT BULB,INNER
€ 13.00
11
3638434510
ref: 11
CUSHION
€ 6.50
12
3630047810
ref: 12
LENS SET,PILOT LAMP
€ 14.00
13
3632534510
ref: 13
36325-47400
SOCKET
€ 30.00
14
3417334510
ref: 14
34173-47400
SOCKET,METER
€ 13.50
15
0947112001
ref: 15
BULB(12V3.4W,STANLEY,A72A)
€ 1.50
16
3645347300
ref: 16
36453-47400
SOCKET,GEAR INDICATOR
€ 29.50
17
0947112071
ref: 17
BULB(14V1.12W)
€ 5.00
18
3645634510
ref: 18
09132-03501
SCREW,GEAR INDICATOR
€ 2.00
19
3495034510
ref: 19
BRACKET,COMBINATION METER
€ 27.50
20
3419334510
ref: 20
COVER,SPEEDOMETER,UNDER
€ 32.50
21
3429334510
ref: 21
COVER,TACHOMETER,UNDER
€ 23.00
22
3419134510
ref: 22
34191-34511
CUSHION,METER
€ 7.50
23
0831311057
ref: 23
08313-1005A
NUT
€ 1.50
24
3638334510
ref: 24
COVER,PILOT BOX,UNDER
€ 17.50
25
3638434510
ref: 25
CUSHION
€ 6.50
26
0211204128
ref: 26
02112-0412A
SCREW
€ 1.50
27
0832221048
ref: 27
08322-01047
WASHER
€ 2.00
28
0832121048
ref: 28
08321-0104A
LOCK WASHER
€ 2.00
29
3495631001
ref: 29
CUSHION,METER BRACKET
€ 4.50
30
0916008002
ref: 30
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
31
0832121088
ref: 31
08321-01087
LOCK WASHER
€ 2.00
32
0831012088
ref: 32
08310-00087
NUT
€ 2.00
33
3491047310
ref: 33
34910-44400
CABLE ASSEMBLY,SPEEDOMETER
€ 27.50
34
3493845100
ref: 34
CLAMP,SPEEDOMETER CABLE
€ 14.50
35
0110706168
ref: 35
01500-06167
BOLT, UPPER
€ 3.00
36
0832221088
ref: 36
08322-01087
WASHER
€ 2.00
37
3494047031
ref: 37
34940-47033
CABLE ASSEMBLY,TACHOMETER
€ 20.50
