FRONT DAMPER (GS750ESD)

GS750E 1983 (D) USA (E03)

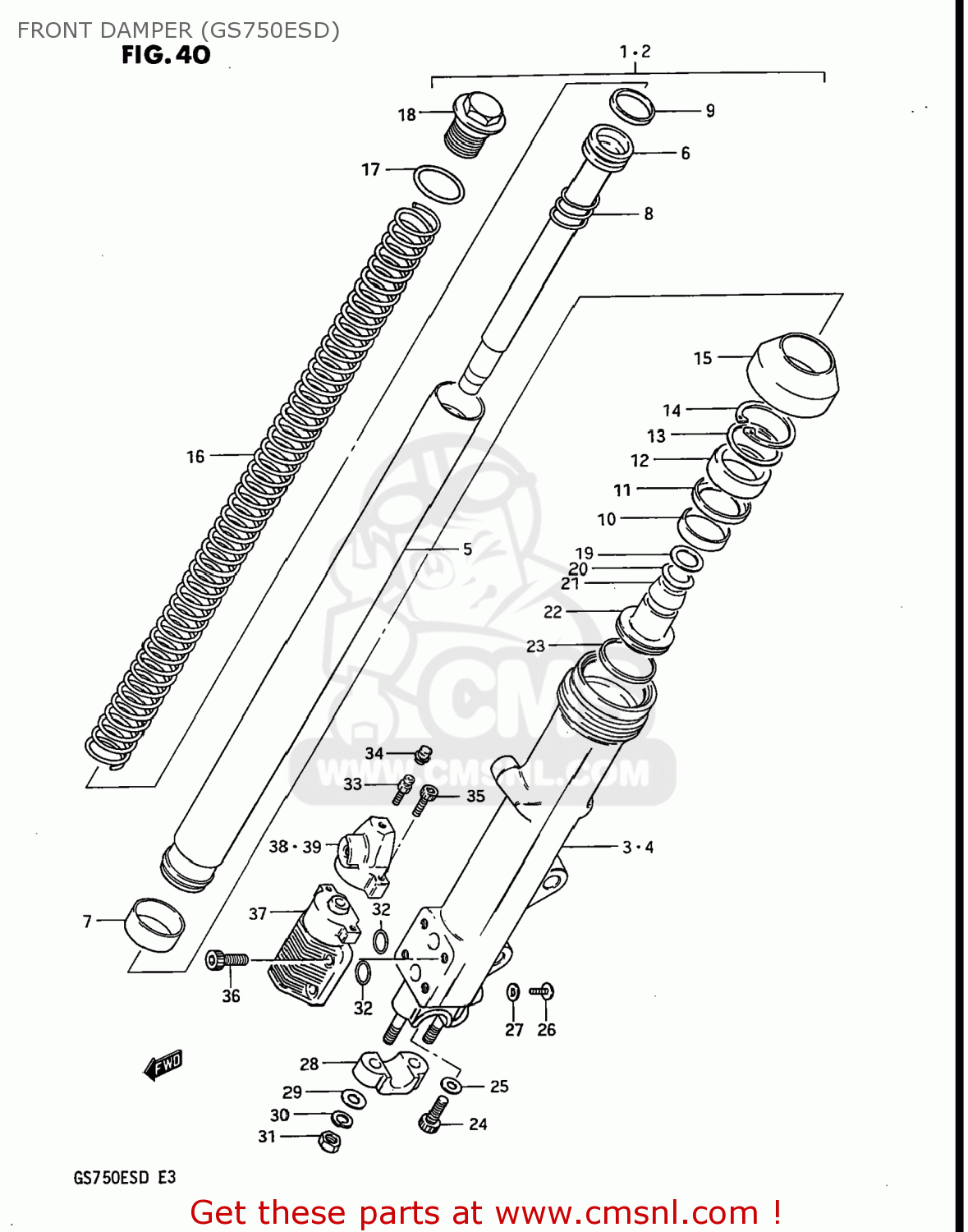

Front damper (gs750esd) diagram GS750E 1983 (D) USA (E03)

FRONT DAMPER (GS750ESD) GS750E 1983 (D) USA (E03)
FRONT DAMPER (GS750ESD) GS750E 1983 (D) USA (E03)
FRONT DAMPER (GS750ESD) GS750E 1983 (D) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5110331340
ref: 1
51103-31370
DAMPER ASSEMBLY,RIGHT
€ 335.50
2
5110431340
ref: 2
51104-31370
DAMPER ASSEMBLY,LEFT
€ 716.50
3
511303130015T
ref: 3
TUBE,OUTER,RIGHT
€ 255.00
4
511403130015T
ref: 4
TUBE,OUTER,LEFT
511403130015T
€ 127.50
5
5111031340
ref: 5
TUBE,INNER
€ 284.00
6
5114631300
ref: 6
51146-31305
CYLINDER,FRONT FORK
€ 29.00
7
5112131300
ref: 7
PISTON
5112131300
€ 18.50
8
5117734210
ref: 8
SPRING,FORK REBOUND
€ 7.00
9
5119634210
ref: 9
RING,PISTON
5119634210
€ 6.50
10
5115231300
ref: 10
BUSHING,GUIDE
5115231300
€ 22.50
11
5116834210
ref: 11
51168-38A00
SPACER,SEAL
€ 5.50
12
5115309310
ref: 12
51153-03B30
OIL SEAL,FRONT FORK
5115309310
€ 15.00
13
5115834320
ref: 13
RING,BACKUP
5115834320
€ 4.00
14
5155634320
ref: 14
CIRCLIP,INNTERNAL
5155634320
€ 7.00
15
5157145200
ref: 15
51571-34320
BOOT
€ 20.50
16
5117131300
ref: 16
SPRING
€ 43.00
17
5111745200
ref: 17
O RING
5111745200
€ 5.50
18
5135131300
ref: 18
CAP,FORK INNER TUBE
€ 20.00
19
5112634310
ref: 19
VALVE
5112634310
€ 2.50
20
5112734310
ref: 20
SPRING,VALVE
5112734310
€ 3.00
21
5112534310
ref: 21
VALVE,OIL LOCK PIEACE
€ 7.00
22
5119534370
ref: 22
PIECE,OIL LOCK
5119534370
€ 24.00
23
5112334320
ref: 23
RING,PISTON
5112334320
€ 14.50
24
5114748130
ref: 24
BOLT(8X27)
5114748130
€ 3.50
25
5114831030
ref: 25
51148-36011
GASKET (NAS)
5114831030
€ 4.00
26
0211204068
ref: 26
02112-0406B
SCREW 4X6
0211204068
€ 2.00
27
5118333030
ref: 27
GASKET (NAS)
5118333030
€ 6.50
27
5118333030
ref: 27
GASKET (NAS)
5118333030
€ 6.50
28
5113244040291
ref: 28
51132-44040-15T
HOLDER,AXLE
5113244040291
€ 38.50
29
0832221085
ref: 29
08322-0108A
WASHER
€ 1.50
30
0832121088
ref: 30
08321-01087
LOCK WASHER
0832121088
€ 2.00
31
0831011085
ref: 31
08310-0008A
NUT
€ 1.50
32
5179911420
ref: 32
09280-15007
O RING,FR FORK
€ 2.00
33
5177811420
ref: 33
BREATHER
5177811420
€ 8.50
34
5177911420
ref: 34
CAP
5177911420
€ 4.50
35
5179734310
ref: 35
07130-05167
BOLT
€ 2.50
36
5179634310
ref: 36
07130-0616B
BOLT
5179634310
€ 2.50
37
5179031300
ref: 37
VALVE SET,MODULATOR
5179031300
€ 210.50
38
5178031300
ref: 38
PLUNGER SET,MODULATOR,RIGHT
€ 92.00
39
5177031300
ref: 39
PLUNGER SET,MODULATOR,LEFT
€ 76.50
39
5177031300
ref: 39
PLUNGER SET,MODULATOR,LEFT
€ 76.50
