SIGNAL GENERATOR

GS750E 1983 (D) USA (E03)

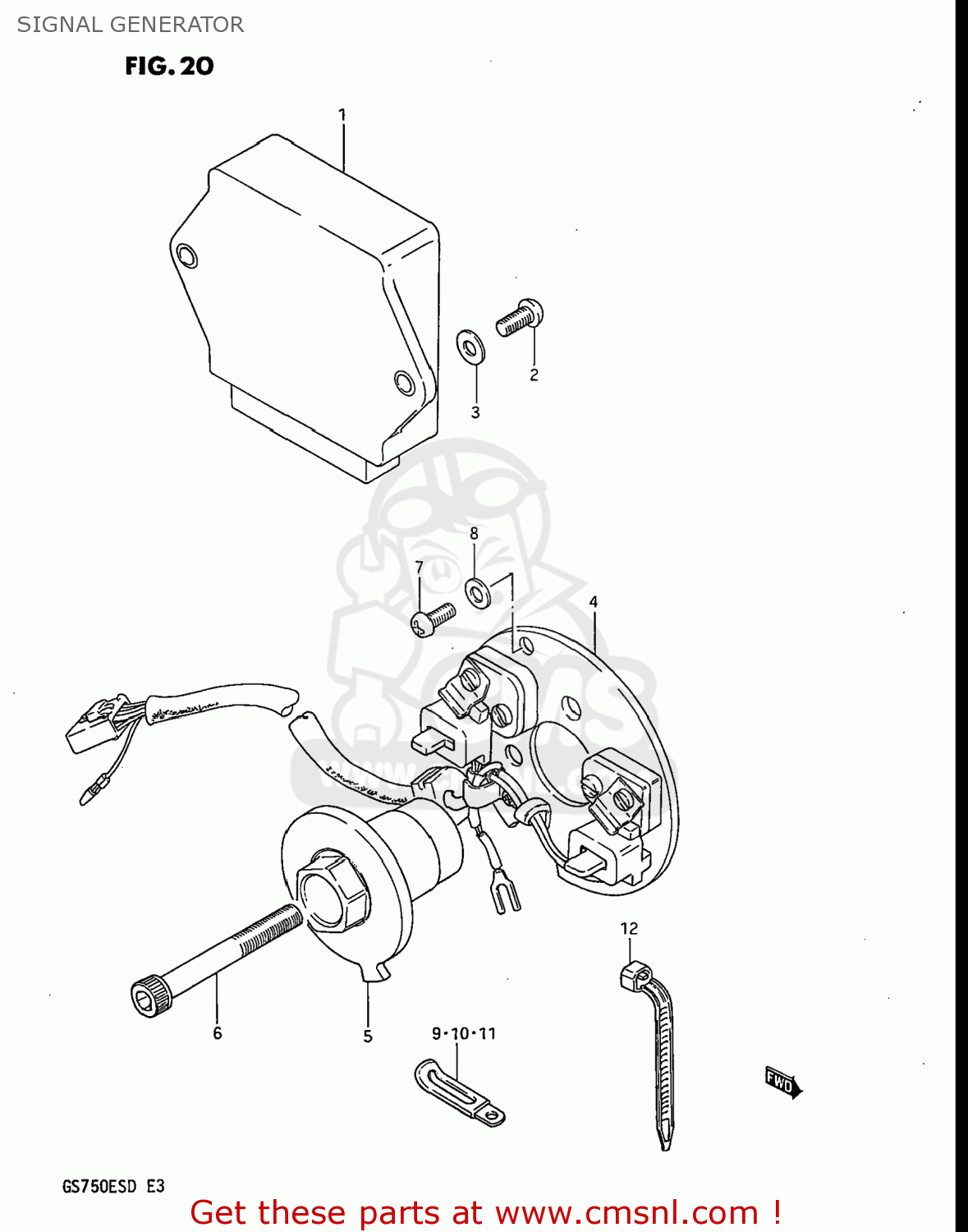

Signal generator diagram GS750E 1983 (D) USA (E03)

SIGNAL GENERATOR GS750E 1983 (D) USA (E03)

SIGNAL GENERATOR GS750E 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3290031310
ref: 1
32900-49420

IGNITER UNIT ASSEMBLY

€ 565.50

2

0211206128
ref: 2
02112-06127

SCREW 6X12

€ 2.00

3

0832221068
ref: 3
08322-01067

WASHER

€ 2.00

4

3311031310
ref: 4
33110-09X50

STATOR,SIGNAL GENERATOR

€ 262.50

5

3312031310
ref: 5

ROTOR,SIGNAL

€ 155.50

6

0910608018
ref: 6
07130-0845B

BOLT

€ 3.00

7

0912505024
ref: 7

SCREW(5X12)

€ 2.00

8

0916005027
ref: 8
08322-01057

WASHER

€ 2.50

9

0940406401
ref: 9
09404-06432

CLAMP L:35

€ 2.50

10

0940408401
ref: 10
09404-08420

CLAMP

€ 3.50

11

0940408402
ref: 11
09404-08420

CLAMP

€ 3.50

12

0940714403
ref: 12

CLAMP(L:125)

€ 2.50
