STEERING STEM (GS750ESD)
GS750E 1983 (D) USA (E03)

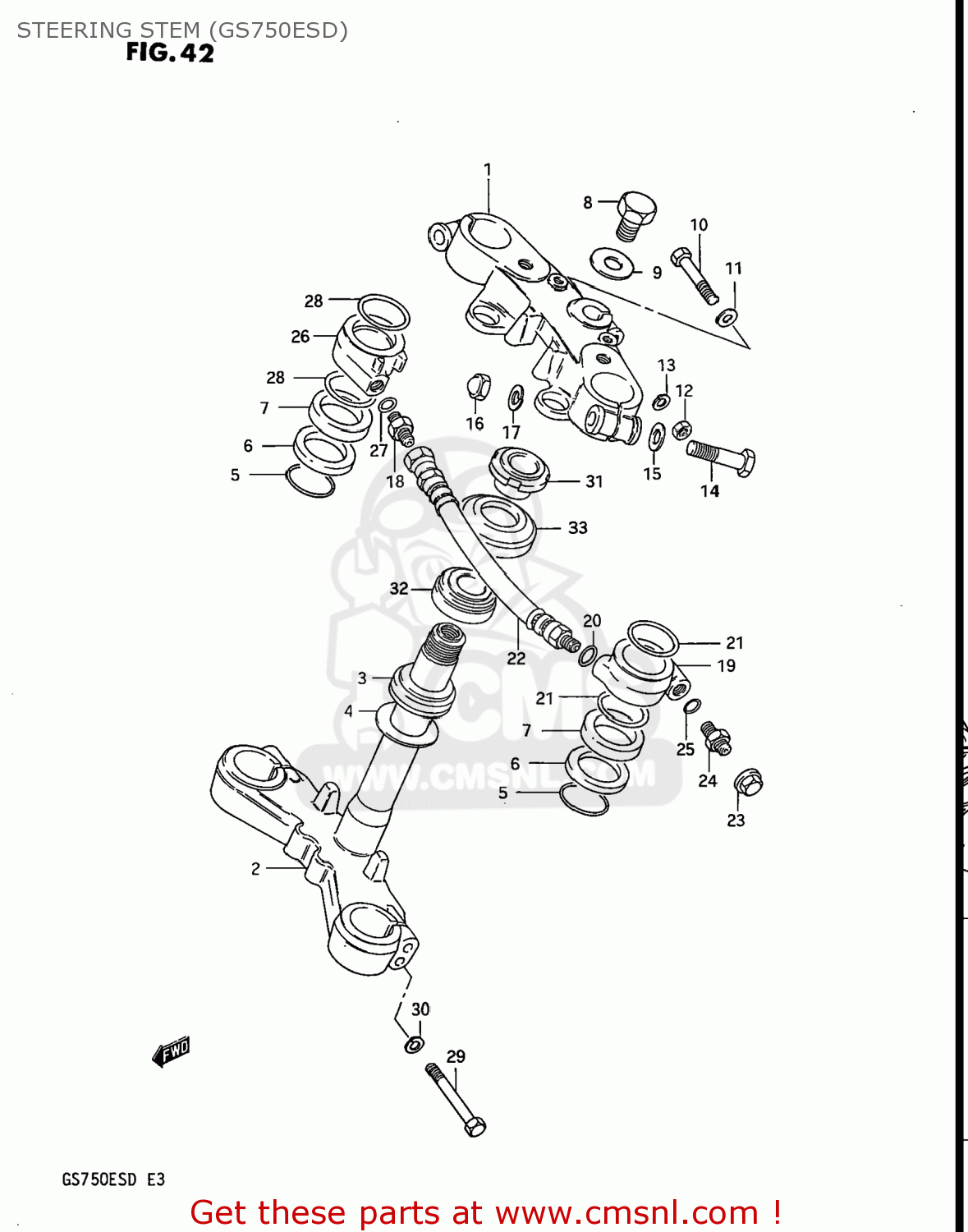

Steering stem (gs750esd) diagram GS750E 1983 (D) USA (E03)
STEERING STEM (GS750ESD) GS750E 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
513113130015T
ref: 1
HEAD,STEERING STEM
€ 162.50
2
514103130015T
ref: 2
51410-31330-15T
STEM,STEERING
€ 210.00
3
0926530005
ref: 3
09265-30009
BEARING
€ 49.50
4
0821130402
ref: 4
09181-30184
WASHER,THRUST
€ 4.00
5
5142431340
ref: 5
RING,STOPPER
€ 2.50
6
5155531340
ref: 6
WASHER
€ 3.50
7
5155331300
ref: 7
CUSHION
€ 3.00
8
5135209300
ref: 8
51352-31305
BOLT,STEERING STEM HEAD
€ 11.50
9
5135609300
ref: 9
51356-43530
WASHER
€ 4.00
10
0110708508
ref: 10
01500-08507
BOLT 8X50
€ 3.00
11
0832211088
ref: 11
08322-01087
WASHER
€ 2.00
12
0831022088
ref: 12
08310-00087
NUT 8MM
€ 2.00
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
14
0110710558
ref: 14
01500-1055A
BOLT 10X55
€ 3.50
15
0832221108
ref: 15
08322-01107
WASHER
€ 2.50
16
0914510002
ref: 16
NUT
€ 4.00
17
0832121108
ref: 17
08321-01107
LOCK WASHER
€ 2.00
18
5143733300
ref: 18
CONNECTOR
€ 7.50
19
514323130015T
ref: 19
51432-31301-15T
JOINT,AIR,LEFT
€ 39.50
20
5111745440
ref: 20
09280-06005
O-RING
€ 2.50
21
5135634370
ref: 21
O RING
€ 5.00
22
5143331300
ref: 22
TUBE,JOINT
€ 48.50
23
5129433300
ref: 23
51294-45440
CAP,FRONT FORK AIR VALVE
€ 9.50
24
5129345440
ref: 24
VALVE,AIR
€ 17.00
25
5111745440
ref: 25
09280-06005
O-RING
€ 2.50
26
514313130015T
ref: 26
51431-31301-15T
JOINT,AIR,RIGHT
€ 29.00
27
5111745440
ref: 27
09280-06005
O-RING
€ 2.50
28
5135634370
ref: 28
O RING
€ 5.00
29
0110708405
ref: 29
01500-0840A
BOLT 8X40
€ 3.00
30
0832121085
ref: 30
08321-0108A
LOCK WASHER
€ 2.50
31
5163134200
ref: 31
NUT,STEERING STEM
€ 23.00
32
0926525008
ref: 32
09265-25019
TAPER,ROLLER BEARING
€ 48.50
33
5164340502
ref: 33
DUST SEAL,STEERING UPR
€ 8.00
33
5164340502
ref: 33
DUST SEAL,STEERING UPR
€ 8.00
