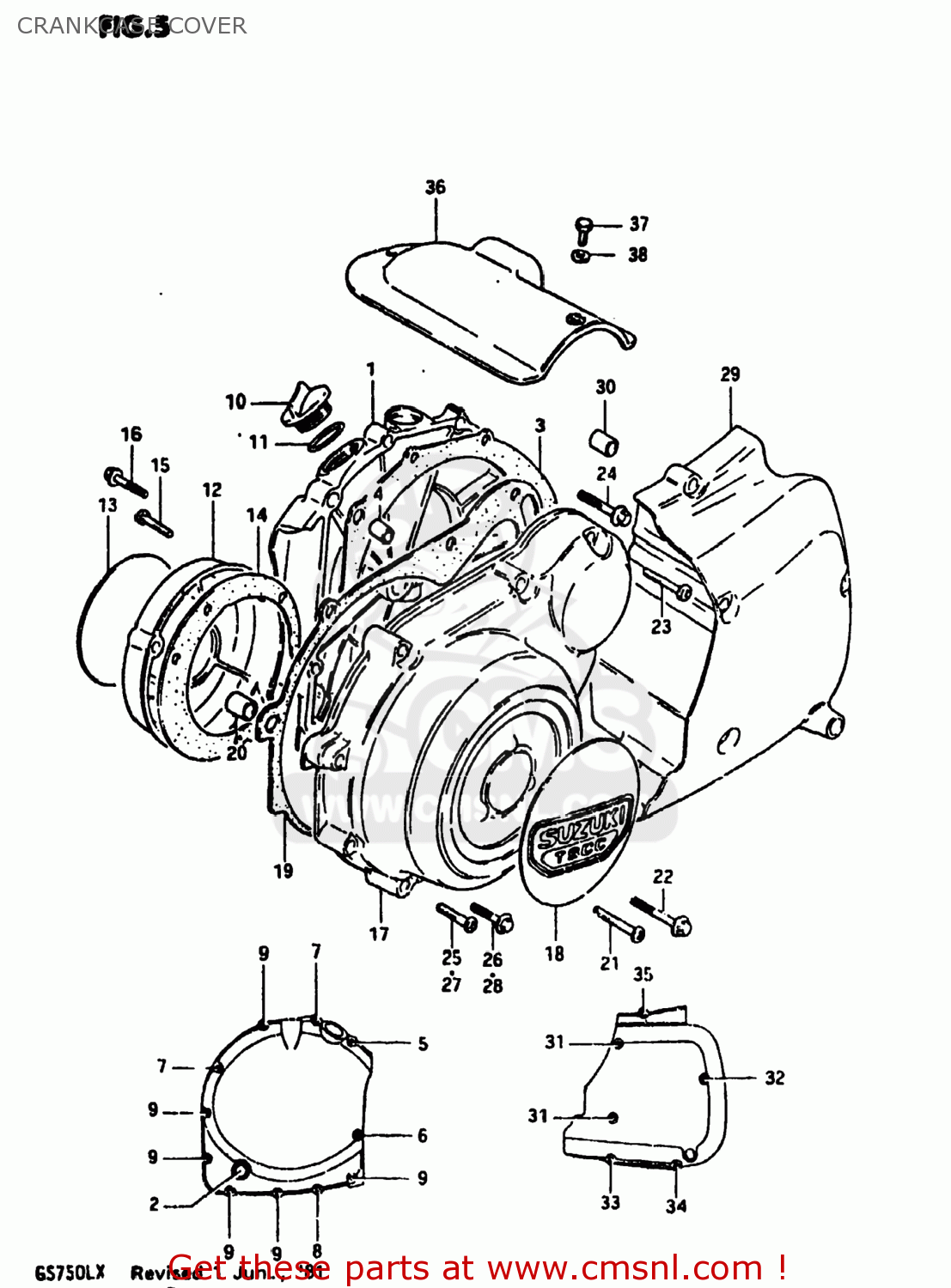

CRANKCASE COVER

ref

part #

description

quantity

1-1

1134045400
ref: 1-1
11340-45401

COVER,CLUTCH

€ 292.00

1-2

1134045401
ref: 1-2

COVER,CLUTCH

€ 292.00

2

1197145010
ref: 2

LENS,OIL LEVEL CHECK

€ 13.00

3

1148245400
ref: 3
11482-45400-H17

GASKET,CLUTCH COVER (MCA)

€ 20.00

4

0421109129
ref: 4

PIN

€ 2.00

5-1

0211206408
ref: 5-1
02112-06407

SCREW

€ 2.00

5-2

0154706408
ref: 5-2
01547-06407

BOLT (6X40)

€ 2.50

6-1

0211206358
ref: 6-1
02112-06357

SCREW (6X35)

€ 2.50

6-2

0154706358
ref: 6-2
01547-06357

BOLT (6X35)

€ 2.50

7-1

0211206308
ref: 7-1
02112-06307

SCREW 6X30

€ 2.50

7-2

0154706308
ref: 7-2
01547-06307

BOLT (6X30)

€ 2.50

8-1

0211206258
ref: 8-1
02112-06257

SCREW

€ 2.00

8-2

0154706258
ref: 8-2
01547-06257

BOLT

€ 2.50

9-1

0211206208
ref: 9-1
02112-06207

SCREW

€ 2.00

9-2

0154706208
ref: 9-2
01547-06207

BOLT (6X20)

€ 2.50

10

0925930001
ref: 10
09200-30810

CAP

€ 8.50

11

0928032005
ref: 11

O RING(D:2.2,ID:32)

€ 2.00

12-1

1138149200
ref: 12-1
11381-49202

COVER,CONTACT BREAKER

€ 49.00

12-2

1138149201
ref: 12-2
11381-49202

COVER,CONTACT BREAKER

€ 49.00

12-3

1138149202
ref: 12-3

COVER,CONTACT BREAKER

€ 49.00

13

6823549200
ref: 13

EMBLEM

€ 19.50

14

1149149200
ref: 14

GASKET,CONTACT BREAKER COVER (NAS)

€ 14.50

15

0211205308
ref: 15
02112-0530A

SCREW

€ 1.50

16

0154405308
ref: 16
01547-05307

BOLT (5*30)

€ 2.00

17-1

1135145400
ref: 17-1
11351-45401

COVER

€ 293.00

17-2

1135145401
ref: 17-2

COVER,MAGNETO

€ 293.00

18

6823349200
ref: 18

EMBLEM,MAGNETO COVER

€ 29.50

19

1148349200
ref: 19
11483-49210

GASKET,MAGNETO COVER (MCA)

€ 13.00

20

0920613001
ref: 20
04211-13189

PIN

€ 2.50

21

0211206458
ref: 21
02112-06457

SCREW (6X45)

€ 2.00

22

0154706458
ref: 22
01547-06457

BOLT

€ 2.50

23

0211206408
ref: 23
02112-06407

SCREW

€ 2.00

24

0154706408
ref: 24
01547-06407

BOLT (6X40)

€ 2.50

25

0211206358
ref: 25
02112-06357

SCREW (6X35)

€ 2.50

26

0154706358
ref: 26
01547-06357

BOLT (6X35)

€ 2.50

27

0211206308
ref: 27
02112-06307

SCREW 6X30

€ 2.50

28

0154706308
ref: 28
01547-06307

BOLT (6X30)

€ 2.50

29-1

1136049200
ref: 29-1
11360-49201

COVER,SPROCKET

€ 127.00

29-2

1136049201
ref: 29-2

COVER,ENGINE SPROCKET

€ 127.00

30

0421109129
ref: 30

PIN

€ 2.00

31-1

0211206958
ref: 31-1
02112-0695B

SCREW (6*95)

€ 2.50

31-2

0154706958
ref: 31-2
01547-06957

BOLT 6X95

€ 4.00

32-1

0211206858
ref: 32-1
02112-06857

SCREW 6X85

€ 2.50

32-2

0154706858
ref: 32-2
01547-06857

BOLT (6X85)

€ 2.50

33-1

0211206708
ref: 33-1
02112-06707

SCREW 6X70

€ 3.00

33-2

0154706708
ref: 33-2
01547-06707

BOLT (6X70)

€ 2.50

34-1

0211206557
ref: 34-1

SCREW

€ 2.50

34-2

0154706558
ref: 34-2
01547-06557

BOLT (6X55)

€ 2.50

35-1

0211206308
ref: 35-1
02112-06307

SCREW 6X30

€ 2.50

35-2

0154706308
ref: 35-2
01547-06307

BOLT (6X30)

€ 2.50

36

1138249002
ref: 36

COVER,STARTER MOTOR

€ 43.00

37

0110405108
ref: 37
01500-0510B

BOLT

€ 1.50

38

0832221058
ref: 38
08322-01057

WASHER

€ 2.50
