CYLINDER

GS750L 1980 (T) USA (E03)

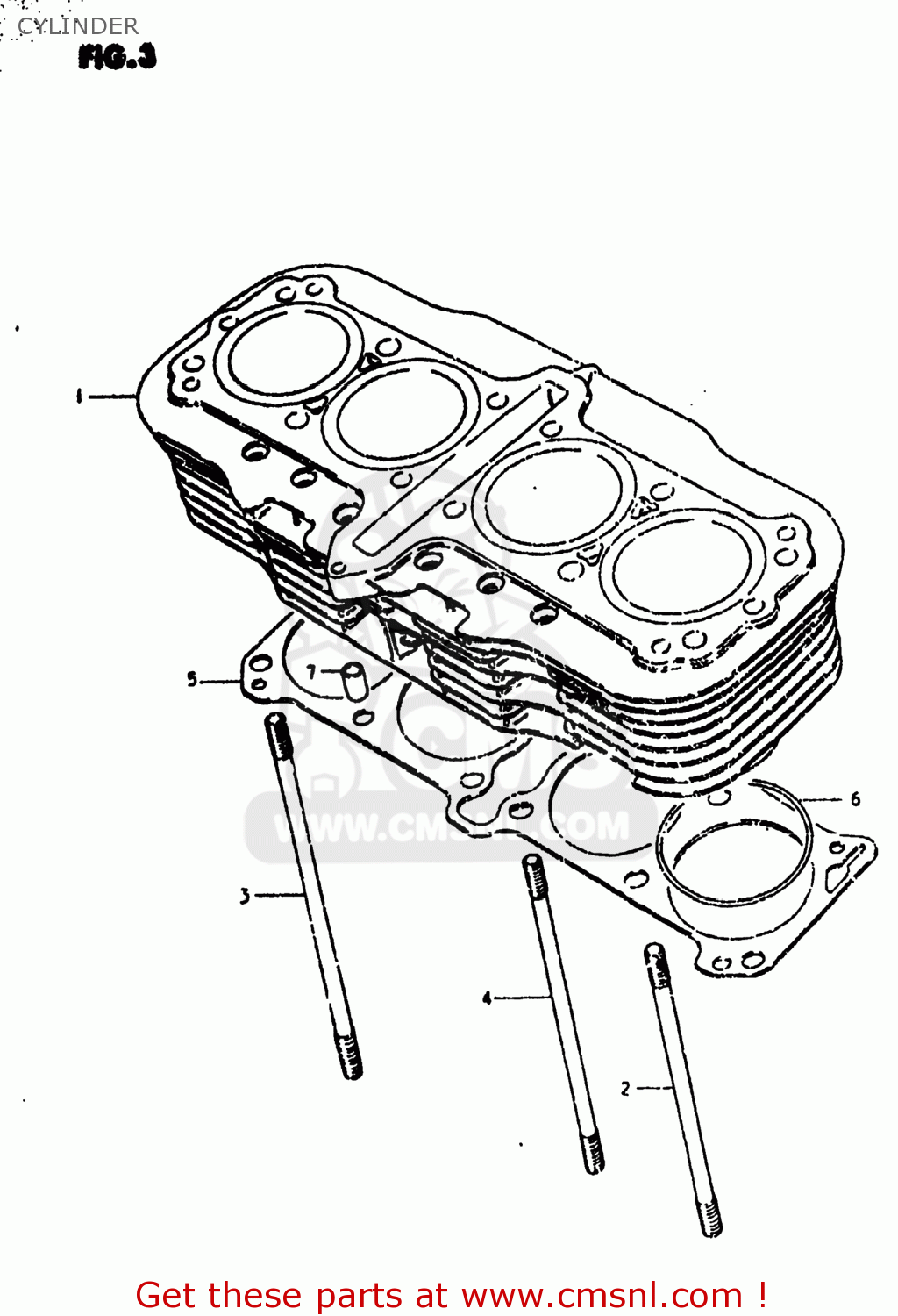

Cylinder diagram GS750L 1980 (T) USA (E03)

CYLINDER GS750L 1980 (T) USA (E03)

CYLINDER GS750L 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121045400
ref: 1
11210-45420

CYLINDER

€ 785.50

2

0910810032
ref: 2

STUD

€ 5.50

3

0910810034
ref: 3
09108-10069

STUD

€ 7.00

4

0910810033
ref: 4
09108-10096

STUD

€ 12.50

5

1124145400
ref: 5
11241-45401-H17

GASKET,CYLINDER (MCA)

€ 23.50

6

0928070001
ref: 6

O RING(D:2,ID:70)

€ 7.50

7

0920613008
ref: 7
09206-13017

PIN

€ 9.00
