CARBURETOR
GS850G 1979 (N) USA (E03)

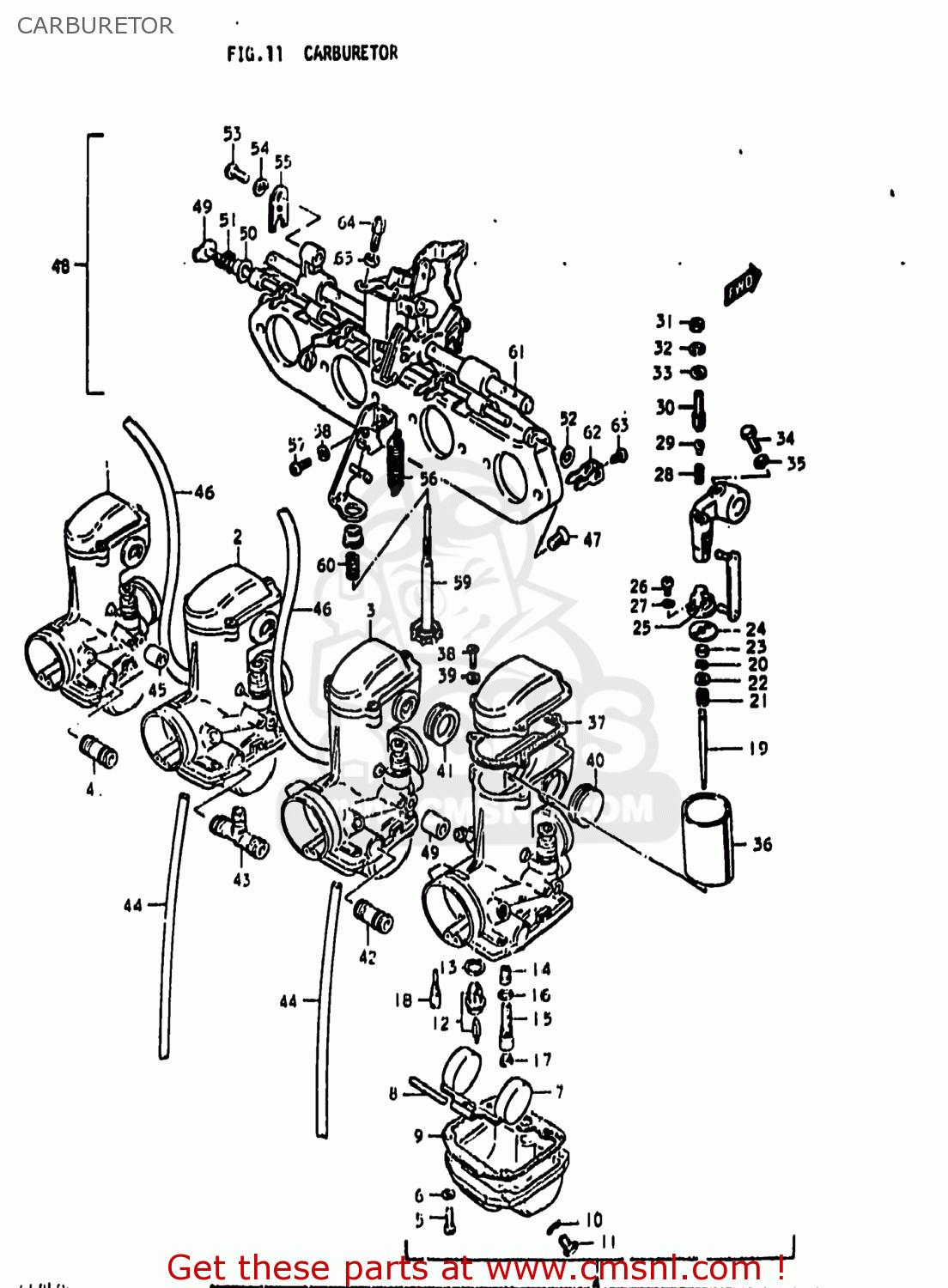

Carburetor diagram GS850G 1979 (N) USA (E03)
CARBURETOR GS850G 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
1320045100
ref: 0
CARBURETOR ASSEMBLY
€ 393.00
1
1320145100
ref: 1
CARBURETOR ASSEMBLY
€ 68.00
2
1320245100
ref: 2
CARBURETOR ASSEMBLY
€ 76.00
3
1320345100
ref: 3
CARBURETOR ASSEMBLY
€ 71.00
4
1320445100
ref: 4
CARBURETOR ASSEMBLY
€ 71.00
5
0211204168
ref: 5
02112-0416A
SCREW
€ 1.00
6
0832121048
ref: 6
08321-0104A
LOCK WASHER
€ 2.00
7
1325243010
ref: 7
FLOAT
€ 41.00
8
1325401010
ref: 8
PIN,FLOAT
€ 3.00
9
1325143011
ref: 9
13251-43010
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
10
1324643010
ref: 10
O RING
€ 4.00
11
1324745010
ref: 11
SCREW
€ 7.50
12
1337045010
ref: 12
13370-18111
VALVE ASSEMBLY,NEEDLE
€ 51.50
13
1339258600
ref: 13
GASKET,VALVE SEAT (NAS)
€ 2.00
14
0949400208
ref: 14
JET,NEEDLE
€ 12.50
15
1338545010
ref: 15
PIPE,BLEEDER
€ 36.00
16
1324643010
ref: 16
O RING
€ 4.00
17
0949120012
ref: 17
JET,MAIN(102.5)
€ 8.50
18
0949215005
ref: 18
JET,PILOT
€ 15.00
19
1338345030
ref: 19
NEEDLE,JET
€ 19.50
20
1339410010
ref: 20
CLIP
€ 4.50
21
1338847010
ref: 21
SPRING
€ 7.00
22
1338247010
ref: 22
WASHER,JET NEEDLE
€ 3.00
23
1338747010
ref: 23
RING
€ 7.50
24
1358147010
ref: 24
PLATE,THROTTLE VALVE
€ 5.50
25
1339845010
ref: 25
CONNECTOR
€ 18.00
26
0211103148
ref: 26
02112-0316B
SCREW
€ 1.50
27
0832121038
ref: 27
09162-03001
LOCK WASHER
€ 1.50
28
1354345010
ref: 28
SPRING
€ 2.50
29
1354443010
ref: 29
PIN,CARBURETOR
€ 2.50
30
1354845010
ref: 30
SCREW
€ 10.00
31
0831011058
ref: 31
08310-00057
NUT
€ 2.50
32
0832121058
ref: 32
08321-0105A
LOCK WASHER
€ 2.00
33
0832221058
ref: 33
08322-01057
WASHER
€ 2.50
34
0110405168
ref: 34
01500-0516B
BOLT
€ 1.50
35
0832121058
ref: 35
08321-0105A
LOCK WASHER
€ 2.00
36
1355145030
ref: 36
VALVE,THROTTLE
€ 39.00
37
1326643010
ref: 37
GASKET (NAS)
€ 7.00
38
0211204168
ref: 38
02112-0416A
SCREW
€ 1.00
39
0832121048
ref: 39
08321-0104A
LOCK WASHER
€ 2.00
40
1367843010
ref: 40
PIPE,DELIVERY
€ 4.50
41
1355645010
ref: 41
SEAL
€ 15.50
42
1368545030
ref: 42
NIPPLE
€ 24.50
43
1368545040
ref: 43
NIPPLE
€ 28.00
44
1368345070
ref: 44
HOSE
€ 10.00
45
1368333110
ref: 45
09352-60103-600
HOSE
€ 18.00
46
1368345050
ref: 46
09355-45855-600
HOSE 4.5X8X390
€ 14.00
47
0212206148
ref: 47
09126-06007
SCREW
€ 2.50
48
1321045050
ref: 48
CARBURETOR ASSEMBLY
€ 0.00
49
1341049020
ref: 49
SHAFT,STARTER
€ 0.00
50
1343249020
ref: 50
WASHER
€ 3.00
51
1343749020
ref: 51
SPRING
€ 1.50
52
1361545010
ref: 52
WASHER,STARTER SHAFT
€ 3.50
53
0211205168
ref: 53
02112-05167
SCREW
€ 2.50
54
0832121058
ref: 54
08321-0105A
LOCK WASHER
€ 2.00
55
1355733110
ref: 55
GASKET
€ 3.50
56
1357345010
ref: 56
SPRING,THROTTLE RETURN
€ 23.00
57
0211205168
ref: 57
02112-05167
SCREW
€ 2.50
58
0832121058
ref: 58
08321-0105A
LOCK WASHER
€ 2.00
59
1326745010
ref: 59
13267-47030
ADJUSTER
€ 10.00
60
1326833110
ref: 60
SPRING,THROTTLE SCREW
€ 4.00
61
1355043010
ref: 61
SHAFT ASSEMBLY
€ 44.50
62
1342245030
ref: 62
LEVER,STARTER
€ 6.00
63
1360531210
ref: 63
SCREW
€ 3.00
64
1357748110
ref: 64
ADJUSTER,CABLE
€ 8.00
65
1366116600
ref: 65
NUT
€ 5.00
