CYLINDER

GS850G 1979 (N) USA (E03)

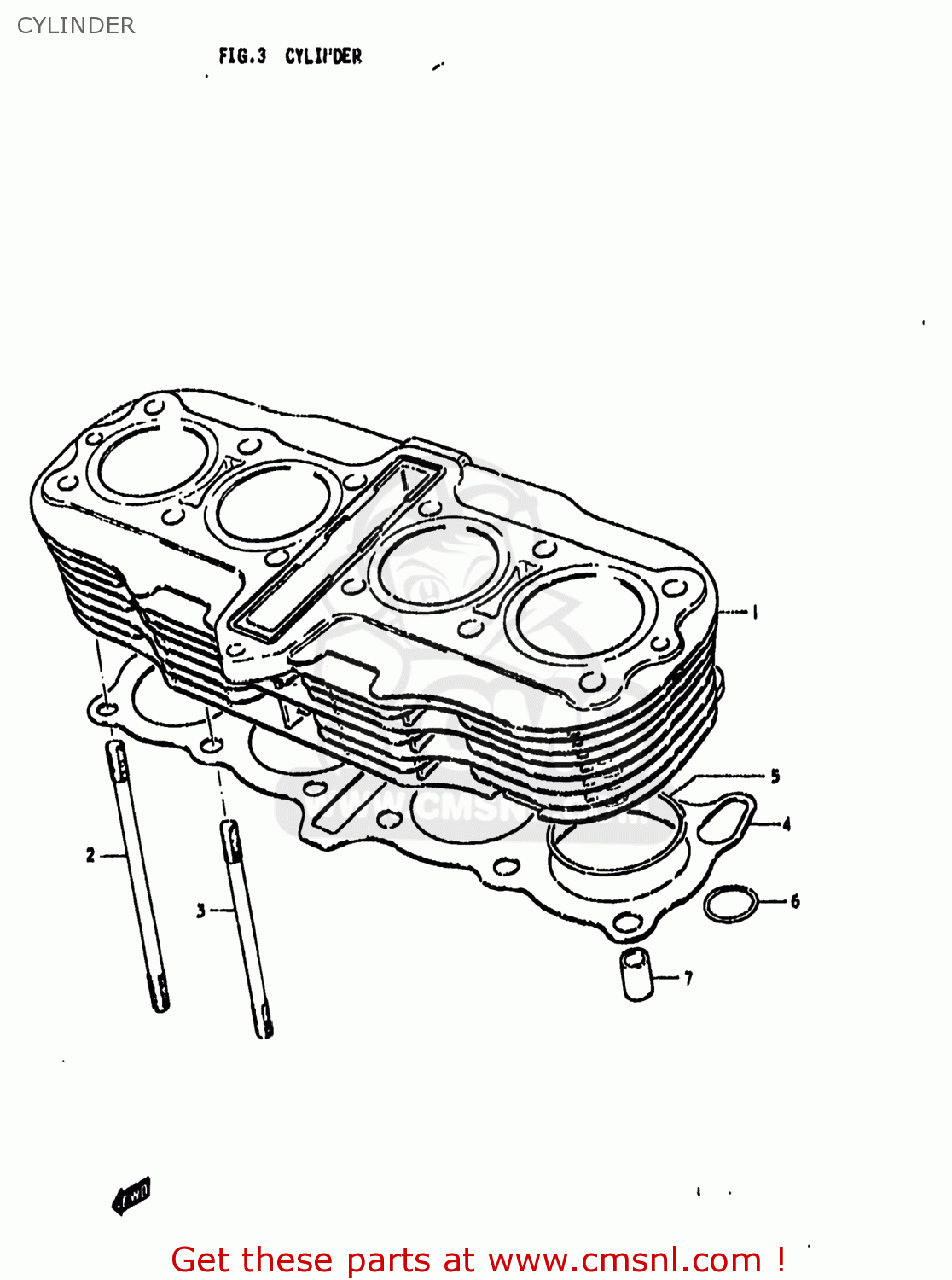

Cylinder diagram GS850G 1979 (N) USA (E03)

CYLINDER GS850G 1979 (N) USA (E03)

CYLINDER GS850G 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121045100
ref: 1

CYLINDER

€ 0.00

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810028
ref: 3
09108-10112

STUD

€ 9.00

4

1124145040
ref: 4
11241-45110-H17

GASKET,CYLINDER (MCA)

€ 12.50

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50

6

0928021004
ref: 6

O RING(D:3.05)

€ 4.00

7

0920613001
ref: 7
04211-13189

PIN

€ 2.50
