HANDLEBAR-FRONT FENDER
GS850G 1979 (N) USA (E03)

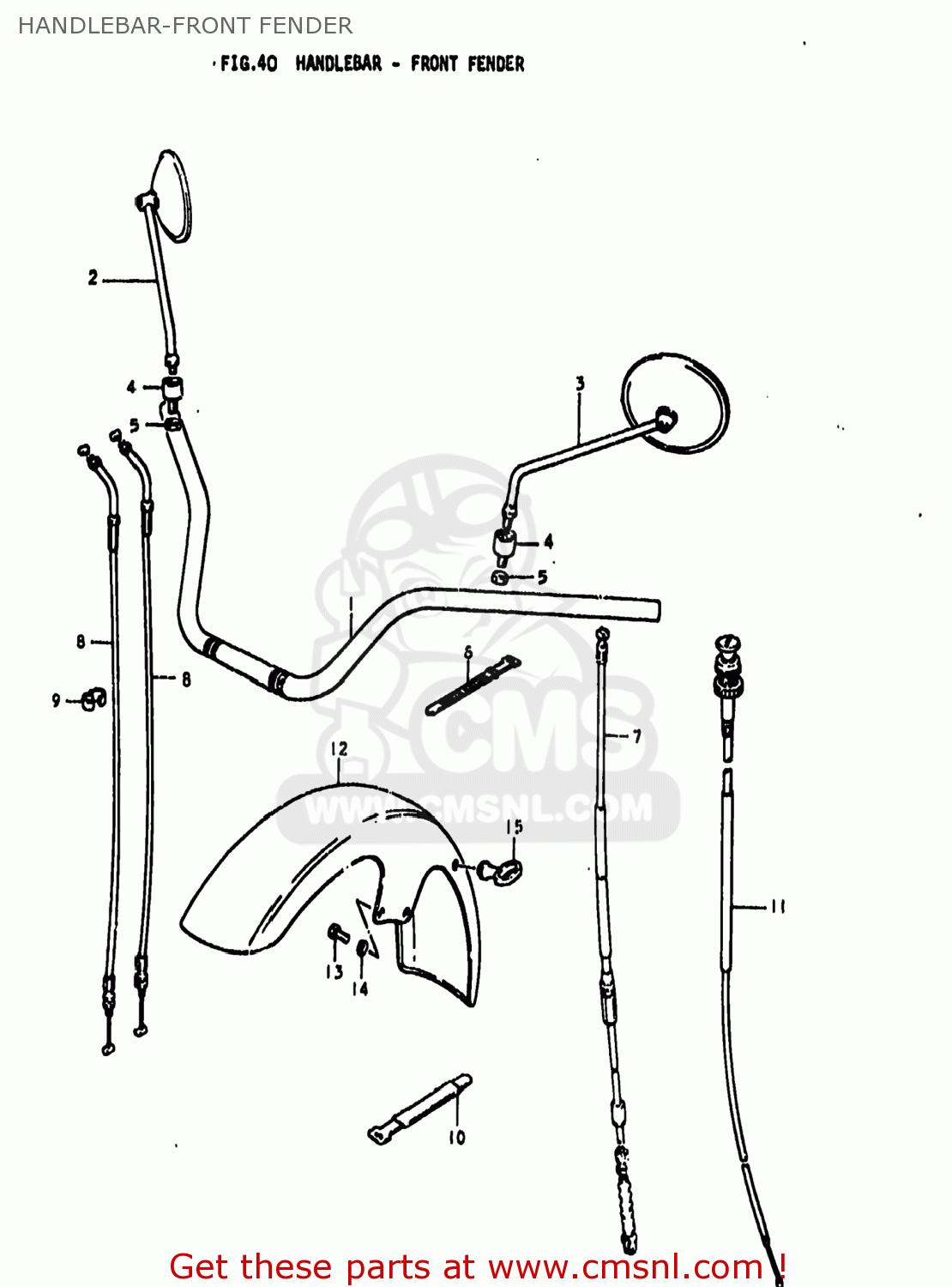

Handlebar-front fender diagram GS850G 1979 (N) USA (E03)
HANDLEBAR-FRONT FENDER GS850G 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611045110
ref: 1
56110-45400
HANDLEBAR
€ 81.50
2
5650045100
ref: 2
56500-38AB1
MIRROR ASSEMBLY,RIGHT
€ 209.00
3
5660045100
ref: 3
56500-38AB1
MIRROR ASSEMBLY,LEFT
€ 209.00
4
5670031001
ref: 4
56700-45400
CUSHION,REAR VIEW MIRROR
€ 18.00
5
0831022108
ref: 5
08310-00107
NUT
€ 2.50
6
0940712402
ref: 6
CLAMP(L:120)
€ 3.00
7
5820045110
ref: 7
CABLE ASSY,CLUTCH
€ 48.00
8
5830045610
ref: 8
CABLE ASSY,THROTTLE
€ 40.00
9
0940800002
ref: 9
CLIP
€ 2.00
10
0940300069
ref: 10
CLAMP
€ 8.50
11
5840045100
ref: 11
CABLE ASSY,STARTER
€ 25.00
12
5311049011
ref: 12
FENDER,FR
€ 367.50
13
0110708168
ref: 13
01500-0816B
BOLT
€ 2.00
14
0832121088
ref: 14
08321-01087
LOCK WASHER
€ 2.00
15
5862121203
ref: 15
58621-21204
GUIDE,CABLE
€ 7.50
