FRONT DAMPER (GSF1200SAV/SAW/SAX)

GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

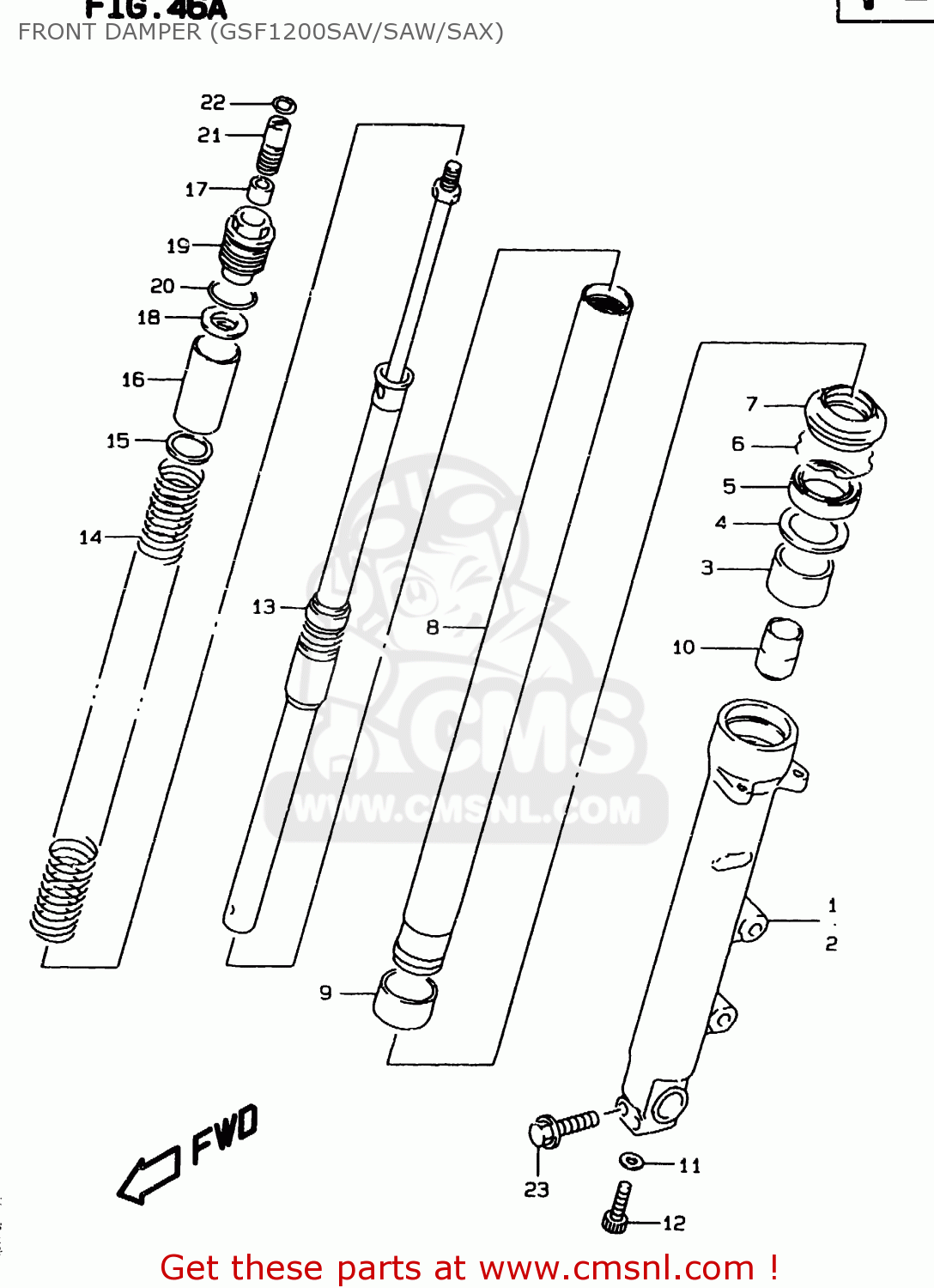

Front damper (gsf1200sav/saw/sax) diagram GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

FRONT DAMPER (GSF1200SAV/SAW/SAX) GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

FRONT DAMPER (GSF1200SAV/SAW/SAX) GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

0

5110327E40
ref: 0

DAMPER ASSY,FR FORK,R

€ 711.50

0

5110427E10
ref: 0

DAMPER ASSY,FR FORK,L

€ 688.00

1

5113027E40
ref: 1

TUBE,OUTER,R

€ 491.50

2

5114027E00
ref: 2

TUBE,OUTER,L

€ 454.50

3

5115231E00
ref: 3

BUSH,GUIDE

€ 19.00

4

5116817C00
ref: 4

SPACER,SEAL

€ 5.00

5

5115314D00
ref: 5

SEAL,OIL

€ 20.50

6

5155638B00
ref: 6

CIRCLIP,FORK OIL SEAL

€ 4.50

7

5117329E00
ref: 7

SEAL,DUST

€ 23.00

8

5111027E00
ref: 8

TUBE,INNER

€ 531.50

9

5112117C00
ref: 9

BUSH,SLIDE

€ 20.50

10

5119531E00
ref: 10

PIECE,OIL LOCK

€ 25.00

11

5114836011
ref: 11

GASKET (NAS)

€ 4.00

12

5114748130
ref: 12

BOLT(8X27)

€ 3.50

13

5211027E10
ref: 13

ROD,FR DAMPER

€ 448.50

14

5117127E10
ref: 14

SPRING,FR

€ 79.50

15

5118617C00
ref: 15

SEAT,SPRING LWR

€ 4.50

16

5117617C00
ref: 16

COLLAR,SPRING(35X37X50)

€ 9.50

17

5182727E00
ref: 17

NUT

€ 6.50

18

5117217C00
ref: 18

SEAT,SPRING UPR

€ 11.50

19

5118914D00
ref: 19

BOLT,FORK

€ 62.50

20

0928014011
ref: 20

O RING(D:2.5,ID:13.8)

€ 3.50

21

5118531E00
ref: 21

ADJUSTER,SPRING

€ 62.50

22

0928014011
ref: 22

O RING(D:2.5,ID:13.8)

€ 3.50

23

0155008457
ref: 23

BOLT

€ 4.00
