HANDLE LEVER

GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

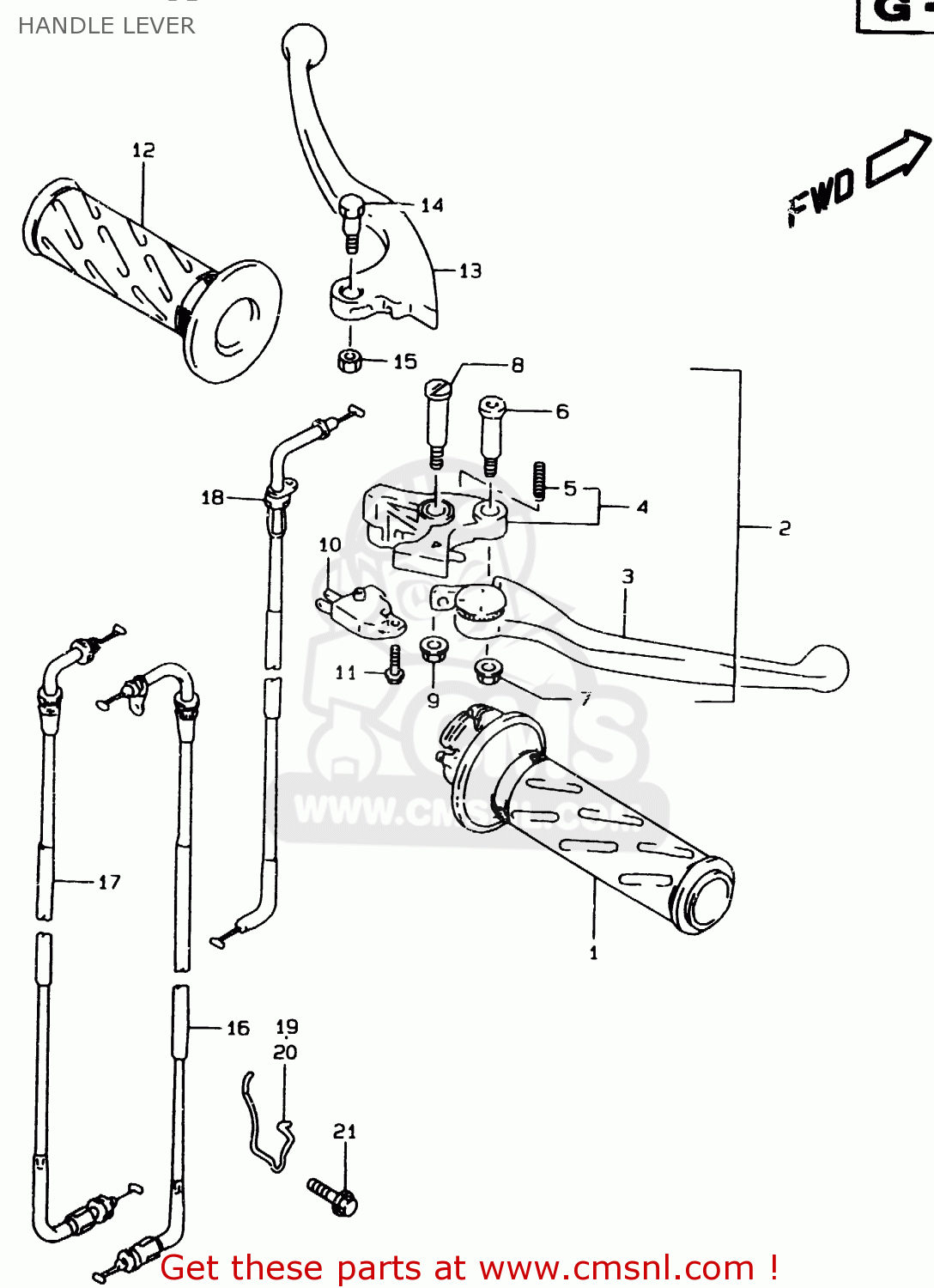

Handle lever diagram GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

HANDLE LEVER GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

HANDLE LEVER GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

5711046E01
ref: 1

GRIP,THROTTLE

€ 26.00

2

5730040C01
ref: 2
MODEL T/V

LEVER ASSEMBLY,BRAKE

€ 75.00

2

5730040C10
ref: 2
MODEL W/X

LEVER ASSY,BRAKE

€ 75.00

3

5742032C00
ref: 3

LEVER,ADJUST

€ 39.50

4

5743040C00
ref: 4
MODEL T/V

KNOCKER

€ 51.00

4

5743040C10
ref: 4
MODEL W/X

RNOCKER

€ 51.00

5

5743832C00
ref: 5

SPRING

€ 4.00

6

5743732C01
ref: 6

BOLT,LEVER

€ 6.50

7

0831931063
ref: 7

NUT

€ 2.50

8

5743117C00
ref: 8

BOLT,LEVER PIVOT

€ 8.00

9

0831610063
ref: 9

NUT

€ 2.50

10

5746017C00
ref: 10

SWITCH ASSEMBLY,STOP

€ 32.50

11

5746517C00
ref: 11

SCREW

€ 1.50

12

5721122D01
ref: 12

GRIP,LEFT

€ 11.50

13

5762138A02
ref: 13

LEVER,CLUTCH (SILVER)

€ 31.50

14

5743105A00
ref: 14

BOLT,LEVER

€ 8.50

15

0831921063
ref: 15

NUT

€ 2.50

16

5830027E00
ref: 16

CABLE ASSY,THROTTLE NO.1

€ 54.00

17

5830027E10
ref: 17

CABLE ASSY,THROTTLE NO.2

€ 49.00

18

5841027E10
ref: 18
MODEL T/V/W

CABLE,STARTER

€ 45.00

18

5841027E11
ref: 18
MODEL X

CABLE,STARTER

€ 45.00

19

5862127E00
ref: 19

GUIDE,CABLE NO.1

€ 10.00

20

5862227E00
ref: 20

GUIDE,CABLE NO.2

€ 6.00

21

0155006163
ref: 21

BOLT

€ 2.50
