REAR WHEEL (GSF1200SAV/SAW/SAX)

GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

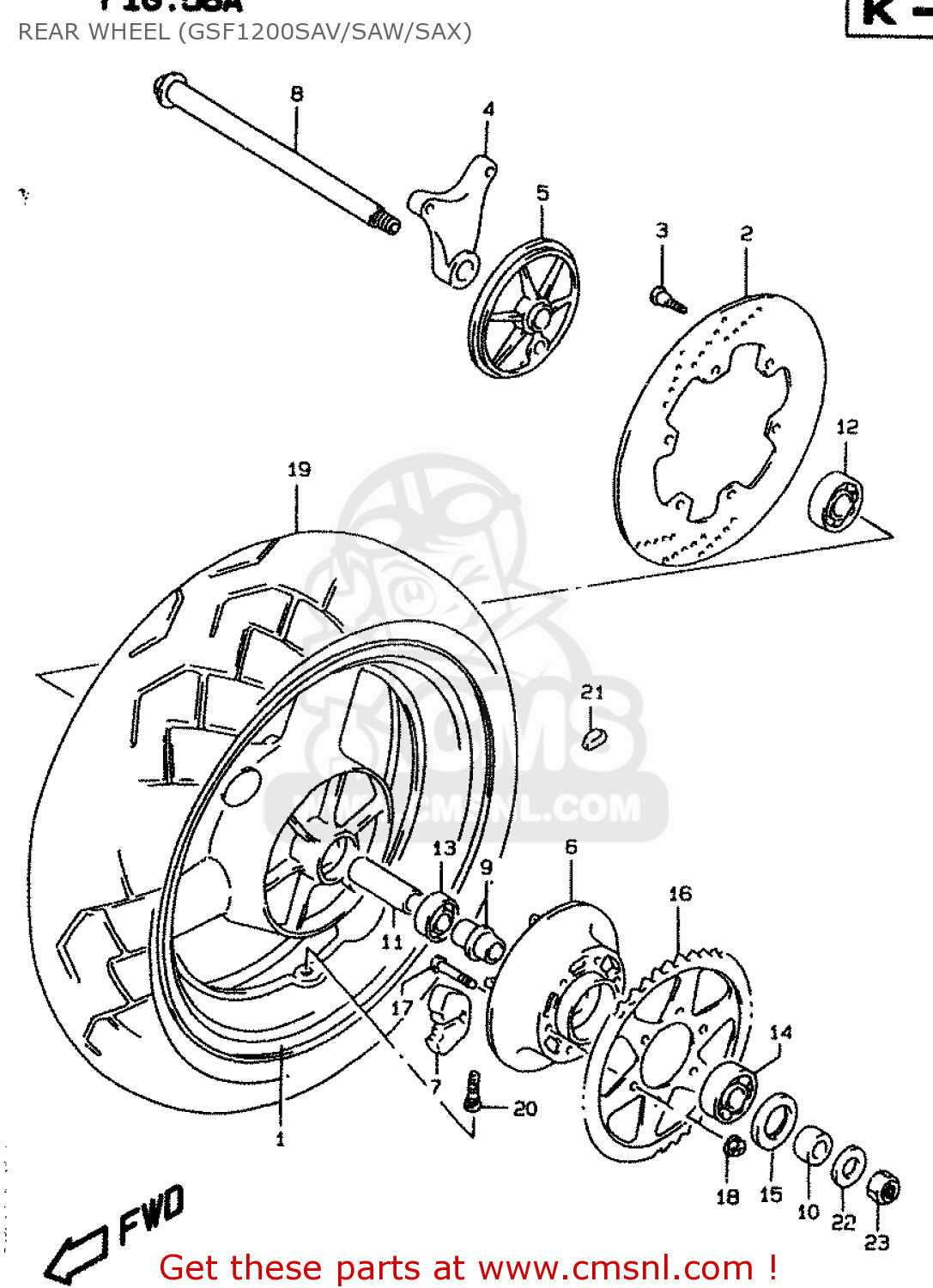

Rear wheel (gsf1200sav/saw/sax) diagram GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

REAR WHEEL (GSF1200SAV/SAW/SAX) GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

REAR WHEEL (GSF1200SAV/SAW/SAX) GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

641002781035W
ref: 1

WHEEL SET,REAR (17XMT5)

€ 807.00

2

6921127E50
ref: 2

DISC,RR BRAKE

€ 261.00

3

0910608125
ref: 3

BOLT 8X33

€ 6.00

4

6972127E50
ref: 4

BRACKET,RR CALIPER

€ 94.50

5

6572027E50
ref: 5

PANEL,SPEED SENSOR RR

€ 283.50

6

6461046E10
ref: 6

DRUM,RR SPROCKET

€ 198.00

7

6465117E00
ref: 7

ABSORBER,RR HUB SHOCK

€ 12.50

8

6471117E30
ref: 8

AXLE,RR

€ 103.00

9

6473348B00
ref: 9

RETAINER,RR HUB BEARING

€ 25.50

10

6475146E00
ref: 10

SPACER,RR AXLE,L

€ 21.50

11

6473140C00
ref: 11

SPACER,RR WHEEL HUB BEARING

€ 38.00

12

0926220114
ref: 12

BEARING(20X47X14)

€ 26.50

13

0926220042
ref: 13

BEARING(20X47X14)

€ 21.00

14

0926225114
ref: 14

BEARING(25X62X17)

€ 45.00

15

0928535001
ref: 15

SEAL,OIL(35X62X8)

€ 9.00

16

6451127E00
ref: 16

SPROCKET,RR(NT:45-530)

€ 118.00

17

0911910037
ref: 17

BOLT

€ 6.00

18

0831931107
ref: 18

NUT

€ 3.00

19

6511027E30
ref: 19

TIRE,RR(180/55 ZR17 73W)

€ 0.00

20

4313024A00
ref: 20

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

21

5541100A00
ref: 21

BALANCER,WHEEL (10G)

€ 6.50

21

5541200A01
ref: 21

BALANCER,WHEEL (20G)

€ 7.00

22

0916018030
ref: 22

WASHER(18.5X28X2.6)

€ 2.50

23

0915918007
ref: 23

NUT

€ 14.00
