TURNSIGNAL LAMP

GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

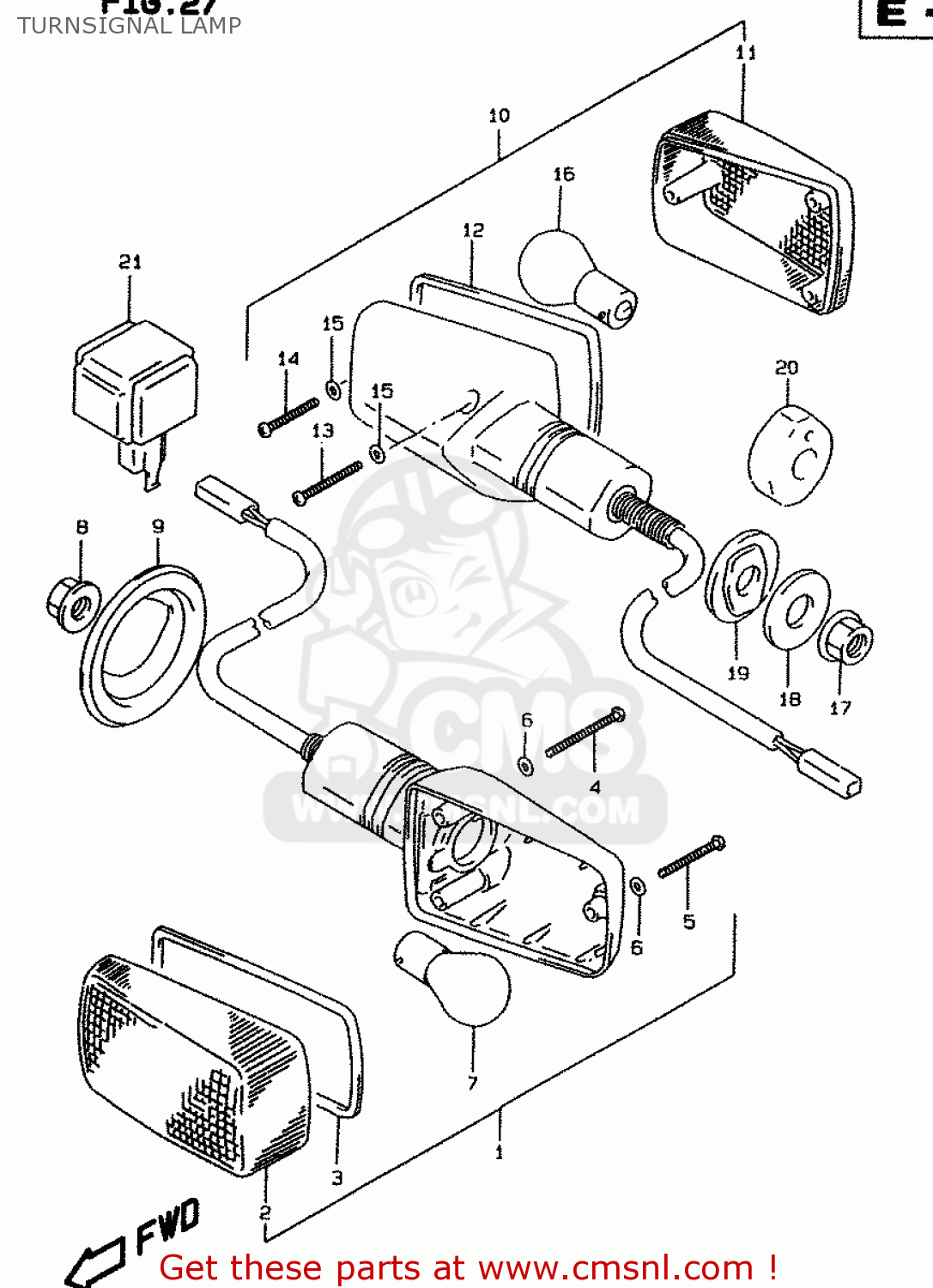

Turnsignal lamp diagram GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

TURNSIGNAL LAMP GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

TURNSIGNAL LAMP GSF1200S 1997 (V) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3560129EC0
ref: 1

LAMP ASSY,FR TURN SIGNAL

€ 78.00

2

3561217C20
ref: 2

LENS

€ 6.50

3

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

4

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

5

3572540511
ref: 5

SCREW

€ 1.50

6

3562727A02
ref: 6

GASKET (NAS)

€ 1.50

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8

0831610103
ref: 8

NUT

€ 2.00

9

3567427A01
ref: 9
GSF1200ST/SV/SW/SX/S

GROMMET

€ 13.50

10

3560321E30
ref: 10

LAMP ASSY,RR TURNSIGNAL

€ 135.50

10

3560326EC0
ref: 10
E17

LAMP ASSY,RR TURNSIGNAL

€ 92.50

10

3560321EC0
ref: 10
E18

LAMP ASSY,RR TURNSIGNAL

€ 93.50

11

3565217C20
ref: 11

LENS

€ 6.50

12

3561327A00
ref: 12

GASKET (NAS)

€ 3.00

13

3562327A00
ref: 13

SCREW(3X30)

€ 1.50

14

3572540511
ref: 14

SCREW

€ 1.50

15

3562727A02
ref: 15

GASKET (NAS)

€ 1.50

16

0947112045
ref: 16

BULB(12V21W)

€ 5.00

17

0831000103
ref: 17

NUT

€ 2.00

18

0916010501
ref: 18

WASHER(10.5X30X2.3)

€ 2.50

19

3569517C00
ref: 19

SPACER,RR TURNSIGNAL

€ 3.00

20

3569503D40
ref: 20
E17

SPACER,FR TURNSIGNAL LAMP

€ 9.00

21

3861045D01
ref: 21
~F.NO.517782

RELAY ASSY,TURNSIGNAL LAMP

€ 68.50

21

3861026E00
ref: 21
F.NO.517783~

RELAY ASSY

€ 47.00

all assemblies
