CARBURETOR FITTINGS (MODEL S)

GSF600SU 1998 (W) GERMANY (E22)

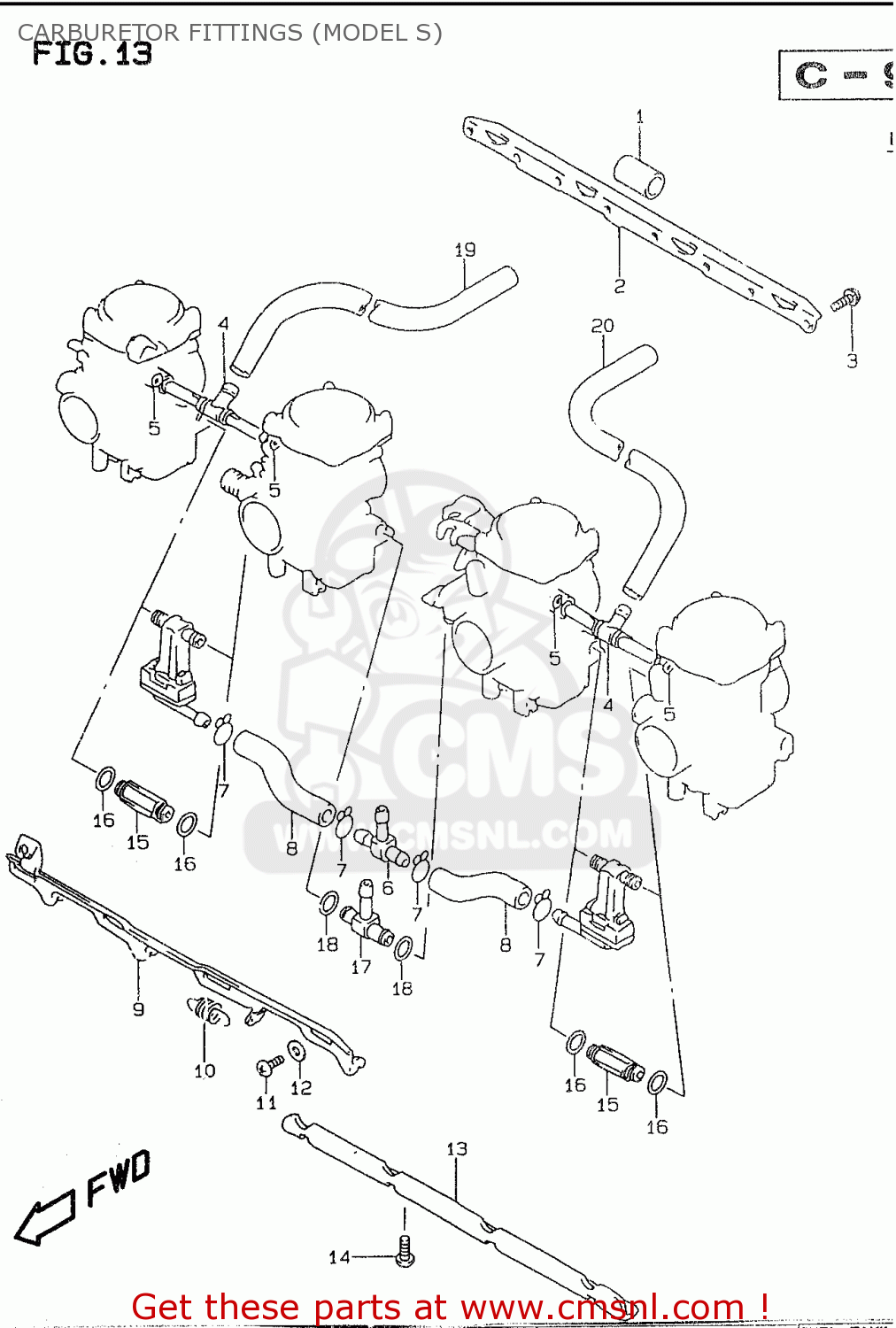

Carburetor fittings (model s) diagram GSF600SU 1998 (W) GERMANY (E22)

CARBURETOR FITTINGS (MODEL S) GSF600SU 1998 (W) GERMANY (E22)

CARBURETOR FITTINGS (MODEL S) GSF600SU 1998 (W) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

1368426E00
ref: 1

PIPE

€ 3.00

2

1362826E10
ref: 2

STAY,PLATE

€ 29.00

3

1360226E50
ref: 3

SCREW

€ 3.50

4

1368526E20
ref: 4

JOINT

€ 14.00

5

1367326E00
ref: 5

O RING

€ 4.50

6

1368526E30
ref: 6
E18,E22

JOINT

€ 18.50

7

1367126E10
ref: 7
E18,E22

CLAMP

€ 3.50

8

1368326E00
ref: 8
E18,E22

HOSE

€ 25.00

9

1341326E00
ref: 9

LEVER,STARTER

€ 59.50

10

1341726E20
ref: 10

SPRING

€ 9.50

11

1360226E60
ref: 11

SCREW

€ 3.50

12

1341826E10
ref: 12

WASHER

€ 3.50

13

1362826E00
ref: 13

STAY,PLATE

€ 29.00

14

1360226E40
ref: 14

SCREW

€ 3.50

15

1368526E10
ref: 15
EXCEPT E18,E22

JOINT

€ 12.50

16

1367326E10
ref: 16
EXCEPT E18,E22

O RING

€ 4.50

17

1368526E00
ref: 17
EXCEPT E18,E22

JOINT

€ 25.00

18

1367326E00
ref: 18
EXCEPT E18,E22

O RING

€ 4.50

19

0935270113600
ref: 19
L:600->450

HOSE(7X11X600)

€ 17.50

20

0935270113600
ref: 20
L:600->480

HOSE(7X11X600)

€ 17.50
