STAND (MODEL S/T/V)
GSF600SU 1998 (W) GERMANY (E22)

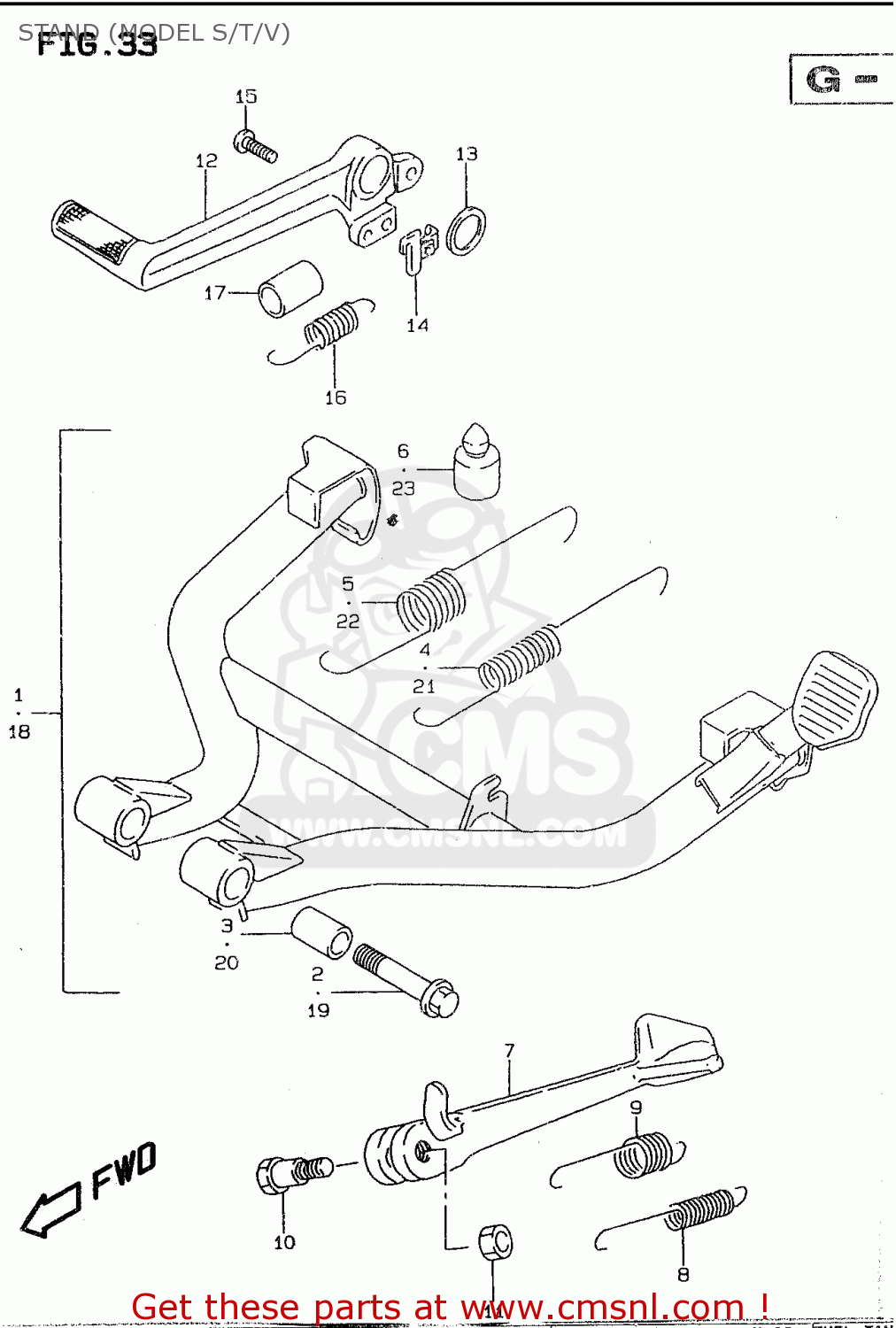

Stand (model s/t/v) diagram GSF600SU 1998 (W) GERMANY (E22)
STAND (MODEL S/T/V) GSF600SU 1998 (W) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
4210026821
ref: 1
GSF600ST/SUT/SV/SUV
STAND,CENTER
€ 173.50
2
0910310126
ref: 2
GSF600ST/SUT/SV/SUV
BOLT(10X48)
€ 4.50
3
0918010113
ref: 3
GSF600ST/SUT/SV/SUV
SPACER(10X16X25.5)
€ 13.50
4
0944314059
ref: 4
GSF600ST/SUT/SV/SUV
SPRING
€ 9.50
5
0944322013
ref: 5
GSF600ST/SUT/SV/SUV
SPRING OUTER
€ 7.00
6
0932110017
ref: 6
GSF600ST/SUT/SV/SUV
CUSHION
€ 5.50
7-1
4231027E00
ref: 7-1
MODEL S
STAND,PROP
€ 118.50
7-2
4231027E01
ref: 7-2
MODEL T/V
STAND,PROP
€ 118.50
8
0944312036
ref: 8
SPRING
€ 7.50
9
0944319010
ref: 9
SPRING
€ 6.00
10
0911110027
ref: 10
BOLT(10X34)
€ 3.50
11
0915910027
ref: 11
NUT
€ 3.00
12
4311131E01
ref: 12
PEDAL,BRAKE
€ 100.50
13
0916018022
ref: 13
WASHER(18X24X1)
€ 3.00
14
4356032C00
ref: 14
BRACKET,STOP LAMP SWITCH SPR
€ 3.00
15
0211205163
ref: 15
SCREW
€ 2.00
16
0944313029
ref: 16
SPRING
€ 5.00
17
4326117C00
ref: 17
TUBE,BRAKE SPRING GUIDE
€ 5.50
18
4210026821
ref: 18
OPT,GSF600S/US/T/UT/
STAND,CENTER
€ 173.50
19
0910310126
ref: 19
OPT,GSF600S/US/T/UT/
BOLT(10X48)
€ 4.50
20
0918010113
ref: 20
OPT,GSF600S/US/T/UT/
SPACER(10X16X25.5)
€ 13.50
21
0944314059
ref: 21
OPT,GSF600S/US/T/UT/
SPRING
€ 9.50
22
0944322013
ref: 22
OPT,GSF600S/US/T/UT/
SPRING OUTER
€ 7.00
23
0932110017
ref: 23
OPT,GSF600S/US/T/UT/
CUSHION
€ 5.50
