HANDLE SWITCH (MODEL V/W)
GSF600SU 1998 (W) GERMANY (E22)

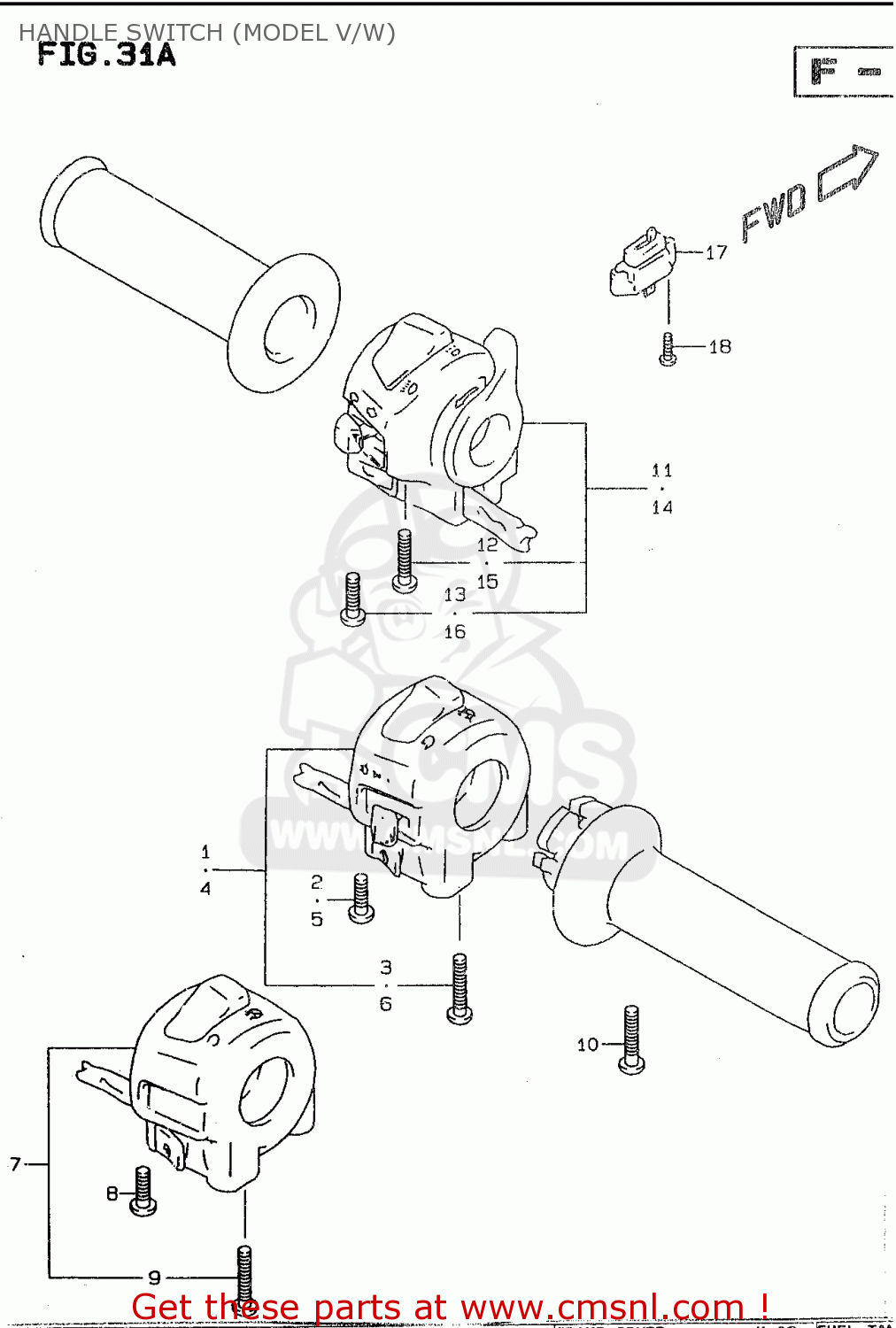

Handle switch (model v/w) diagram GSF600SU 1998 (W) GERMANY (E22)
HANDLE SWITCH (MODEL V/W) GSF600SU 1998 (W) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3720033E11
ref: 1
GSF600V P37 GSF600SV
SWITCH,HANDLE,
€ 174.50
2
0211205303
ref: 2
SCREW
€ 1.50
3
0211205503
ref: 3
SCREW
€ 2.00
4
3720027E11
ref: 4
GSF600V/W E2,E4,E17,
SWITCH ASSY,HANDLE,R
€ 176.00
5
0211205303
ref: 5
SCREW
€ 1.50
6
0211205503
ref: 6
SCREW
€ 2.00
7
3720033E31
ref: 7
GSF600SV/SW E24
SWITCH ASSY,HANDLE,R
€ 135.00
8
0211205303
ref: 8
SCREW
€ 1.50
9
0211205503
ref: 9
SCREW
€ 2.00
10
0211205103
ref: 10
SCREW
€ 2.00
11
3740023E10
ref: 11
GSF600V/W E2,E4,E17,
SWITCH ASSY,HANDLE,L
€ 223.50
12
0211206253
ref: 12
SCREW
€ 1.50
13
0211205453
ref: 13
SCREW
€ 4.00
14
3740026E10
ref: 14
GSF600SV/SW E2,E4,E1
SWITCH,HANDLE,
€ 230.00
15
0211205253
ref: 15
SCREW
€ 1.50
16
0211205453
ref: 16
SCREW
€ 4.00
17
3756038A00
ref: 17
SWITCH ASSY,CLUTCH
€ 20.00
18
3756426E00
ref: 18
SCREW
€ 3.00
