HEADLAMP (GSF600ST/SV/SW E24)

GSF600SU 1998 (W) GERMANY (E22)

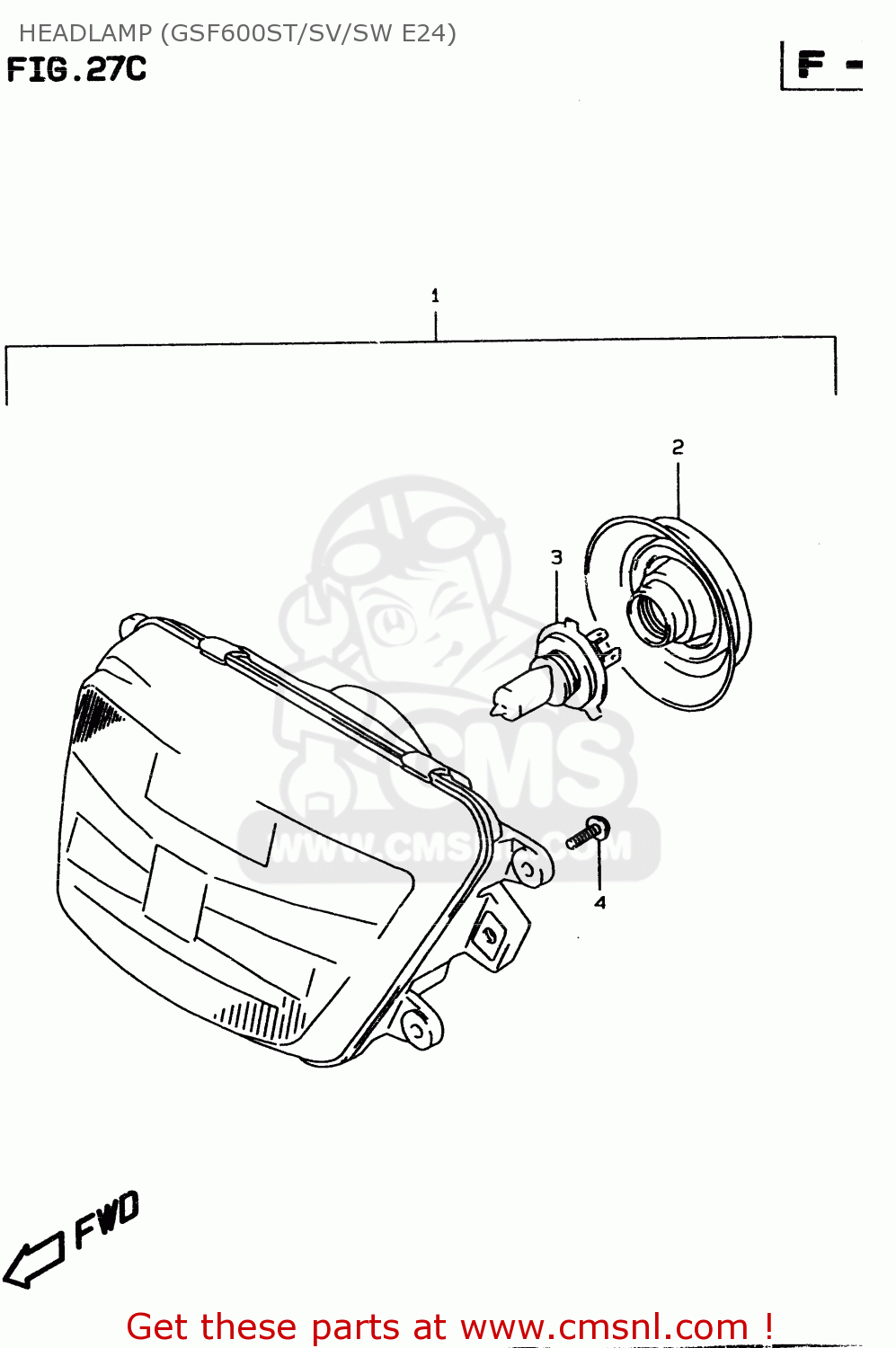

Headlamp (gsf600st/sv/sw e24) diagram GSF600SU 1998 (W) GERMANY (E22)

HEADLAMP (GSF600ST/SV/SW E24) GSF600SU 1998 (W) GERMANY (E22)

HEADLAMP (GSF600ST/SV/SW E24) GSF600SU 1998 (W) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

3510019D11
ref: 1
<-35100-19D10

HEADLAMP ASSY

€ 318.50

2

3517326B20
ref: 2

COVER,SOCKET

€ 14.50

3

0947112060
ref: 3

BULB(12V60/55W,H4)

€ 8.00

4

0214205163
ref: 4

SCREW

€ 2.50
