CRANKSHAFT
GSF600U 1999 (X) GERMANY (E22)

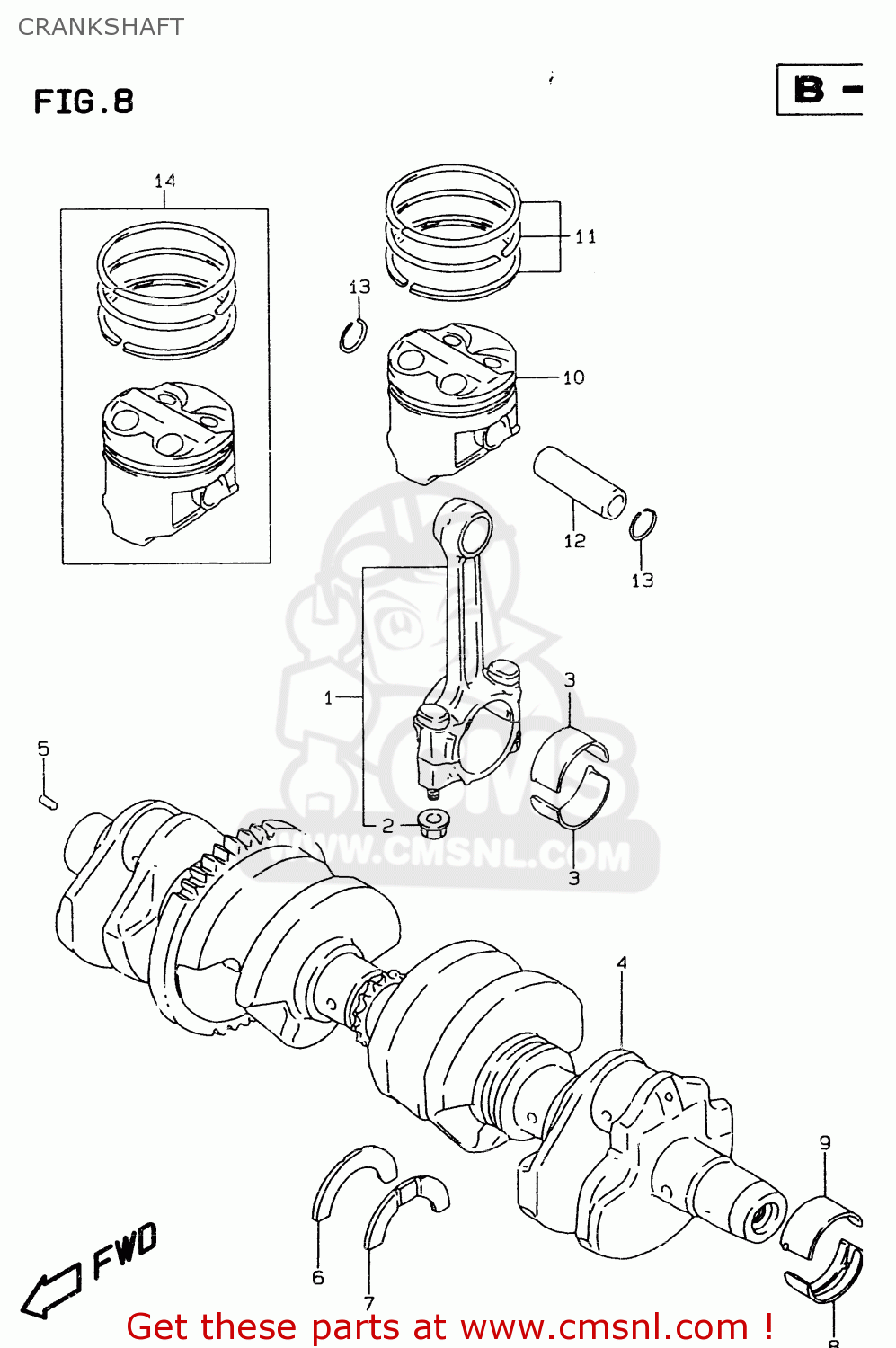

Crankshaft diagram GSF600U 1999 (X) GERMANY (E22)
CRANKSHAFT GSF600U 1999 (X) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1216027A13
ref: 1
ROD ASSEMBLY,CONNECTING
€ 177.50
2
0915908033
ref: 2
NUT
€ 2.50
3-1
1216417E010A0
ref: 3-1
~E.NO.N712-113157 ~E
BEARING,CRANK PIN
€ 14.50
3-2
1216417E010B0
ref: 3-2
~E.NO.N712-113157 ~E
BEARING,CRANK PIN
€ 14.50
3-3
1216417E010C0
ref: 3-3
~E.NO.N712-113157 ~E
BEARING,CRANK PIN
€ 15.00
3-4
1216417E010D0
ref: 3-4
~E.NO.N712-113157 ~E
BEARING,CRANK PIN
€ 15.50
3-5
1216426E000A0
ref: 3-5
E.NO.N712-113158~ E.
BEARING,CRANK PIN
€ 8.00
3-6
1216426E000B0
ref: 3-6
E.NO.N712-113158~ E.
BEARING,CRANK PIN
€ 14.50
3-7
1216426E000C0
ref: 3-7
E.NO.N712-113158~ E.
BEARING,CRANK PIN
€ 15.00
3-8
1216426E000D0
ref: 3-8
E.NO.N712-113158~ E.
BEARING,CRANK PIN
€ 15.50
4-1
1200026830
ref: 4-1
MODEL S/T/V
CRANKSHAFT SET
€ 1,189.00
4-2
1200026831
ref: 4-2
MODEL W
CRANKSHAFT SET
€ 1,189.00
5
0422104089
ref: 5
PIN
€ 1.50
6
1222819C00
ref: 6
->12228-43414
PLATE,CRANK THRUST
€ 9.50
7-1
1222843411
ref: 7-1
PLATE,CRANK THRUST
€ 8.50
7-2
1222843412
ref: 7-2
PLATE,CRANK THRUST
€ 8.50
7-3
1222843413
ref: 7-3
PLATE,CRANK THRUST
€ 8.00
7-4
1222843414
ref: 7-4
PLATE,CRANK THRUST
€ 9.50
7-5
1222843415
ref: 7-5
BEARING,THRUST
€ 8.50
7-6
1222843416
ref: 7-6
PLATE,CRANK THRUST
€ 9.50
8-1
1222927A000A0
ref: 8-1
LOWER
BEARING,CRANKSHAFT LWR
€ 12.00
8-2
1222927A000B0
ref: 8-2
BEARING,CRANKSHAFT LWR
€ 12.00
8-3
1222927A000C0
ref: 8-3
BEARING,CRANKSHAFT LWR
€ 12.00
8-4
1222927A000D0
ref: 8-4
BEARING,CRANKSHAFT LWR
€ 12.00
9-1
1222927A100A0
ref: 9-1
UPPER
BEARING,CRANKSHAFT UPR
€ 12.00
9-2
1222927A100B0
ref: 9-2
BEARING,CRANKSHAFT UPR
€ 12.00
9-3
1222927A100C0
ref: 9-3
BEARING,CRANKSHAFT UPR
€ 12.00
9-4
1222927A100D0
ref: 9-4
BEARING,CRANKSHAFT UPR
€ 11.50
10-1
1211119C02
ref: 10-1
MODEL S
PISTON
€ 89.50
10-2
1211119C200F0
ref: 10-2
MODEL T/V/W
PISTON
€ 89.50
11
1214019C10
ref: 11
RING SET,PISTON
€ 72.50
12
1215119C02
ref: 12
PIN,PISTON
€ 16.50
13
0938118003
ref: 13
CIRCLIP
€ 3.00
14-1
1210019C00050
ref: 14-1
OPT MODEL S
PISTON SET (OS:0.5)
€ 1,038.50
14-2
1210019C00100
ref: 14-2
OPT MODEL S
PISTON SET (OS:1.0)
€ 114.00
14-3
1210019C20050
ref: 14-3
OPT MODEL T/V/W
PISTON SET(OS:0.5)
€ 1,038.50
14-4
1210019C20100
ref: 14-4
OPT MODEL T/V/W
PISTON SET (OS:1.0)
€ 114.00
