STEERING STEM
GSF600U 1999 (X) GERMANY (E22)

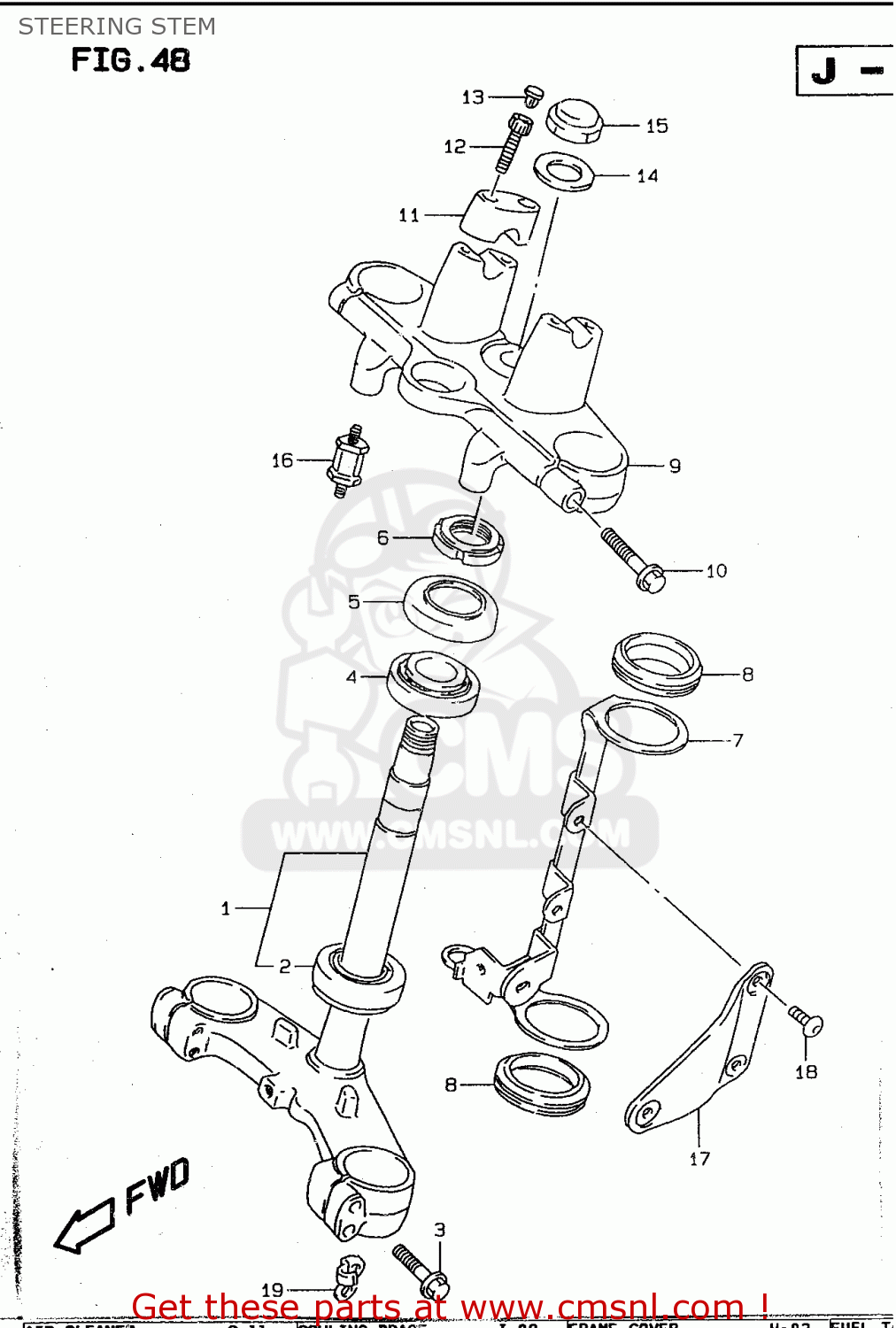

Steering stem diagram GSF600U 1999 (X) GERMANY (E22)
STEERING STEM GSF600U 1999 (X) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5141026E00
ref: 1
STEM,STEERING
€ 411.00
2
0926530009
ref: 2
BEARING(30X55X17)
€ 49.50
3
0155008407
ref: 3
BOLT
€ 3.50
4
0926525019
ref: 4
BEARING(25X47X15)
€ 48.50
5
5164349002
ref: 5
SEAL,STEERING UPR DUST
€ 7.50
6
5163128000
ref: 6
NUT,STEERING STEM(25X44X10)
€ 12.50
7-1
5153026E00
ref: 7-1
GSF600S/US/T/UT/V/UV
BRACKET,HEADLAMP HOUSING,R
€ 132.50
7-2
5154026E00
ref: 7-2
GSF600S/US/T/UT/V/UV
BRACKET,HEADLAMP HOUSING,L
€ 32.50
8
5155338C00
ref: 8
GSF600S/US/T/UT/V/UV
DAMPER,HEADLAMP HSG BRACKET
€ 8.50
9
5131126E00
ref: 9
HEAD,STEERING STEM
€ 260.50
10
0155008407
ref: 10
BOLT
€ 3.50
11
5621111D100FP
ref: 11
HOLDER,HANDLE UPR
€ 16.00
12
0713008307
ref: 12
BOLT
€ 4.50
13
0925006011
ref: 13
CAP(OD:11)
€ 2.50
14
5135610D03
ref: 14
WASHER(22.5X35.9X1.6)
€ 3.00
15
5135324B00
ref: 15
NUT,CAP
€ 21.50
16
1778810D00
ref: 16
BOLT,SPEEDOMETER CUSHION
€ 8.50
17-1
5185126E00
ref: 17-1
GSF600S/US/T/UT/V/UV
STAY,HEADLAMP HOUSING,R
€ 40.00
17-2
5186126E00
ref: 17-2
GSF600S/US/T/UT/V/UV
STAY,HEADLAMP HOUSING,L
€ 35.50
18
0913906027
ref: 18
GSF600S/US/T/UT/V/UV
SCREW(6X12)
€ 3.00
19
3493826E20
ref: 19
GSF600ST/SUT/SV/SUV/
GUIDE,SPEEDOMETER CABLE
€ 7.00
