STAND (MODEL W)
GSF600U 1999 (X) GERMANY (E22)

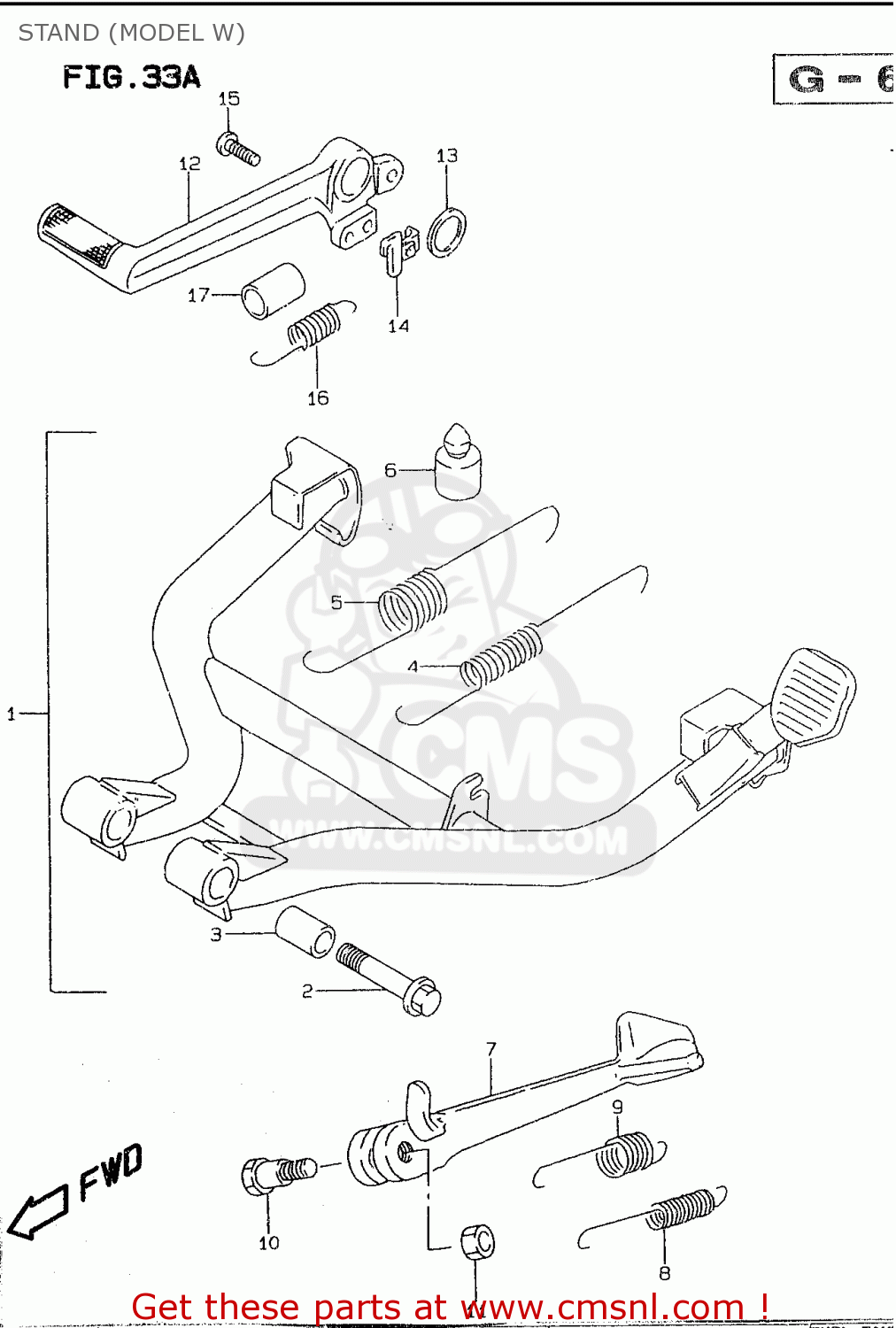

Stand (model w) diagram GSF600U 1999 (X) GERMANY (E22)
STAND (MODEL W) GSF600U 1999 (X) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
4210026822
ref: 1
STAND SET,CTR
€ 173.50
2
0910310126
ref: 2
BOLT(10X48)
€ 4.50
3
0918010113
ref: 3
SPACER(10X16X25.5)
€ 13.50
4
0944314059
ref: 4
SPRING
€ 9.50
5
0944322013
ref: 5
SPRING OUTER
€ 7.00
6
0932110017
ref: 6
CUSHION
€ 5.50
7
4231027E01
ref: 7
STAND,PROP
€ 118.50
8
0944312036
ref: 8
SPRING
€ 7.50
9
0944319010
ref: 9
SPRING
€ 6.00
10
0911110027
ref: 10
BOLT(10X34)
€ 3.50
11
0831921103
ref: 11
NUT
€ 2.00
12
4311131E01
ref: 12
PEDAL,BRAKE
€ 100.50
13
0916018022
ref: 13
WASHER(18X24X1)
€ 3.00
14
4356032C00
ref: 14
BRACKET,STOP LAMP SWITCH SPR
€ 3.00
15
0211205163
ref: 15
SCREW
€ 2.00
16
0944313029
ref: 16
SPRING
€ 5.00
17
4326117C00
ref: 17
TUBE,BRAKE SPRING GUIDE
€ 5.50
