CYLINDER HEAD COVER
GSF600U 1999 (X) GERMANY (E22)

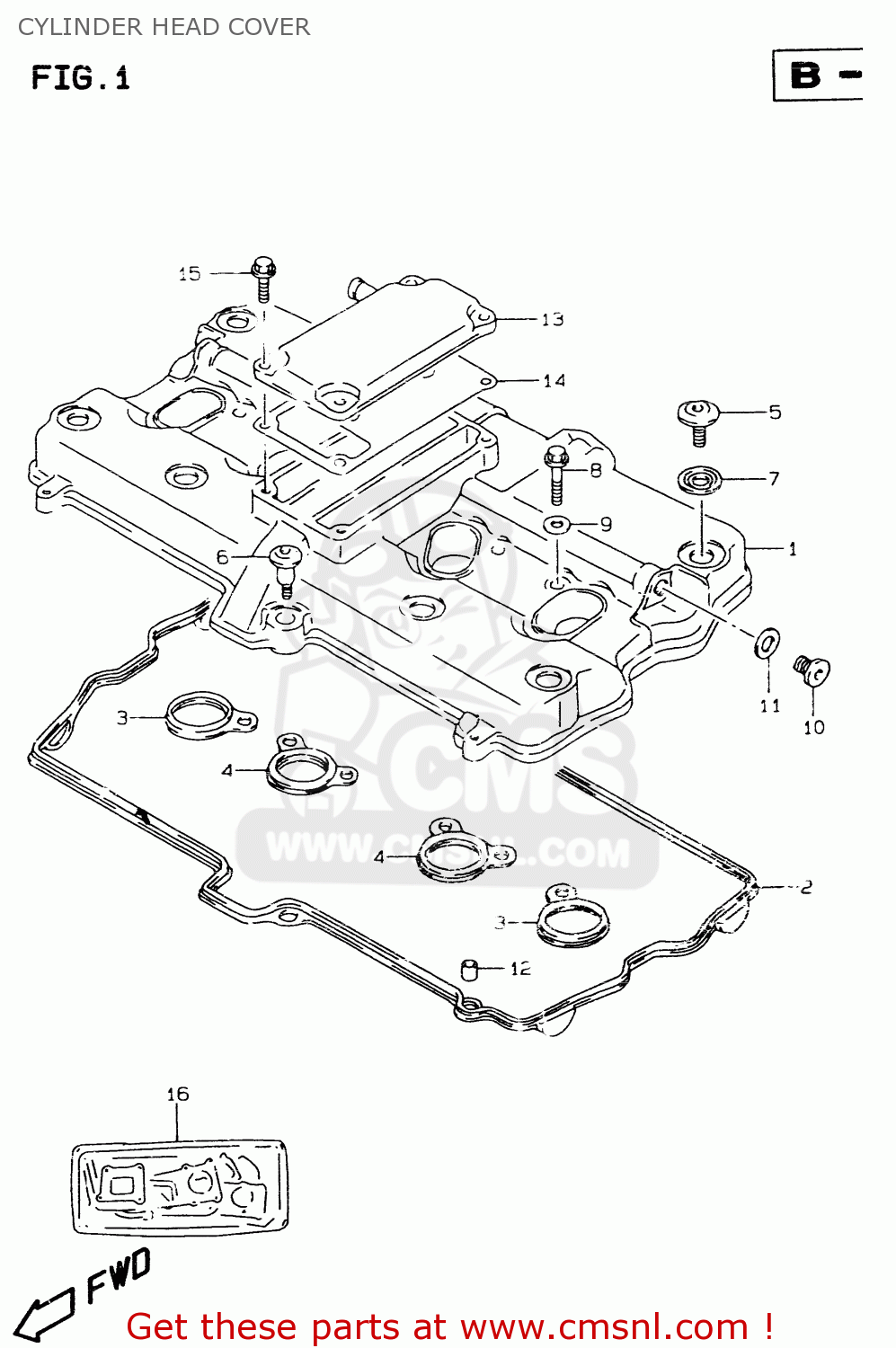

Cylinder head cover diagram GSF600U 1999 (X) GERMANY (E22)
CYLINDER HEAD COVER GSF600U 1999 (X) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1117126E01
ref: 1
COVER,CYLINDER HEAD
€ 522.00
2
1117327A02
ref: 2
GASKET,CYLINDER HEAD COVER (NAS)
€ 34.00
3
1117827A01
ref: 3
GASKET,HEAD COVER NO.2 (NAS)
€ 5.50
4
1117927A02
ref: 4
GASKET,HEAD COVER NO.3 (NAS)
€ 7.50
5
0910607009
ref: 5
BOLT(7X17.5)
€ 4.50
6
0910607010
ref: 6
BOLT(7X31)
€ 4.50
7
0916111008
ref: 7
WASHER(10.6X25.5X2.3)
€ 4.50
8
0936008009
ref: 8
BOLT,UNION 8X35
€ 26.50
9
0916808008
ref: 9
GASKET 8.2X14X1 (NAS)
€ 1.00
10
0924812004
ref: 10
PLUG(L:12)
€ 5.50
11
0916812002
ref: 11
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
12
0422108129
ref: 12
PIN
€ 2.00
13-1
1117626D00
ref: 13-1
COVER,BREATHER
€ 35.50
13-2
1117631301
ref: 13-2
E18
COVER,BREATHER
€ 31.50
14-1
1117717E00
ref: 14-1
GASKET,BREATHER COVER
€ 12.50
14-2
1117727A00H17
ref: 14-2
E18
GASKET,BREATHER COVER (NAS)
€ 11.00
15-1
0155006253
ref: 15-1
BOLT
€ 2.50
15-2
0155006203
ref: 15-2
E18
BOLT
€ 2.50
16-1
1140026881
ref: 16-1
MODEL S/T/V
GASKET SET (NAS)
€ 356.50
16-2
1140026882
ref: 16-2
MODEL W
GASKET SET (NAS)
€ 356.50
