COWLING (GSX1100ESG)

GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

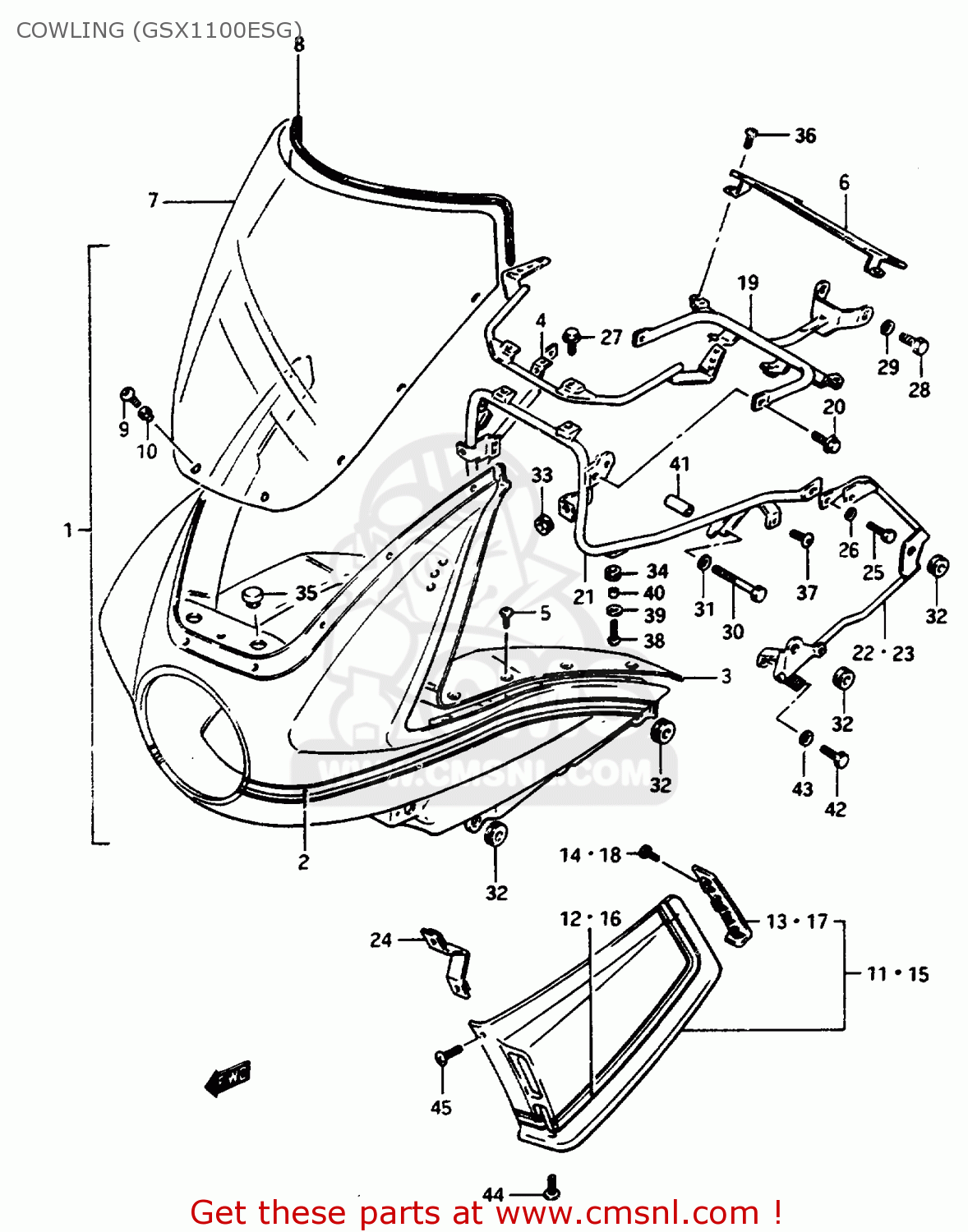

Cowling (gsx1100esg) diagram GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

COWLING (GSX1100ESG) GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)
COWLING (GSX1100ESG) GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)
COWLING (GSX1100ESG) GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
9440000A907JJ
ref: 1-1
COWLING ASSY (WHITE/RED)
€ 1,245.00
1-2
9440000A907JK
ref: 1-2
COWLING ASSY (BLACK/RED)
€ 0.00
2-1
6819000A708BV
ref: 2-1
FOR 7JJ
TAPE SET,COWLING
€ 0.00
2-2
6819000A707JL
ref: 2-2
FOR 7JK
TAPE SET,COWLING
€ 0.00
3
9442000A01
ref: 3
PANEL,COWLING
€ 75.00
4
9456000A00
ref: 4
BRACE,COWLING BODY
9456000A00
€ 35.00
5
0323104104
ref: 5
SCREW, PANEL
0323104104
€ 2.00
6
9442600A01
ref: 6
COVER,METER,REAR
€ 26.00
7-1
9461100A00
ref: 7-1
WINDOW,COWLING
9461100A00
€ 464.50
7-2
9461100A20
ref: 7-2
E17
SCREEN
€ 393.50
8-1
9463100A00
ref: 8-1
MOLDING COWLING
€ 18.00
8-2
9463100A10
ref: 8-2
E17
MOLDING
€ 14.00
9
0913905023
ref: 9
SCREW(5X20)
0913905023
€ 2.00
10
0932005008
ref: 10
CUSHION
0932005008
€ 5.00
11-1
9443000A707JJ
ref: 11-1
COVER, RH (WHITE/RED)
€ 132.00
11-2
9443000A707JK
ref: 11-2
COVER, RH (BLACK/RED)
€ 132.00
12-1
6868000A408BV
ref: 12-1
FOR 7JJ
TAPE SET,COWLING
€ 0.00
12-2
6868000A407JL
ref: 12-2
FOR 7JK
TAPE SET,COWLING
€ 0.00
13
9443200A00
ref: 13
PANEL,COWL SIDE COVER RR RH
9443200A00
€ 8.00
14
0354104126
ref: 14
SCREW
0354104126
€ 1.50
15-1
9444000A707JJ
ref: 15-1
COVER, LH (WHITE/RED)
€ 0.00
15-2
9444000A707JK
ref: 15-2
COVER, LH (BLACK/RED)
€ 147.00
16-1
6869000A208BV
ref: 16-1
FOR 7JJ
TAPE SET,COWLING SIDE
€ 0.00
16-2
6869000A207JL
ref: 16-2
FOR 4JK
TAPE SET,COWLING SIDE
€ 0.00
17
9444200A00
ref: 17
PANEL,COWLING SIDE COVER
9444200A00
€ 7.50
18
0354104126
ref: 18
SCREW
0354104126
€ 1.50
19
9451000A00
ref: 19
BRACE,COWLING,FRONT
9451000A00
€ 45.00
20
0151706163
ref: 20
BOLT
€ 2.50
21
9452000A00
ref: 21
BRACE,COWL RR
9452000A00
€ 118.00
22
9453000A01
ref: 22
BRACE,COWLING SIDE,RIGHT
€ 27.50
23
9454000A01
ref: 23
BRACE,COWLING SIDE,LEFT
€ 27.50
24
9455000A00
ref: 24
BRACE,SIDE,FRONT
9455000A00
€ 4.00
25
0110706165
ref: 25
BOLT 6X16
0110706165
€ 2.00
26
0832121064
ref: 26
WASHER,LOCK
0832121064
€ 2.00
27
0151706163
ref: 27
BOLT
€ 2.50
28
0110708165
ref: 28
BOLT
€ 2.00
29
0832121084
ref: 29
WASHER,LOCK,8.
0832121084
€ 2.50
30
0110708505
ref: 30
BOLT
€ 3.00
31
0832121084
ref: 31
WASHER,LOCK,8.
0832121084
€ 2.50
32
0932008018
ref: 32
CUSHION
0932008018
€ 4.00
33
0932008013
ref: 33
CUSHION
0932008013
€ 4.00
34
0932009016
ref: 34
CUSHION
0932009016
€ 2.50
35
0925018003
ref: 35
PLUG(OD:22)
0925018003
€ 2.00
36
0214205104
ref: 36
SCREW 5X10
0214205104
€ 2.50
37
0214206125
ref: 37
SCREW 6X12
0214206125
€ 2.00
38
0214206205
ref: 38
SCREW, CENTER
0214206205
€ 2.00
39
0916006056
ref: 39
WASHER(6.5X18X1)
0916006056
€ 2.00
40
0918006011
ref: 40
SPACER (6.1X9X9)
0918006011
€ 2.00
41
0918008091
ref: 41
SPACER (8.6X13.8X35)
€ 3.00
42
0711008165
ref: 42
BOLT
€ 3.00
43
0832121084
ref: 43
WASHER,LOCK,8.
0832121084
€ 2.50
44
0913905029
ref: 44
SCREW
0913905029
€ 1.50
45
0214206167
ref: 45
SCREW
0214206167
€ 2.00
