CYLINDER HEAD

GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

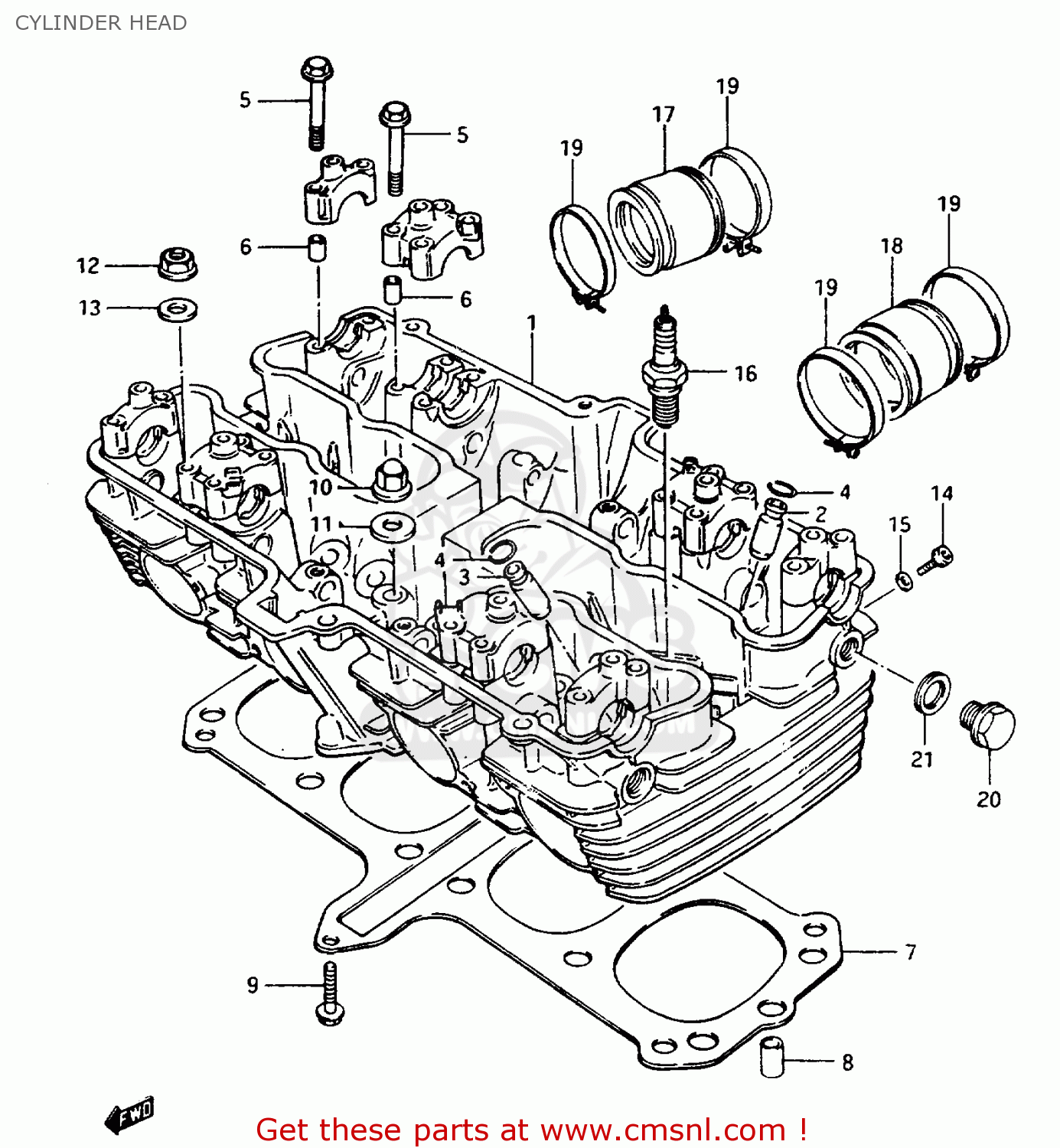

Cylinder head diagram GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

CYLINDER HEAD GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)
CYLINDER HEAD GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)
CYLINDER HEAD GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1
1110000A03
ref: 1
HEAD,CYLINDER (16 VALVE)
1110000A03
€ 1,330.00
2
1111549290
ref: 2
GUIDE,INTAKE VALVE
1111549290
€ 19.50
3
1111549290
ref: 3
GUIDE,INTAKE VALVE
1111549290
€ 19.50
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0910306026
ref: 5
BOLT(6X39)
0910306026
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7
1114100A03
ref: 7
GASKET,CYLINDER HEAD (NAS)
1114100A03
€ 120.50
8
0421111189
ref: 8
PIN
0421111189
€ 2.00
9
0151706305
ref: 9
BOLT 6X30
€ 2.50
10
0915910026
ref: 10
NUT
0915910026
€ 6.00
11
0916810017
ref: 11
GASKET(10.5X22X2) (NAS)
0916810017
€ 3.50
12
0831616108
ref: 12
NUT
0831616108
€ 2.00
13
0916010039
ref: 13
WASHER(10.5X22X2.3)
0916010039
€ 2.50
14
0711005085
ref: 14
BOLT, INTAKE PORT
€ 2.50
15
0916805010
ref: 15
GASKET(5.3X9.3X1.2) (NAS)
0916805010
€ 2.00
16-1
0948200184
ref: 16-1
SPARK PLUG D9EA
€ 6.50
16-2
0948200185
ref: 16-2
SPARK PLUG X27ES-U
€ 0.00
16-3
0948200221
ref: 16-3
E2,E4,E6,E15,E16.E17
PLUG,SPARK(DR8ES)
0948200221
€ 5.50
16-4
0948200224
ref: 16-4
E2,E4,E6,E15,E16E,17
PLUG,SPARK(X27ESR-U)
0948200224
€ 9.50
17
1311100A00
ref: 17
PIPE,INTAKE RH
1311100A00
€ 22.00
18
1312100A00
ref: 18
PIPE INTAKE (NAS)
1312100A00
€ 22.00
19
0940252306
ref: 19
CLAMP
0940252306
€ 6.00
20
0924714012
ref: 20
PLUG (14X12)
0924714012
€ 3.50
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
