CYLINDER HEAD COVER

GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

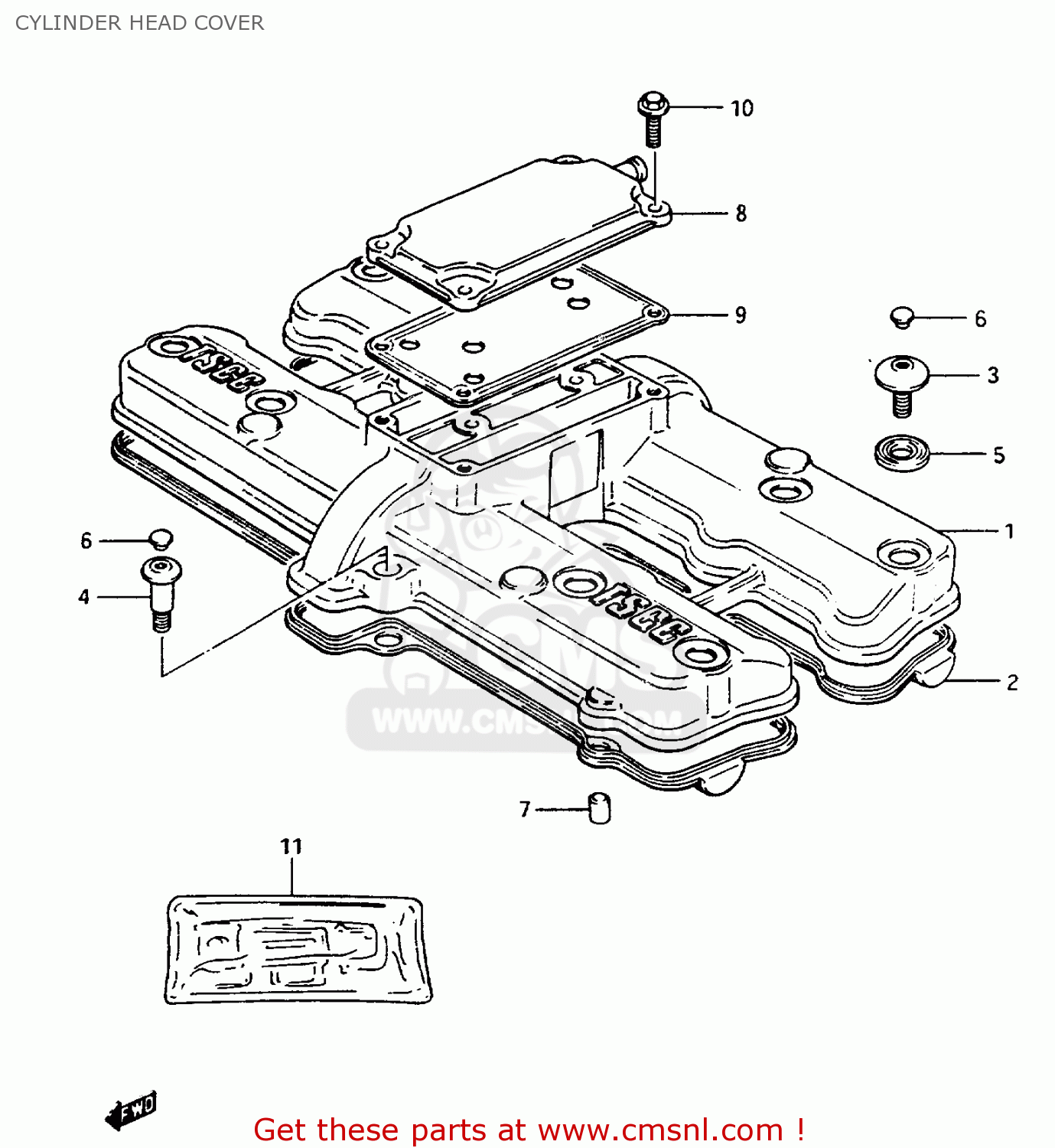

Cylinder head cover diagram GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

1117100A01
ref: 1

COVER,CYLINDER HEAD

€ 134.50

1117331302
ref: 2

GASKET,HEAD COVER (NAS)

€ 37.00

0910607001
ref: 3

BOLT(7X5.5)

€ 6.00

0910607002
ref: 4

BOLT(7X19)

€ 7.00

0916111006
ref: 5

WASHER

€ 4.50

0925006008
ref: 6

CAP(OD:10)

€ 3.00

0422108129
ref: 7

PIN

€ 2.00

1117600A00
ref: 8

COVER,BREATHER

€ 31.50

1117731300
ref: 9

GASKET (MCA)

€ 11.00

0151706208
ref: 10

BOLT,REAR

€ 2.50

11-1

1140000840
ref: 11-1
OPT ~E.NO.101424

GASKET SET (MCA)

€ 110.00

11-2

1140000850
ref: 11-2
OPT E.NO.101425~

GASKET SET

€ 251.50
