GENERATOR

GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

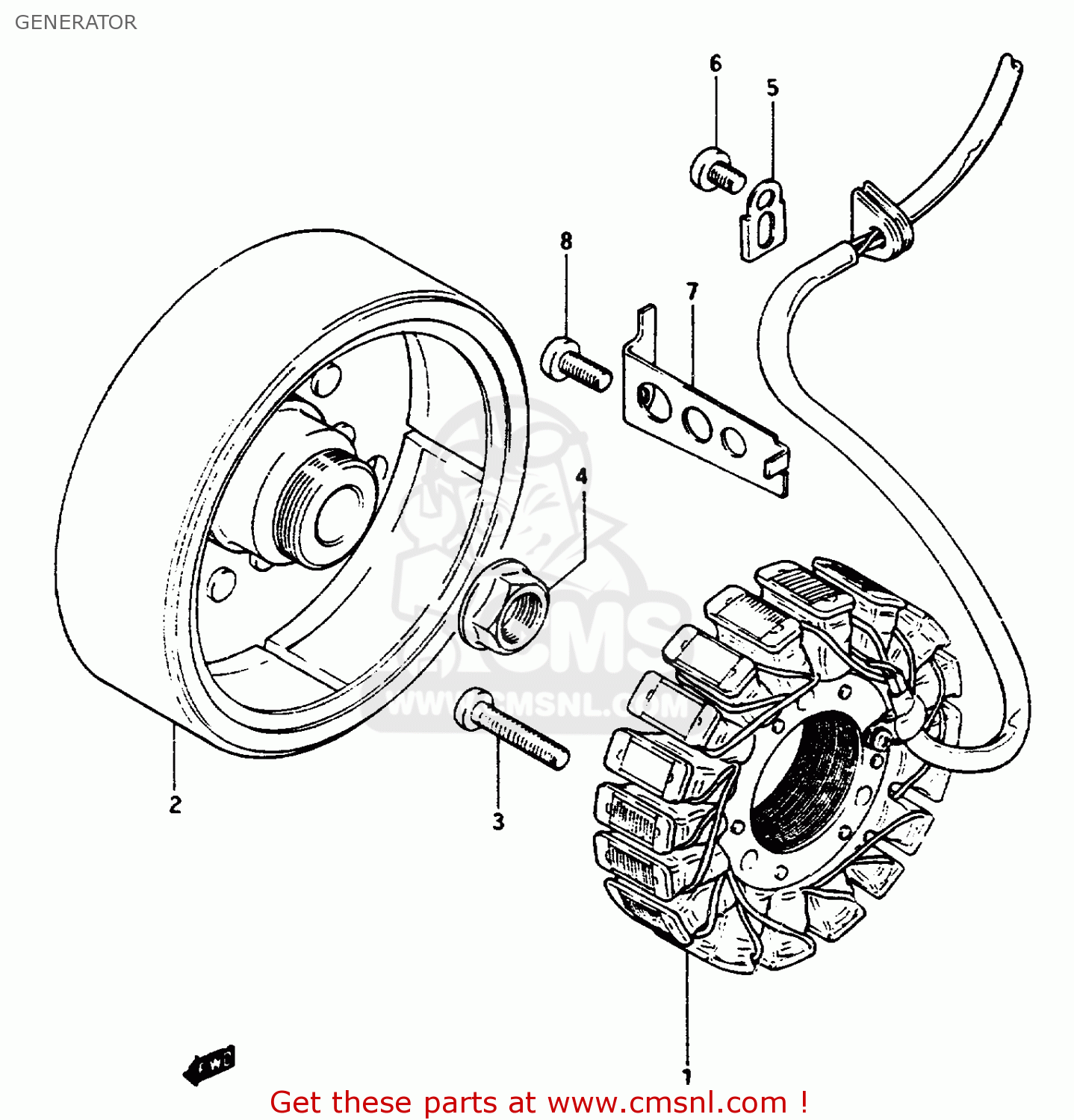

Generator diagram GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

GENERATOR GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

GENERATOR GSX1100EF 1986 (G) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

1

3140100A00
ref: 1

STATOR ASSEMBLY

€ 327.00

2

3140249330
ref: 2

ROTOR ASSY

€ 403.50

3

0211206308
ref: 3

SCREW 6X30

€ 2.50

4

3179249200
ref: 4

NUT,GENERATOR ROTOR

€ 10.00

5

3149745000
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 1.50

6

0211205088
ref: 6

SCREW

€ 2.00

7

3149845000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 2.00

8

0211206108
ref: 8

SCREW

€ 1.50
