FOOTREST

GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53

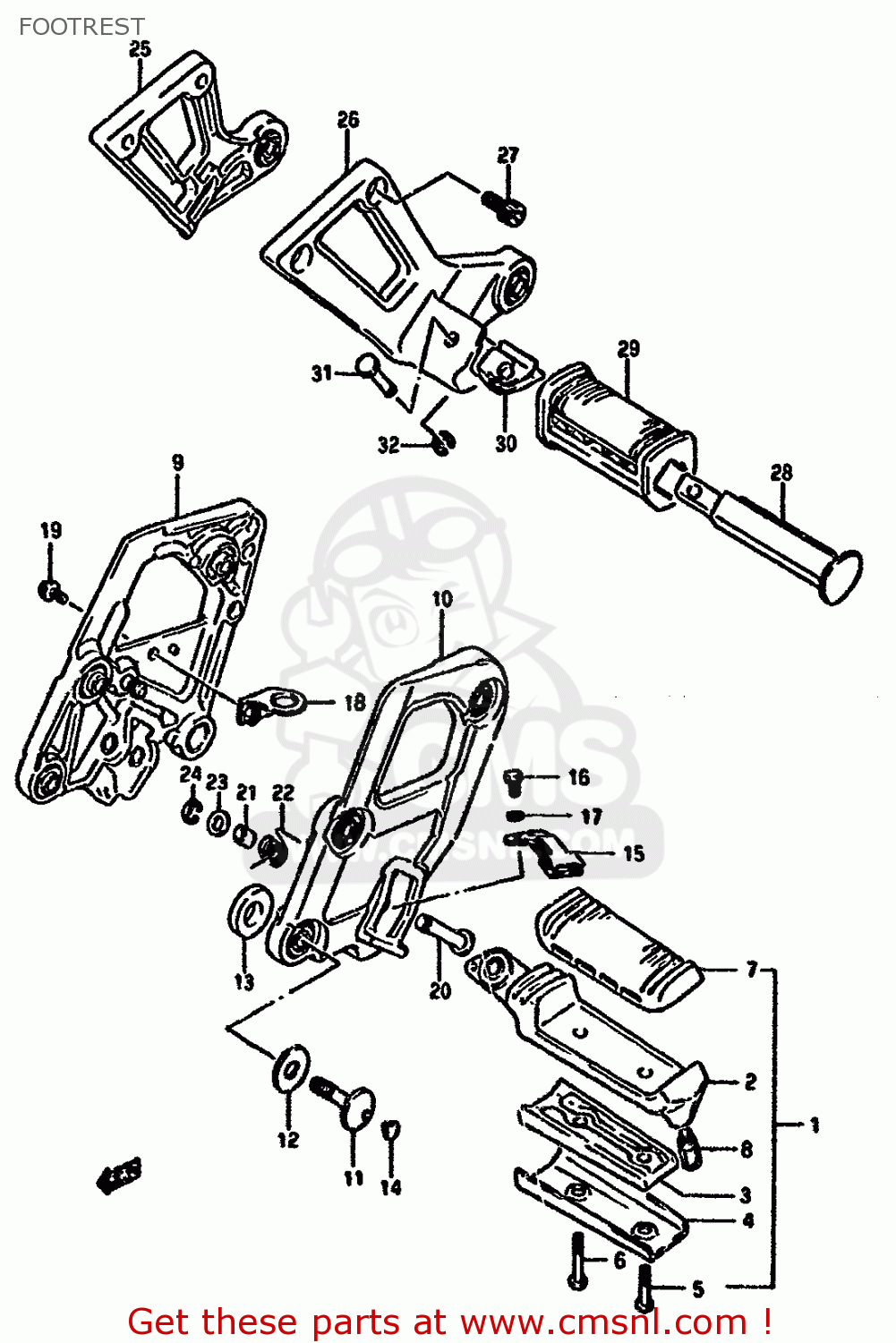

Footrest diagram GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53

FOOTREST GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53
FOOTREST GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53
FOOTREST GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1-1
4350148B01
ref: 1-1
FOOTREST ASSEMBLY,FRONT,RIGHT
€ 131.50
1-2
4350148B02
ref: 1-2
FOOTREST ASSY,FR,R
4350148B02
€ 131.50
1-3
4350248B01
ref: 1-3
FOOTREST ASSEMBLY,FRONT,LEFT
€ 131.50
1-4
4350248B02
ref: 1-4
FOOTREST ASSY,FR,L
4350248B02
€ 131.50
2-1
4351048B50
ref: 2-1
FOR 43501-48B01
BAR,FRONT FOOTREST
4351048B50
€ 69.00
2-2
4351048B51
ref: 2-2
FOR 43501-48B02
BAR,FR FOOTREST,R
4351048B51
€ 69.00
2-3
4352048B50
ref: 2-3
FOR 43502-48B01
BAR,FRONT FOOTREST
€ 26.00
2-4
4352048B51
ref: 2-4
FOR 43502-48B02
BAR,FRONT FOOTREST
4352048B51
€ 26.00
3-1
4353348B00
ref: 3-1
BAR,FR FOOTREST NO.2,R
€ 42.00
3-2
4353300A00
ref: 3-2
BAR,FR FOOTREST NO.2
€ 42.00
4-1
4353448B00
ref: 4-1
COVER,FR FOOTREST BAR,R
4353448B00
€ 11.00
4-2
4353400A00
ref: 4-2
COVER,FRONT FOOTREST B
4353400A00
€ 12.50
5
0211205257
ref: 5
SCREW
0211205257
€ 2.00
6
0211205308
ref: 6
SCREW
0211205308
€ 1.50
7-1
4355048B00
ref: 7-1
FOR 43501-48B01 FOR
FOOTREST,FRONT,RIGHT
4355048B00
€ 15.50
7-2
4355048B10
ref: 7-2
FOR 43501-48B02 FOR
RUBBER,FR FOOTREST
4355048B10
€ 31.00
8
4357648B00
ref: 8
SENSOR,FOOTREST
€ 4.00
9
4351048B1213L
ref: 9
BRACKET,FR FOOTREST,R
4351048B1213L
€ 141.00
10
4352048B1213L
ref: 10
BRACKET,FR FOOTREST,L
4352048B1213L
€ 134.00
11
0910608080
ref: 11
BOLT L:30
0910608080
€ 6.00
12
0832221088
ref: 12
WASHER
0832221088
€ 2.00
13
0916112003
ref: 13
WASHER(12X28X5)
0916112003
€ 4.50
14
0925006008
ref: 14
CAP(OD:10)
0925006008
€ 3.00
15
4357043400
ref: 15
CUSHION,FR FOOTREST
4357043400
€ 8.50
16
0110705108
ref: 16
BOLT 5X10
0110705108
€ 1.50
17
0832121057
ref: 17
LOCK WASHER
0832121057
€ 2.00
18
4356048B00
ref: 18
BRACKET COMP,STOP LAMP SWITCH
€ 6.00
19
0913905033
ref: 19
SCREW(5X10)
0913905033
€ 2.00
20
0920808005
ref: 20
PIN
0920808005
€ 3.00
21
0930608013
ref: 21
BUSHING
0930608013
€ 3.50
22-1
0944814030
ref: 22-1
SPRING
0944814030
€ 3.50
22-2
0944814031
ref: 22-2
SPRING
0944814031
€ 3.00
23
0821108141
ref: 23
WASHER
0821108141
€ 1.50
24
0833211066
ref: 24
E RING
0833211066
€ 2.00
25
4381048B1113L
ref: 25
BRACKET,PILLION FOOTREST,R
4381048B1113L
€ 78.50
26
4382048B1113L
ref: 26
BRACKET,PILLION FOOTREST,L
4382048B1113L
€ 78.50
27
0711008207
ref: 27
BOLT
€ 3.00
28-1
4361048B10
ref: 28-1
MODEL J/K/L/M/N/P
BAR COMP,PILLION FOOTREST
4361048B10
€ 29.00
28-2
4361048B11
ref: 28-2
MODEL R
BAR,PILLION FOOTREST,R
4361048B11
€ 29.00
28-3
4362048B10
ref: 28-3
MODEL J/K/L/M/N/P
BAR,REAR FOOTREST
4362048B10
€ 29.00
28-4
4362048B11
ref: 28-4
MODEL R
BAR,PILLION FOOTREST,LEFT
4362048B11
€ 29.00
29
4361249402
ref: 29
RUBBER,RR FOOTREST
4361249402
€ 14.50
30
4357048B01
ref: 30
CUSHION,PILLION FOOTREST
4357048B01
€ 8.50
31
0920808009
ref: 31
PIN
0920808009
€ 3.00
32
0833211066
ref: 32
E RING
0833211066
€ 2.00
