TRANSMISSION

GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53

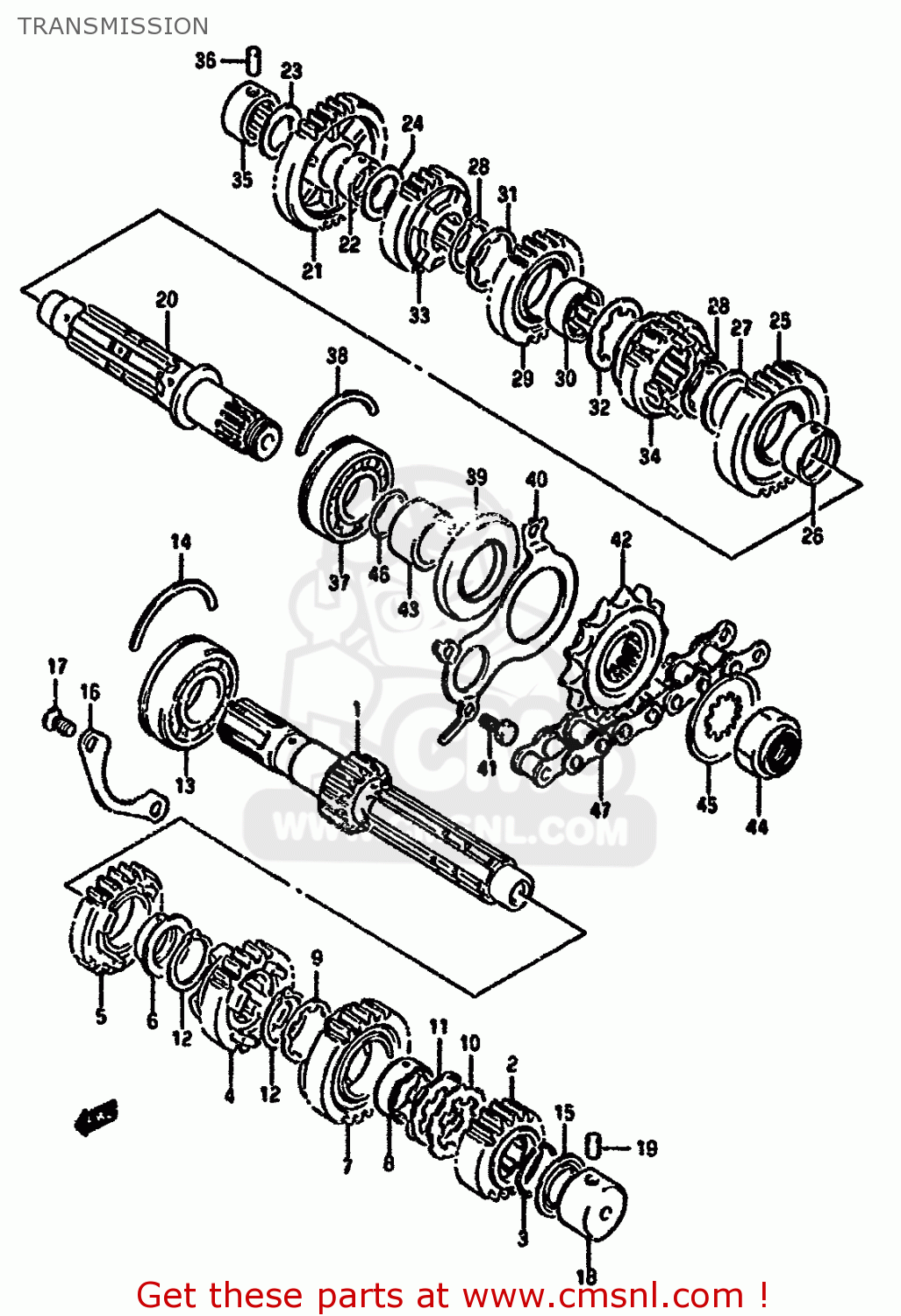

Transmission diagram GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53

TRANSMISSION GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53
TRANSMISSION GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53
TRANSMISSION GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1-1
2412148B01
ref: 1-1
MODEL J/K/L/M/N/P
SHAFT,COUNTER
€ 214.00
1-2
2412148B10
ref: 1-2
MODEL R
SHAFT,COUNTER(NT:13)
2412148B10
€ 214.00
2-1
2422148B00
ref: 2-1
MODEL J/K/L/M/N/P
GEAR,2ND DRIVE (NT:19)
€ 76.50
2-2
2422148B10
ref: 2-2
MODEL R
GEAR,2ND DRIVE(NT:19)
€ 76.50
3
0938025012
ref: 3
CIRCLIP
0938025012
€ 2.00
4
2423148B01
ref: 4
GEAR,THIRD DRIVE (NT:20)
2423148B01
€ 174.50
5
2424148B00
ref: 5
GEAR,FOURTH DRIVE (NT:22)
€ 162.00
6
0930125001
ref: 6
BUSHING
€ 12.50
7
2425148B02
ref: 7
GEAR,FIFTH DRIVE (NT:23)
2425148B02
€ 145.50
8
2425248B00
ref: 8
BUSH,5TH DRIVE GEAR
2425248B00
€ 18.00
9
0916725021
ref: 9
WASHER,LOCK
0916725021
€ 3.00
10
0916725013
ref: 10
WASHER,LOCK
0916725013
€ 2.50
11
0916925001
ref: 11
WASHER
0916925001
€ 2.00
12
0938025003
ref: 12
RING,SNAP
0938025003
€ 3.00
13
0926225051
ref: 13
BEARING(25X62X17)
0926225051
€ 59.50
14
0939062006
ref: 14
C-RING
0939062006
€ 5.00
15
0928520006
ref: 15
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
16
2474127A00
ref: 16
RETAINER,CNTR SHAFT BEARING
2474127A00
€ 7.00
17
0212206167
ref: 17
SCREW
0212206167
€ 2.00
18
0926320049
ref: 18
BEARING(20X34X17.5)
0926320049
€ 58.00
19
0422107129
ref: 19
PIN
0422107129
€ 1.50
20
2413148B00
ref: 20
SHAFT,DRIVE
2413148B00
€ 235.00
21-1
2431148B00
ref: 21-1
MODEL J/K/L/M/N/P
GEAR,FIRST DRIVEN
€ 109.00
21-2
2431148B10
ref: 21-2
MODEL R
GEAR,FIRST DRIVEN (NT:31)
€ 109.00
22
0930022005
ref: 22
BUSHING
€ 19.50
23
0821120341
ref: 23
WASHER
0821120341
€ 2.00
24
0821122341
ref: 24
WASHER
0821122341
€ 3.00
25-1
2432148B00
ref: 25-1
~E.NO.V706-107046,~E
GEAR,SECOND DRIVEN
€ 132.50
25-2
2432148B01
ref: 25-2
E.NO.V706-107047-107
GEAR,SECOND DRIVEN
€ 132.50
25-3
2432148B02
ref: 25-3
E.NO.V706-107342~,E.
GEAR,SECOND DRIVEN
€ 132.50
25-4
2432148B10
ref: 25-4
MODEL R
GEAR,2ND DRIVEN(NT:31)
2432148B10
€ 132.50
26
0930028002
ref: 26
BUSH(28X32X11)
0930028002
€ 15.50
27
0821128361
ref: 27
WASHER
0821128361
€ 3.50
28
0833131286
ref: 28
CIRCLIP
0833131286
€ 2.50
29-1
2433148B02
ref: 29-1
MODEL J/K
GEAR,THIRD DRIVEN
€ 130.50
29-2
2433148B03
ref: 29-2
MODEL L/M/N/P
GEAR,THIRD DRIVEN (NT:25)
€ 130.50
30
2433248B00
ref: 30
BUSHING,THIRD DRIVEN GEAR
2433248B00
€ 28.50
31
0916728001
ref: 31
WASHER,LOCK
0916728001
€ 3.00
32
0916728008
ref: 32
WASHER,LOCK
0916728008
€ 6.00
33
2434106B01
ref: 33
GEAR,FOURTH DRIVEN (NT:23)
2434106B01
€ 136.00
34-1
2435148B01
ref: 34-1
~E.NO. V706-107046,
GEAR,FIFTH DRIVEN
€ 132.00
34-2
2435148B02
ref: 34-2
E.NO.V706-107047-107
GEAR,FIFTH DRIVEN
€ 132.00
34-3
2435148B03
ref: 34-3
E.NO.V706-107342~,E.
GEAR,FIFTH DRIVEN
€ 132.00
34-4
2435148B04
ref: 34-4
MODEL R
GEAR,FIFTH DRIVEN (NT:21)
€ 132.00
35
0926320040
ref: 35
BEARING(20X34X20)
0926320040
€ 42.50
36
0422107209
ref: 36
PIN
0422107209
€ 1.50
37
0926225103
ref: 37
BEARING(25X62X19)
0926225103
€ 76.50
38
0939062006
ref: 38
C-RING
0939062006
€ 5.00
39
0928334005
ref: 39
SEAL,OIL(34X62X6)
0928334005
€ 14.50
40
2475127A01
ref: 40
RETAINER,DRIVE SHAFT OIL SEAL
2475127A01
€ 8.00
41-1
0110706107
ref: 41-1
MODEL J/K/L/M/N/P
BOLT
€ 2.00
41-2
0150006123
ref: 41-2
MODEL R
BOLT
0150006123
€ 2.00
42
2751048B00
ref: 42
SPROCKET,ENGINE(15T)
2751048B00
€ 53.50
43
0918025093
ref: 43
SPACER (25X34X19.7)
0918025093
€ 15.50
44
0915920004
ref: 44
NUT
0915920004
€ 12.00
45
0916725019
ref: 45
WASHER,LOCK
0916725019
€ 2.50
46
0928025001
ref: 46
O RING(D:1,ID:24.5)
0928025001
€ 2.50
47-1
2760048B10118
ref: 47-1
MODEL J
CHAIN ASSY
€ 313.50
47-2
2760048B10122
ref: 47-2
MODEL K/L/M/N/P/R
CHAIN ASSEMBLY,DRIVE 122LE
€ 452.50
