HEADLAMP (MODEL R)

GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53

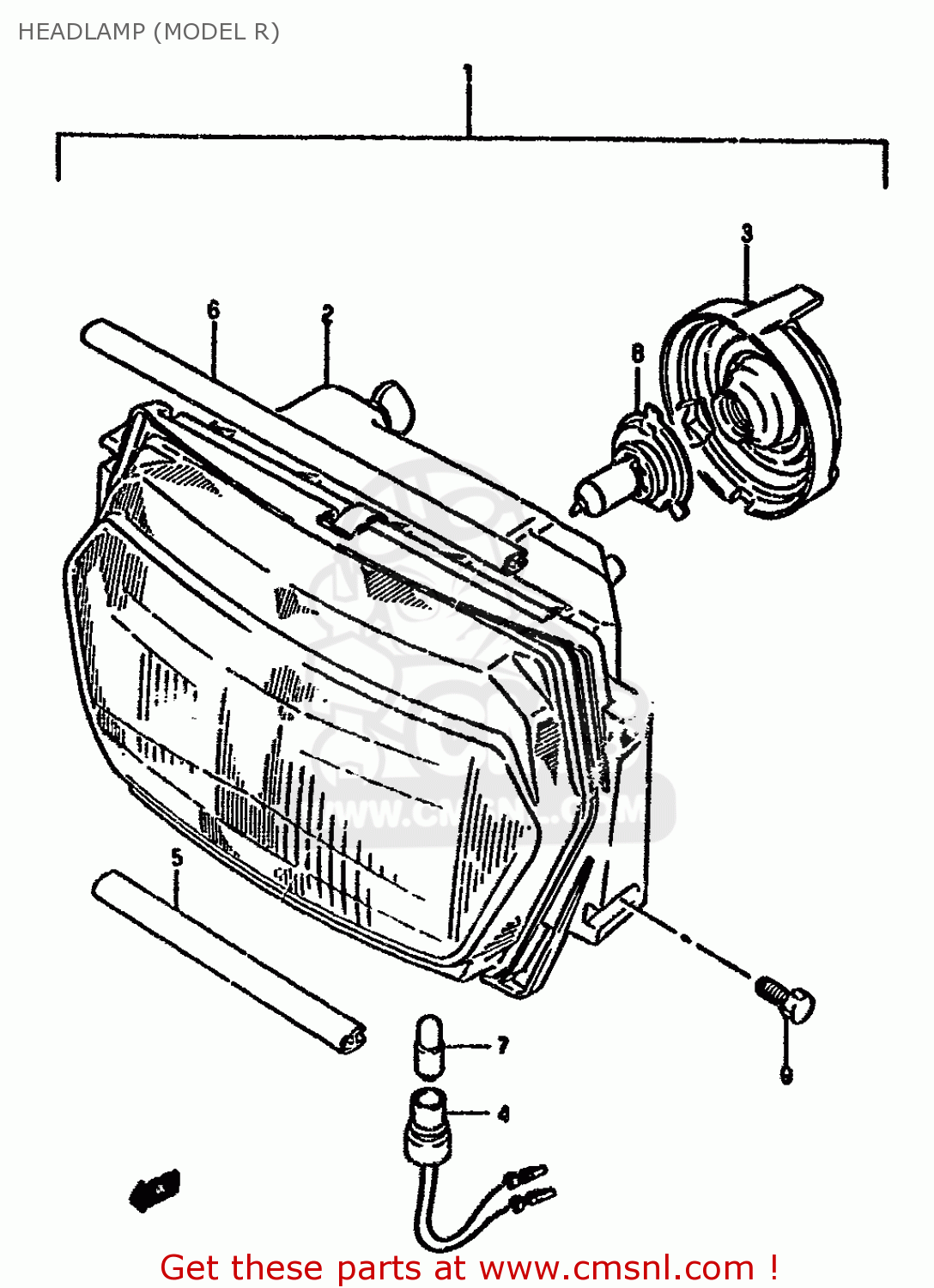

Headlamp (model r) diagram GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53

HEADLAMP (MODEL R) GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53
HEADLAMP (MODEL R) GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53
HEADLAMP (MODEL R) GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1-1
3510048B01
ref: 1-1
HEADLAMP ASSY
3510048B01
€ 267.50
1-2
3510048B41
ref: 1-2
E4
HEADLAMP ASSY
€ 290.50
1-3
3510048B51
ref: 1-3
E15,E17,E18,E21,E22,
HEADLAMP ASSY
3510048B51
€ 290.50
2-1
3512148B40
ref: 2-1
E4,E15,E17,E18,E21,E
UNIT,HEADLAMP
€ 199.50
2-2
3512148B00
ref: 2-2
UNIT
€ 175.00
3
3517348B00
ref: 3
COVER,SOCKET
3517348B00
€ 10.50
4
3611848B01
ref: 4
SOCKET
3611848B01
€ 9.50
5
3524248B00
ref: 5
GASKET,HEADLAMP,LOWER (NAS)
€ 5.50
6
3524348B00
ref: 6
GASKET,HEADLAMP,UPPER (NAS)
3524348B00
€ 5.50
7
0947112063
ref: 7
BULB(12V4W)
0947112063
€ 6.00
8-1
0947112061
ref: 8-1
E4,EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
8-2
0947112060
ref: 8-2
BULB(12V60/55W,H4)
0947112060
€ 8.00
9
0155006163
ref: 9
BOLT
0155006163
€ 2.50
7
0947112063
ref: 7
BULB(12V4W)
0947112063
€ 6.00
8-1
0947112061
ref: 8-1
E4,EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
8-2
0947112060
ref: 8-2
BULB(12V60/55W,H4)
0947112060
€ 8.00
9-1
0110706166
ref: 9-1
MODEL J/K/L
BOLT
€ 2.00
9-2
0117706166
ref: 9-2
MODEL M/N/P
BOLT
€ 2.00
10
0832121066
ref: 10
WASHER,LOCK
0832121066
€ 2.00
11
0832221066
ref: 11
WASHER, LOWER
0832221066
€ 2.00
