STARTER CLUTCH

GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53

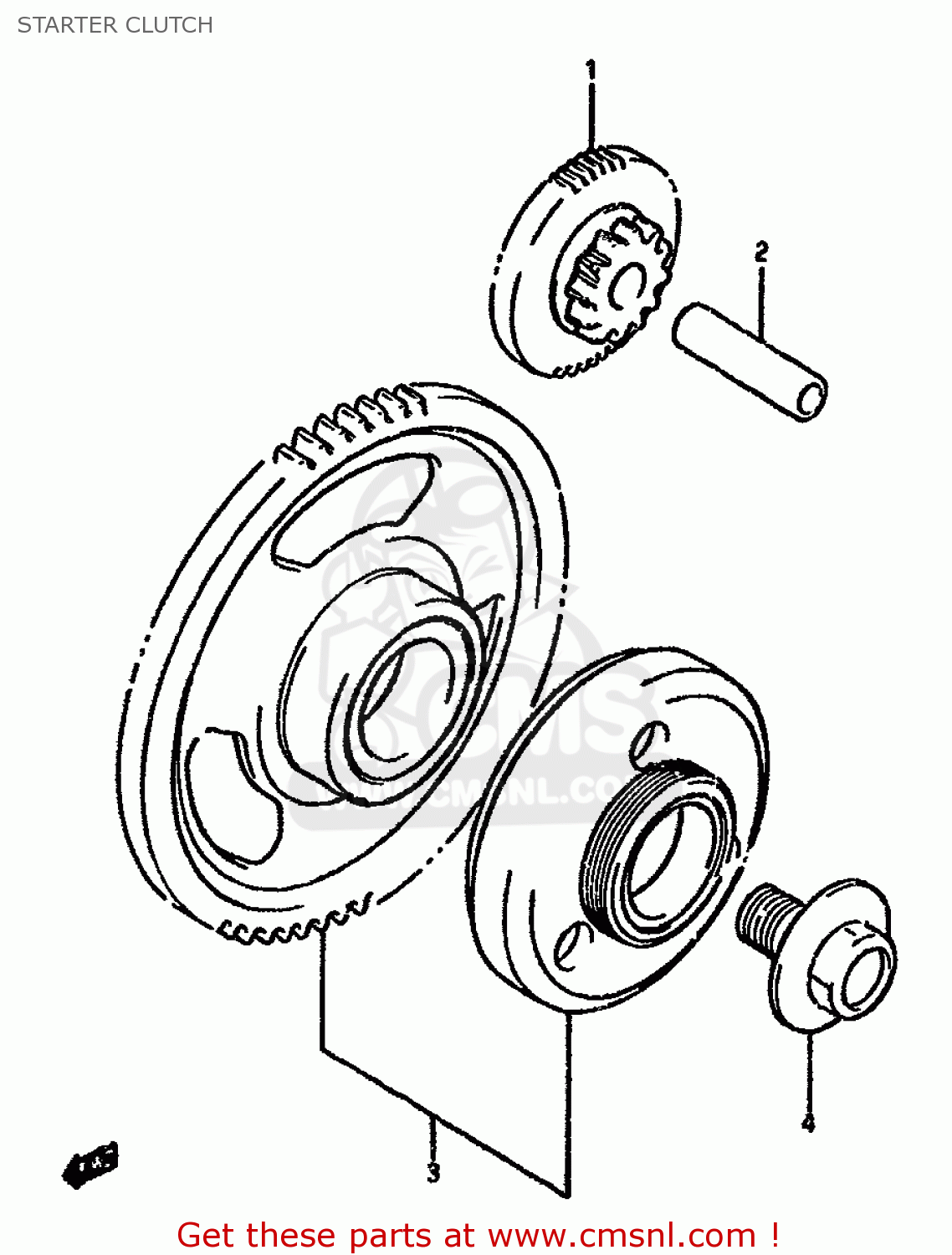

Starter clutch diagram GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53

STARTER CLUTCH GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53

STARTER CLUTCH GSX1100F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53

prices are in EUR

ref

part #

description

quantity

1

1261106B00
ref: 1

GEAR,STARTER IDLE(NT:12,53)

€ 68.50

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260048811
ref: 3

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
