FRONT CALIPERS (MODEL K/L/M/N)

GSX1100F 1990 (L) USA (E03)

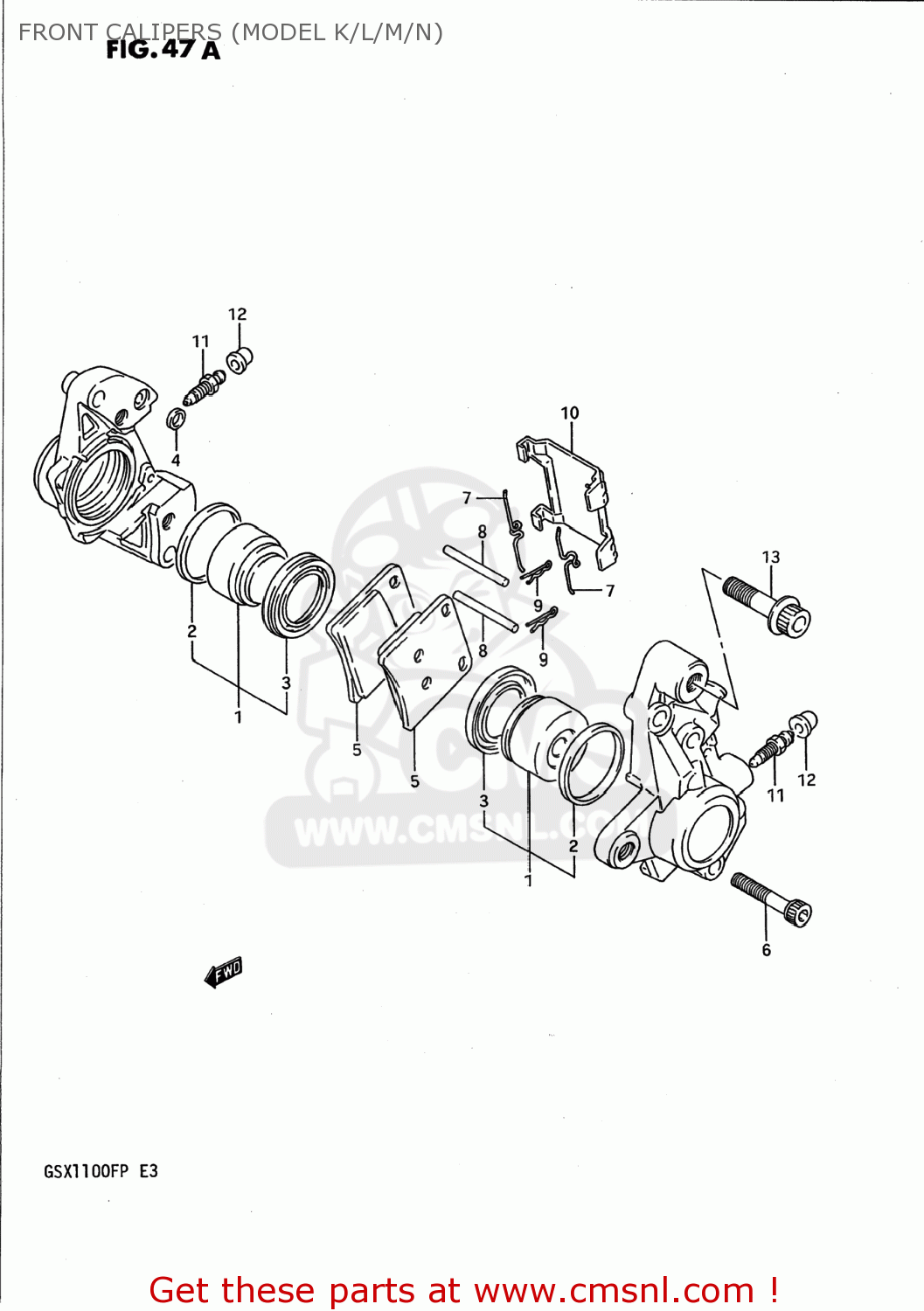

Front calipers (model k/l/m/n) diagram GSX1100F 1990 (L) USA (E03)

FRONT CALIPERS (MODEL K/L/M/N) GSX1100F 1990 (L) USA (E03)

FRONT CALIPERS (MODEL K/L/M/N) GSX1100F 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity



5910048B01
ref:
59100-48B03

CALIPER ASSEMBLY,FRONT,RIGHT

€ 393.50



5930048B01
ref:
59300-48B03

CALIPER ASSEMBLY,FRONT,LEFT

€ 472.00



5910048B02
ref:
59100-48B03

CALIPER ASSEMBLY,FRONT,RIGHT

€ 393.50



5910048B02
ref:
59100-48B03

CALIPER ASSEMBLY,FRONT,RIGHT

€ 393.50



5930048B02
ref:
59300-48B03

CALIPER ASSEMBLY,FRONT,LEFT

€ 472.00



5930048B02
ref:
59300-48B03

CALIPER ASSEMBLY,FRONT,LEFT

€ 472.00

1

5910048820
ref: 1
59100-48821

PISTON SET

€ 119.50

2

5910718410
ref: 2
69107-05CF0

SEAL,PISTON

€ 17.00

3

6910845000
ref: 3

BOOT,PISTON

€ 10.00

4

6910734200
ref: 4

SEAL,JOINT

€ 12.00

5

5913048B00
ref: 5
59100-19820

PAD

€ 43.00

6

5914500A00
ref: 6

BOLT,CALIPER

€ 18.00

7

6914345001
ref: 7

SPRING

€ 8.00

8

6914145000
ref: 8

PIN,PAD

€ 6.50

9

6914245000
ref: 9

CLIP,PAD PIN

€ 4.50

10

5915100A01
ref: 10

COVER,CALIPER

€ 13.00

11

5912118410
ref: 11

BLEEDER

€ 8.00

12

5912218410
ref: 12
55156-66310

CAP,BREATHER

€ 6.00

13

0910610051
ref: 13

BOLT L:38

€ 4.50

13

0910610051
ref: 13

BOLT L:38

€ 4.50
