FRONT DAMPER (MODEL K/L/M/N/P)
GSX1100F 1990 (L) USA (E03)

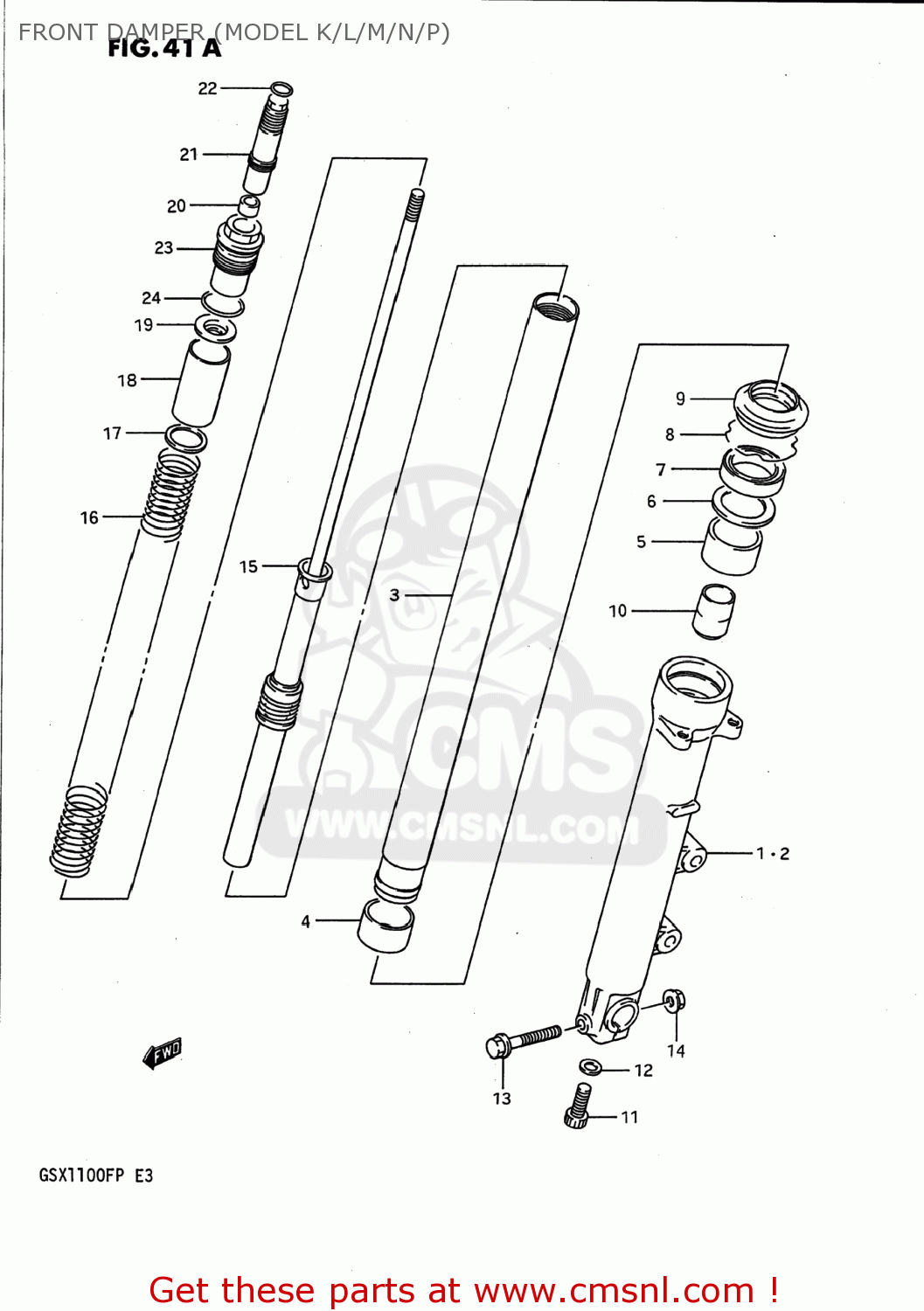

Front damper (model k/l/m/n/p) diagram GSX1100F 1990 (L) USA (E03)
FRONT DAMPER (MODEL K/L/M/N/P) GSX1100F 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110348B70
ref:
51103-48C01
DAMPER ASSEMBLY,RIGHT
€ 840.00
5110348C00
ref:
51103-48C01
DAMPER ASSEMBLY,RIGHT
€ 840.00
5110448B70
ref:
51104-48C01
DAMPER ASSEMBLY,LEFT
€ 527.50
5110448C00
ref:
51104-48C01
DAMPER ASSEMBLY,LEFT
€ 527.50
1-1
5113048B31
ref: 1-1
51130-48C01
TUBE,OUTER,RIGHT
€ 469.50
1-2
5113048C00
ref: 1-2
51130-48C01
TUBE,OUTER,RIGHT
€ 469.50
2-1
5114048B31
ref: 2-1
51140-48C01
TUBE,FORK,LEFT,OUTER
€ 508.50
2-2
5114048C00
ref: 2-2
51140-48C01
TUBE,OUTER,LEFT
€ 508.50
3
5111048B70
ref: 3
TUBE,INNER
€ 346.00
4
5112148B31
ref: 4
BUSH,SLIDE
€ 15.50
5
5115248B31
ref: 5
BUSH,GUIDE
€ 20.00
6
5116838B00
ref: 6
SPACER,SEAL
€ 5.00
7-1
5115312C00
ref: 7-1
51153-08D00
OIL SEAL,FRONT FORK
€ 15.50
7-2
5115308D00
ref: 7-2
SEAL,OIL
€ 15.50
8
5155638B00
ref: 8
CIRCLIP,FORK OIL SEAL
€ 4.50
9-1
5157138B00
ref: 9-1
51173-15D00
BOOT
€ 19.50
9-2
5117308D00
ref: 9-2
51173-15D00
DUST SEAL,FRONT FORK
€ 19.50
10
5119532C00
ref: 10
PIECE,OIL LOCK
€ 18.50
11
5114748130
ref: 11
BOLT(8X27)
€ 3.50
12
5114836011
ref: 12
GASKET (NAS)
€ 4.00
13
0151708558
ref: 13
01550-08557
BOLT 8X55
€ 3.00
14
0831616088
ref: 14
08316-10087
NUT
€ 2.50
15
5211048B70
ref: 15
DAMPER
€ 228.00
16
5117148B70
ref: 16
SPRING,FR FORK
€ 68.00
17
5119248B31
ref: 17
JOINT,SPRING
€ 3.50
18
5117612C10
ref: 18
COLLAR,SPRING(32.9X34X50)
€ 11.50
19
5117212C10
ref: 19
SEAT,SPRING,UPPER
€ 4.00
20
5182732C00
ref: 20
09140-10027
NUT,ROD
€ 1.50
21
5182848B70
ref: 21
ADJUSTER,SPRING
€ 48.50
22
5183417C00
ref: 22
09280-14011
O RING
€ 3.50
23
5118912C10
ref: 23
BOLT,FORK
€ 31.00
24
5111712C00
ref: 24
O RING
€ 3.00
