SIGNAL GENERATOR
GSX1100F 1990 (L) USA (E03)

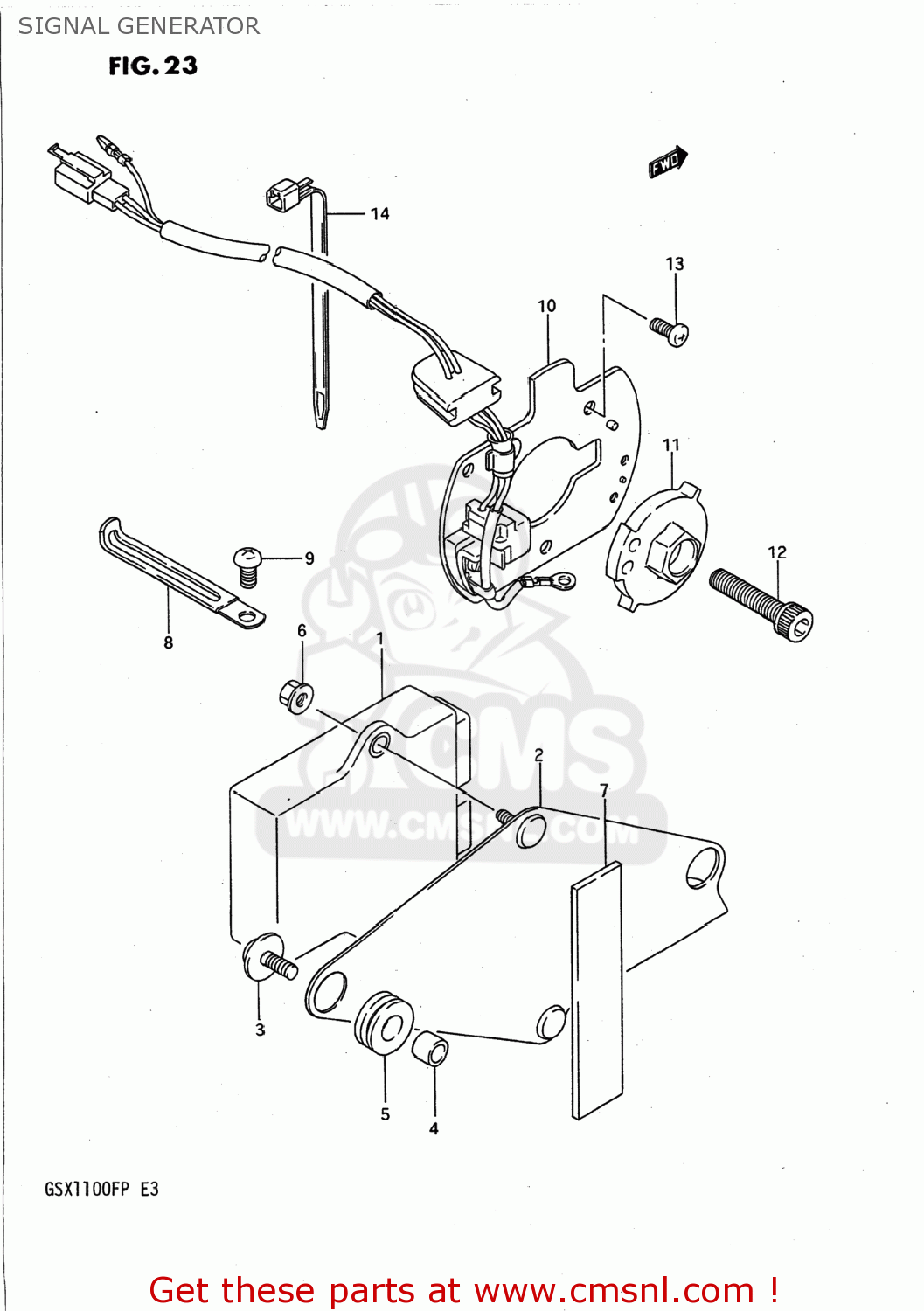

Signal generator diagram GSX1100F 1990 (L) USA (E03)
SIGNAL GENERATOR GSX1100F 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3290048B10
ref: 1-1
IGNITOR UNIT ASSY
€ 468.50
1-2
3290048B20
ref: 1-2
IGNITOR UNIT ASSY
€ 0.00
2
3293048B00
ref: 2
PLATE COMP,IGNITER
€ 14.00
3
0913606017
ref: 3
SCREW(6X16)
€ 2.50
4
0918006038
ref: 4
SPACER(6.1X9X7.5)
€ 2.00
5
0932008007
ref: 5
09320-08021
CUSHION
€ 4.00
6
0831616058
ref: 6
08316-1005A
NUT
€ 2.50
7
3365229100
ref: 7
33651-37000
PROTECTOR,20X9
€ 5.00
8-1
0940406417
ref: 8-1
09404-06433
CLAMP
€ 3.00
8-2
0940406403
ref: 8-2
09404-06432
CLAMP
€ 2.50
9
0211206087
ref: 9
SCREW
€ 2.00
10
3311019C00
ref: 10
33110-17C00
GENERATOR ASSEMBLY,SIGNAL
€ 324.00
11-1
3312019C00
ref: 11-1
33120-19C20
ROTOR,SIGNAL
€ 182.00
11-2
3312048B20
ref: 11-2
ROTOR,SIGNAL
€ 115.50
12
0711008306
ref: 12
07130-0830A
BOLT
€ 3.00
13
0211205107
ref: 13
SCREW
€ 2.00
14
0940714403
ref: 14
CLAMP(L:125)
€ 2.50
