REAR SWINGING ARM
GSX1100F 1990 (L) USA (E03)

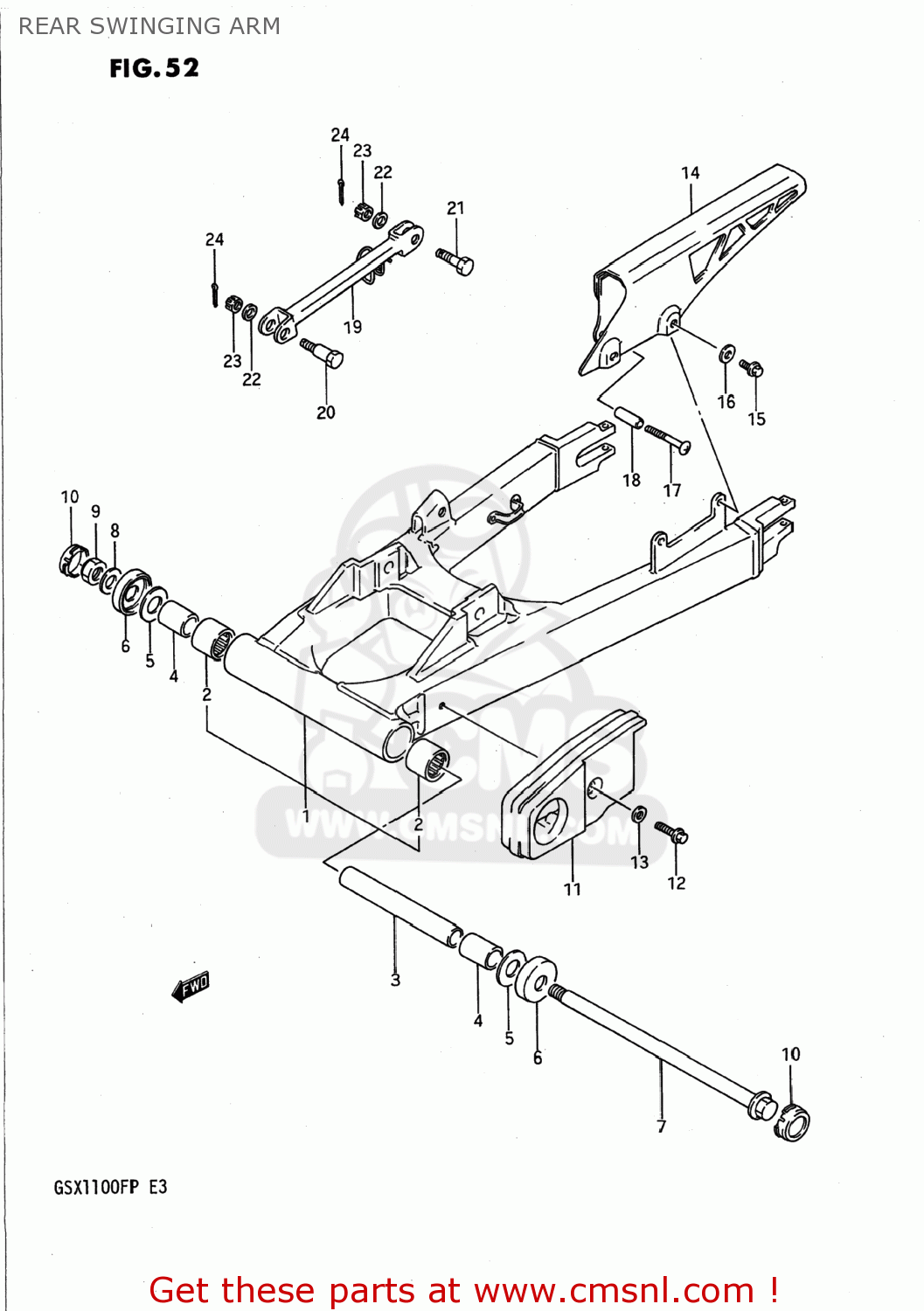

Rear swinging arm diagram GSX1100F 1990 (L) USA (E03)
REAR SWINGING ARM GSX1100F 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100048B10
ref: 1-1
SWING ARM ASSEMBLY,REAR
€ 1,016.50
1-2
6100048C00
ref: 1-2
SWING ARM ASSEMBLY,REAR
€ 1,068.00
2
0926325024
ref: 2
BEARING(25X33X30)
€ 31.50
3
6128248B00
ref: 3
SPACER,REAR SWING ARM PIVOT
€ 13.00
4
6125149000
ref: 4
SPACER,RR SWGARM PIVOT
€ 17.50
5
0821116381
ref: 5
WASHER
€ 2.50
6
6126249201
ref: 6
COVER,RR SWINGINGARM PIVOT
€ 8.50
7-1
6121148B11
ref: 7-1
SHAFT,REAR SWING ARM PIVOT
€ 44.50
7-2
6121120C00
ref: 7-2
SHAFT,REAR SWING ARM PIVOT
€ 35.00
8
0916014015
ref: 8
WASHER(14X27X3)
€ 4.00
9
0915914013
ref: 9
09159-14019
NUT
€ 8.50
10
6122248B00
ref: 10
CAP,RR SWINGING ARM PIVOT
€ 4.00
11
6127348B11
ref: 11
BUFFER,CHAIN TOUCH DEFENSE
€ 30.00
12
0151706207
ref: 12
01550-06207
BOLT 6X20
€ 2.50
13
0916906040
ref: 13
WASHER
€ 2.00
14
6131048B00
ref: 14
CASE,CHAIN
€ 51.50
15
0151706125
ref: 15
01550-0612A
BOLT 6X12
€ 2.50
16
0916906026
ref: 16
WASHER
€ 2.00
17
0214206558
ref: 17
02142-06557
SCREW
€ 2.50
18
0918006130
ref: 18
SPACER(6.5X10.5X40)
€ 10.00
19
6431048B10
ref: 19
TORQUELINK,RR
€ 19.50
20
0911110011
ref: 20
09111-10022-XC0
BOLT
€ 8.00
21
0910110039
ref: 21
BOLT
€ 0.00
22
0832211104
ref: 22
08322-0110A
WASHER 10MM
€ 2.50
23
0831441108
ref: 23
08314-4010B
NUT
€ 2.50
24
0411120208
ref: 24
04111-2020A
PIN 20X20
€ 1.50
