FRONT WHEEL

GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)

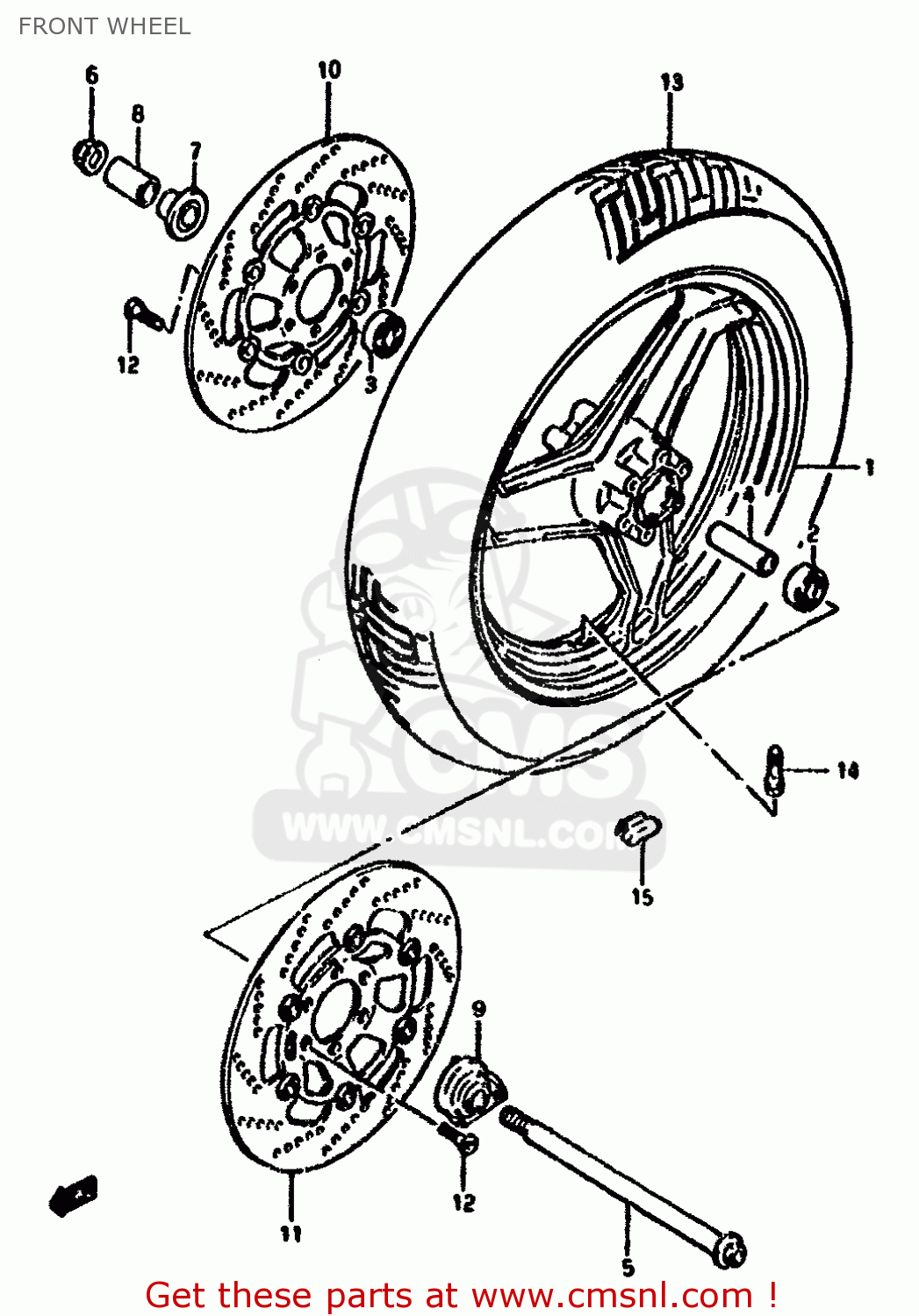

Front wheel diagram GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)

FRONT WHEEL GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)
FRONT WHEEL GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)
FRONT WHEEL GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
5411148B01291
ref: 1
WHEEL, FRONT (MT2.75X16) BLAC
€ 574.50
2
0926217034
ref: 2
BEARING(17X42X13)
0926217034
€ 44.00
3
0812363037
ref: 3
BEARING
0812363037
€ 16.00
4
0918017089
ref: 4
SPACER (17.3X24X78)
0918017089
€ 14.00
5-1
5471148B00
ref: 5-1
54711-48B10
AXLE,FRONT
5471148B00
€ 64.50
5-2
5471148B10
ref: 5-2
AXLE,FR
€ 64.50
6
0831931148
ref: 6
NUT
0831931148
€ 9.00
7
5474048B20
ref: 7
SPACER COMP,FRONT HUB,RIGHT
€ 14.00
8
5474148B30
ref: 8
SPACER,FRONT AXLE,RIGHT
€ 8.00
9
5460048B02
ref: 9
BOX ASSEMBLY,SPEEDOMETER GEAR
5460048B02
€ 108.00
10-1
5921048B00
ref: 10-1
MODEL J
DISC,BRAKE
€ 480.00
10-2
5921048B01
ref: 10-2
MODEL K
DISC,BRAKE
€ 480.00
10-3
5921048B11
ref: 10-3
MODEL L/M/N
DISC,FR BRAKE,R
€ 480.00
10-4
5921048B20
ref: 10-4
MODEL P/R
DISC,FR BRAKE,R
€ 480.00
11-1
5922048B00
ref: 11-1
MODEL J
DISC,BRAKE
€ 480.00
11-2
5922048B01
ref: 11-2
MODEL K
DISC,BRAKE
€ 480.00
11-3
5922048B11
ref: 11-3
MODEL L/M/N
DISC,FR BRAKE,L
€ 480.00
11-4
5922048B20
ref: 11-4
MODEL P/R
DISC,FR BRAKE,L
€ 480.00
12-1
0910608062
ref: 12-1
MODEL J/K/L/M/N
BOLT
0910608062
€ 6.00
12-2
0910608082
ref: 12-2
MODEL P
BOLT 8X33
0910608082
€ 6.00
12-3
0910608125
ref: 12-3
MODEL R
BOLT 8X33
0910608125
€ 6.00
13-1
5510048BA0
ref: 13-1
MODEL J ~F.NO.GV72C-
TIRE,FRONT
€ 151.00
13-2
5510048BB0
ref: 13-2
MODEL J F.NO.GV72C-1
TIRE,FRONT
€ 151.00
13-3
5510048BC0
ref: 13-3
MODEL K/L/M EXECUTED
TIRE,FRONT
€ 151.00
13-4
5511048BC0
ref: 13-4
MODEL N/P/R EXECUTED
TIRE 120/80VB16 V250,M
€ 151.00
14-1
4313075150
ref: 14-1
MODEL J, 43130-78030
VALVE,TIRE
€ 14.50
14-2
4313078030
ref: 14-2
VALVE,TIRE TR413 BS
4313078030
€ 14.50
14-3
4313024A00
ref: 14-3
MODEL K/L/M/N/P/R 43
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 7.00
14-4
4313024A11
ref: 14-4
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
15-1
5541100A00
ref: 15-1
BALANCER,WHEEL (10G)
€ 6.50
15-2
5541200A00
ref: 15-2
BALANCER,WHEEL
€ 7.00
15-3
5541300A00
ref: 15-3
BALANCER,WHEEL
€ 4.00
