STARTER CLUTCH

GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)

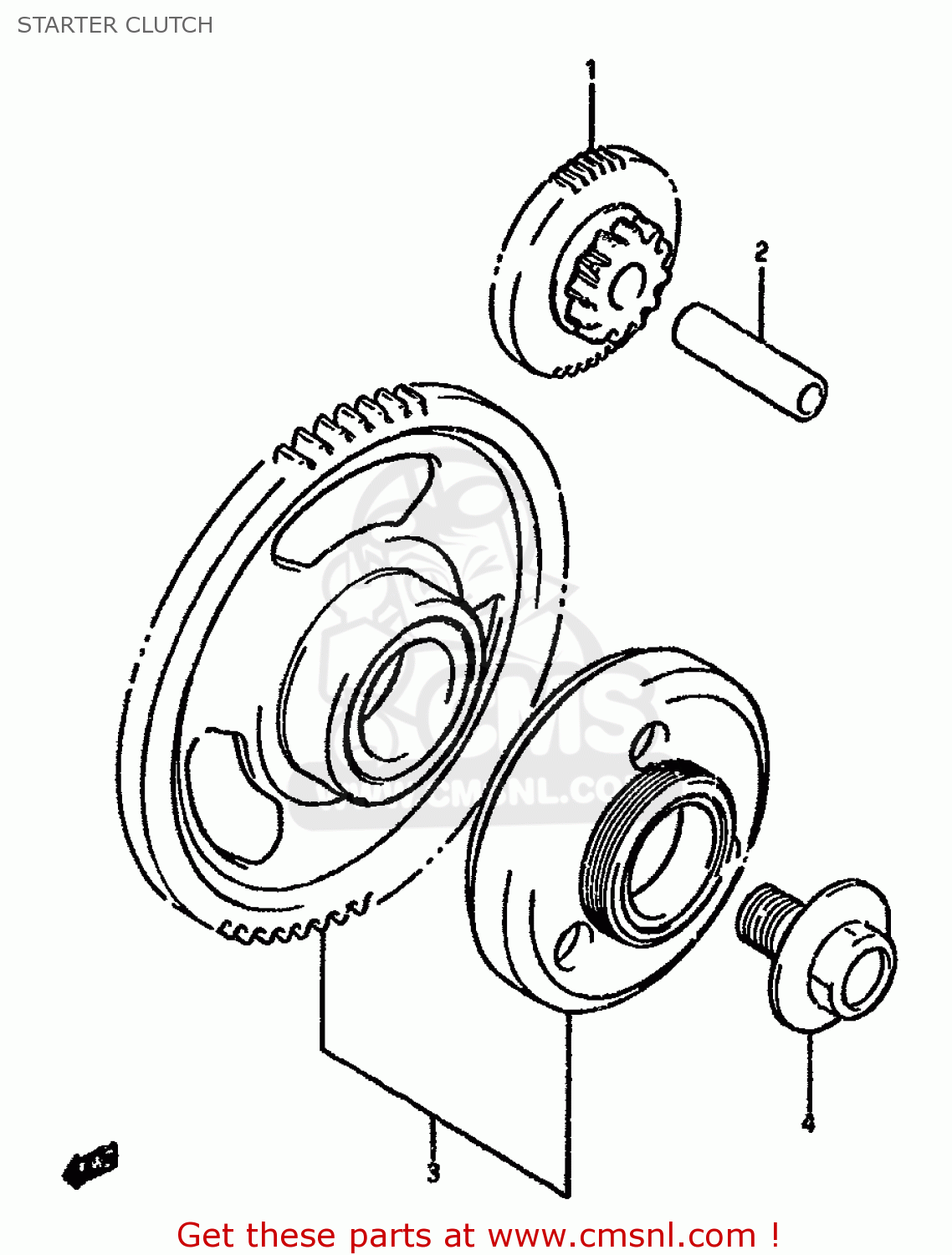

Starter clutch diagram GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)

STARTER CLUTCH GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)

STARTER CLUTCH GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

1

1261106B00
ref: 1

GEAR,STARTER IDLE(NT:12,53)

€ 68.50

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260048811
ref: 3

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
