SPEEDOMETER

GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)

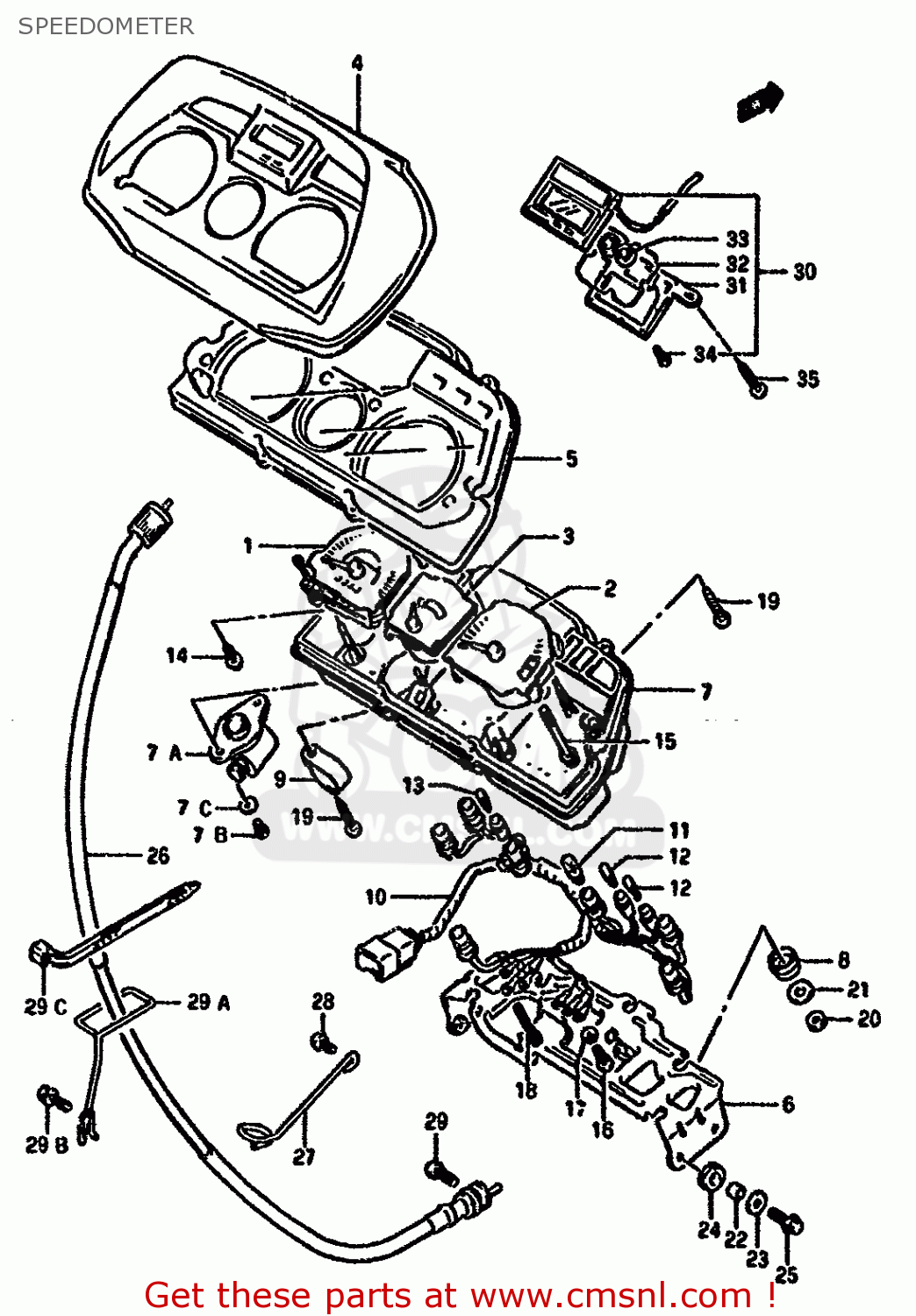

Speedometer diagram GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)

SPEEDOMETER GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)
SPEEDOMETER GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)
SPEEDOMETER GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
3411048B12
ref: 1-1
SPEEDOMETER
3411048B12
€ 471.50
1-2
3411048B33
ref: 1-2
34110-48B30
SPEEDOMETER
€ 157.00
2-1
3421048B11
ref: 2-1
MODEL J/K/L/M/N/P
TACHOMETER
3421048B11
€ 604.50
2-2
3421048B12
ref: 2-2
MODEL R
TACHOMETER
3421048B12
€ 604.50
3
3431048B10
ref: 3
METER,FUEL
€ 79.00
4-1
3415148B10
ref: 4-1
MODEL J
HOOD,METER
€ 117.50
4-2
3415148B60
ref: 4-2
MODEL K/L/M/N/P/R
VISOR
€ 117.50
5-1
3411248B10
ref: 5-1
MODEL J
GLASS ASSY
€ 139.50
5-2
3411248B60
ref: 5-2
MODEL K/L/M/N/P/R
GLASS ASSEMBLY
€ 139.50
5-3
3411248B30
ref: 5-3
MODEL J E2,E75
GLASS ASSEMBLY
€ 139.50
5-4
3411248B90
ref: 5-4
MODEL K/L/M/N/R E2
GLASS ASSEMBLY
€ 139.50
6
3495048B10
ref: 6
BRACKET,METER
€ 71.00
7
3411148B11
ref: 7
CASE
€ 103.50
7A
3413148B10
ref: 7A
GEAR BOX
3413148B10
€ 150.00
7B
0211234128
ref: 7B
SCREW
€ 2.00
7C
0916004014
ref: 7C
WASHER (4X16X1.2)
0916004014
€ 1.50
8
3418924A30
ref: 8
CUSHION
€ 4.00
9
3638548B10
ref: 9
CLAMP,METER
€ 2.50
10
3417548B10
ref: 10
SOCKET,METER
3417548B10
€ 96.00
11
0947112028
ref: 11
BULB(12V3.4W,T10)
0947112028
€ 3.50
12
0947112103
ref: 12
BULB(12V3W,T6.5)
0947112103
€ 2.50
13
0947112108
ref: 13
BULB(12V1.7W,T6.5)
0947112108
€ 2.00
14
0215204086
ref: 14
SCREW
€ 1.50
15
3428332B00
ref: 15
SCREW (4X36)
€ 2.00
16
0211203126
ref: 16
SCREW
€ 2.50
17
0832121036
ref: 17
LOCK WASHER
0832121036
€ 1.50
18
3438309400
ref: 18
SCREW(3X22)
3438309400
€ 2.50
19
0324104166
ref: 19
SCREW
€ 4.50
20
0831011057
ref: 20
NUT 5MM
0831011057
€ 2.50
21
0916005017
ref: 21
WASHER (5.5X16X1.2)
0916005017
€ 2.50
22-1
0918006027
ref: 22-1
MODEL J/K/L/M/N/P
SPACER (6.3X9.1X6.7)
0918006027
€ 3.00
22-2
0918006154
ref: 22-2
MODEL R
SPACER (6X9X8)
€ 2.00
23
0916006006
ref: 23
WASHER
0916006006
€ 2.00
24
0932008007
ref: 24
CUSHION
0932008007
€ 4.00
25
0151706206
ref: 25
BOLT 6X20
€ 2.50
26-1
3491042A00
ref: 26-1
MODEL J
CABLE ASSEMBLY,SPEEDOMETER
3491042A00
€ 32.50
26-2
3491048B00
ref: 26-2
MODEL K/L/M/N/P/R
CABLE ASSY,SPEEDOMETER
3491048B00
€ 32.50
27-1
3493845100
ref: 27-1
MODEL J
CLAMP,SPEEDOMETER CABLE
3493845100
€ 14.50
27-2
3493837000
ref: 27-2
MODEL K/L/M/N/P/R
GUIDE,SPEEDOMETER CABLE
3493837000
€ 14.50
28
0151706108
ref: 28
BOLT
0151706108
€ 2.50
29-1
0211205164
ref: 29-1
MODEL J/K/L/M/N/P
SCREW
0211205164
€ 2.00
29-2
0211205163
ref: 29-2
MODEL R
SCREW
0211205163
€ 2.00
29A
3493848B00
ref: 29A
MODEL K/L/M/N/P/R
GUIDE,SPEEDOMETER CABLE
3493848B00
€ 7.00
29B-1
0111706165
ref: 29B-1
MODEL K/L/M/N/P
BOLT
€ 2.50
29B-2
0155006163
ref: 29B-2
MODEL R
BOLT
0155006163
€ 2.50
29C
0940714403
ref: 29C
MODEL K/L/M/N/P/R
CLAMP(L:125)
0940714403
€ 2.50
30
3460048B00
ref: 30
CLOCK ASSEMBLY
3460048B00
€ 271.50
31
3465248B00
ref: 31
CASE,LOWER
€ 19.00
32
3465348B00
ref: 32
GASKET (NAS)
3465348B00
€ 6.00
33
3464948B00
ref: 33
BATTERY,LITHIUM
3464948B00
€ 15.00
34
3465548B00
ref: 34
SCREW,TAPPING
€ 1.00
35
0913203008
ref: 35
SCREW(3X16)
0913203008
€ 1.50
