PILLION RIDER HANDLE

GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)

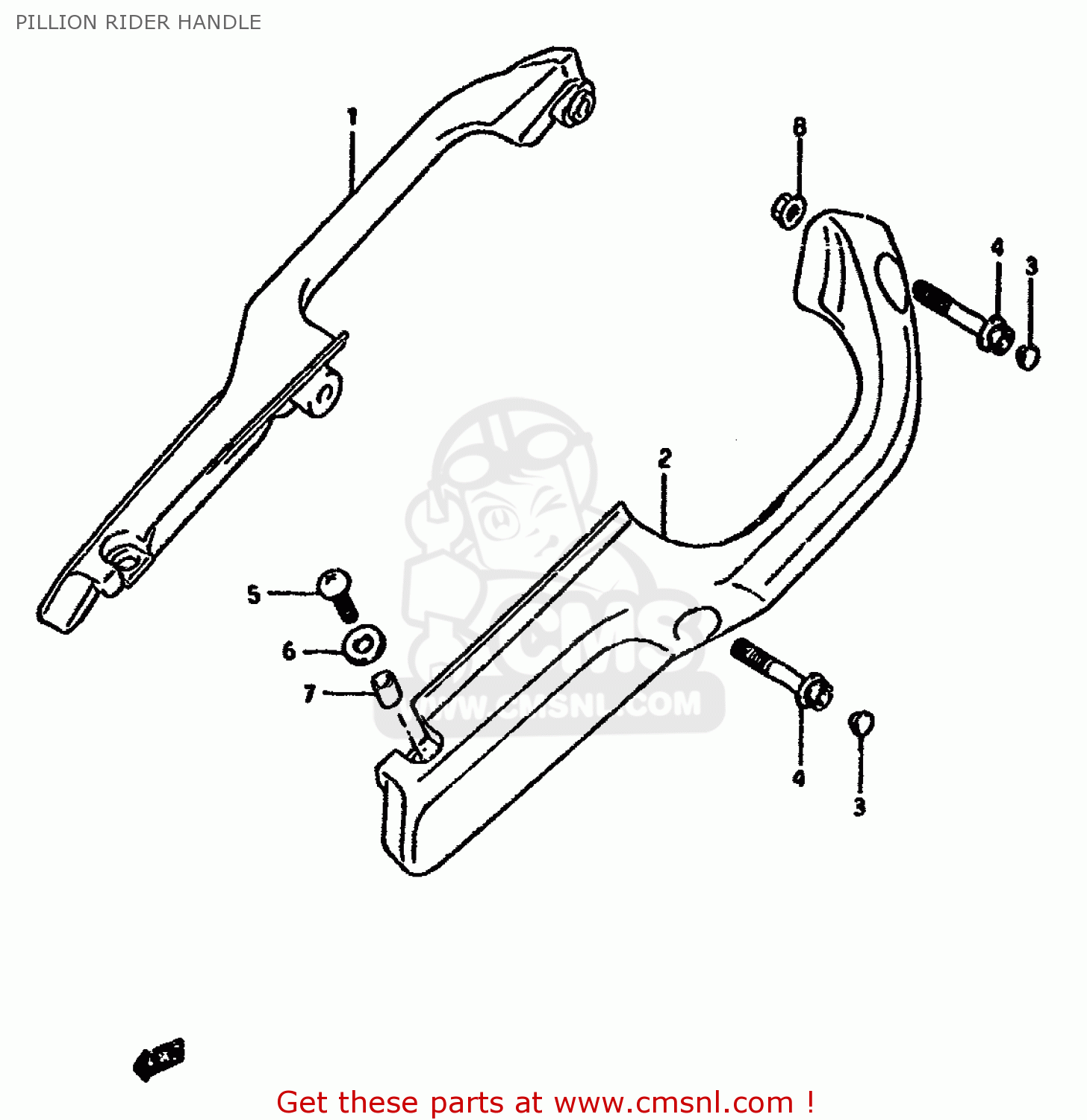

Pillion rider handle diagram GSX1100F 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

4621148B10
ref: 1

HANDLE,PILLION RIDER,RIGHT

€ 102.00

4622148B10
ref: 2

HANDLE,PILLION RIDER,LEFT

€ 100.50

4621348B00
ref: 3

HANDLE,PILLION RIDER

€ 1.50

4-1

0712008455
ref: 4-1
MODEL J/K/L/M/N/P

BOLT 8X45

€ 3.50

4-2

0712008453
ref: 4-2
MODEL R

BOLT

€ 3.50

5-1

0214206205
ref: 5-1
MODEL J/K/L

SCREW, CENTER

€ 2.00

5-2

0913606105
ref: 5-2
MODEL M/N/P/R

SCREW(6X20)

€ 2.00

0916006069
ref: 6

WASHER

€ 2.00

0918006154
ref: 7

SPACER (6X9X8)

€ 2.00

8-1

0831616085
ref: 8-1
MODEL J/K/L/M/N/P

NUT 8MM

€ 3.00

8-2

0831610083
ref: 8-2
MODEL R

NUT

€ 3.00
