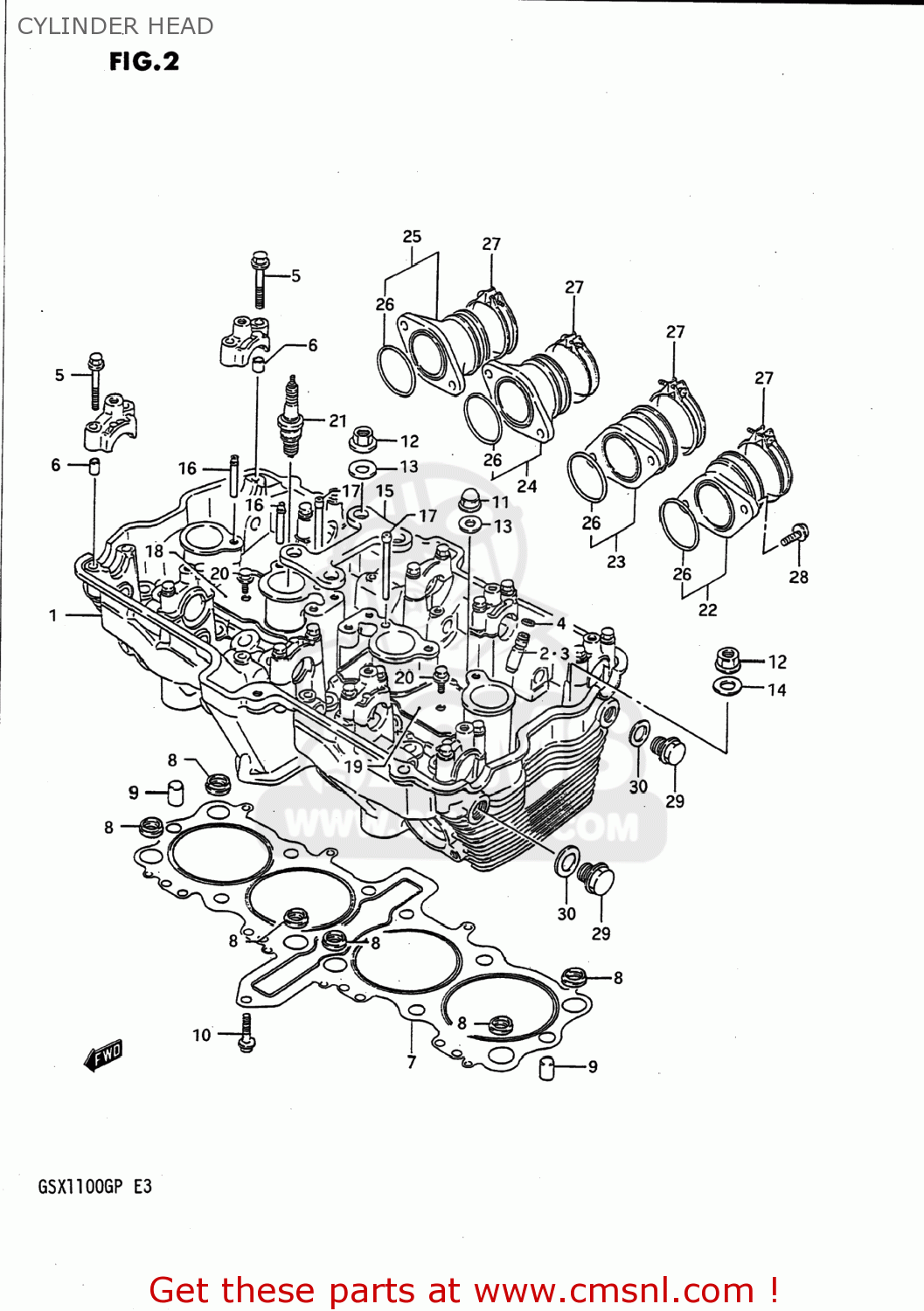

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110026D00
ref: 1-1

HEAD ASSEMBLY,CYLINDER

€ 1,530.00

1-2

1110026D10
ref: 1-2

HEAD ASSEMBLY,CYLINDER

€ 997.50

2

1111606B70
ref: 2

GUIDE,VALVE

€ 43.00

3

1111606B70
ref: 3

GUIDE,VALVE

€ 43.00

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7-1

1114148B20
ref: 7-1
11141-48B22

GASKET,CYLINDER HEAD (NAS)

€ 91.00

7-2

1114148B21
ref: 7-2
11141-48B22

GASKET,CYLINDER HEAD (NAS)

€ 91.00

8

1114348B01
ref: 8
11143-32F00

O-RING,HEAD GASKET

€ 6.00

9

0920911007
ref: 9

PIN

€ 16.00

10

0151706305
ref: 10
01550-0630A

BOLT 6X30

€ 2.50

11

0915910069
ref: 11

NUT

€ 5.00

12

0831616106
ref: 12
08316-1010B

NUT

€ 2.00

13

0916810031
ref: 13

GASKET(10.2X20X2).3 (NAS)

€ 2.00

14

0916010060
ref: 14
09160-10039

WASHER (10.5X22X2.3)

€ 2.50

15

1113840C10
ref: 15

PLATE,HEAD REINFORCEMENT

€ 27.00

16

1113127A00
ref: 16

PIPE,OIL NO.1

€ 6.00

17

1113327A00
ref: 17

PIPE,OIL NO.3

€ 7.00

18

1113527A02
ref: 18

PLATE,OIL PIPE,R

€ 4.00

19

1113627A02
ref: 19

PLATE,OIL PIPE,L

€ 4.00

20

0151706128
ref: 20
01550-06127

BOLT

€ 2.50

21-1

0948200389
ref: 21-1

PLUG,SPARK(JR9B)

€ 8.00

21-2

0948200491
ref: 21-2

PLUG,SPARK(JR8B)

€ 8.00

21-3

0948200391
ref: 21-3

PLUG,SPARK(JR10B)

€ 9.00

22

1310140C00
ref: 22

PIPE,INTAKE NO.1

€ 43.50

23

1310240C00
ref: 23

PIPE,INTAKE NO.2

€ 43.50

24

1310340C00
ref: 24

PIPE,INTAKE NO.3

€ 43.50

25

1310440C00
ref: 25

PIPE,INTAKE NO.4

€ 38.00

26

0928040010
ref: 26

O RING(D:2.4,ID:39.7)

€ 3.50

27

0940252208
ref: 27

CLAMP

€ 5.50

28

0215206165
ref: 28
02112-0616A

SCREW

€ 2.00

29

0924714034
ref: 29

PLUG

€ 3.50

30

0916814004
ref: 30

GASKET(14X19.2X2) (NAS)

€ 2.50

all assemblies
