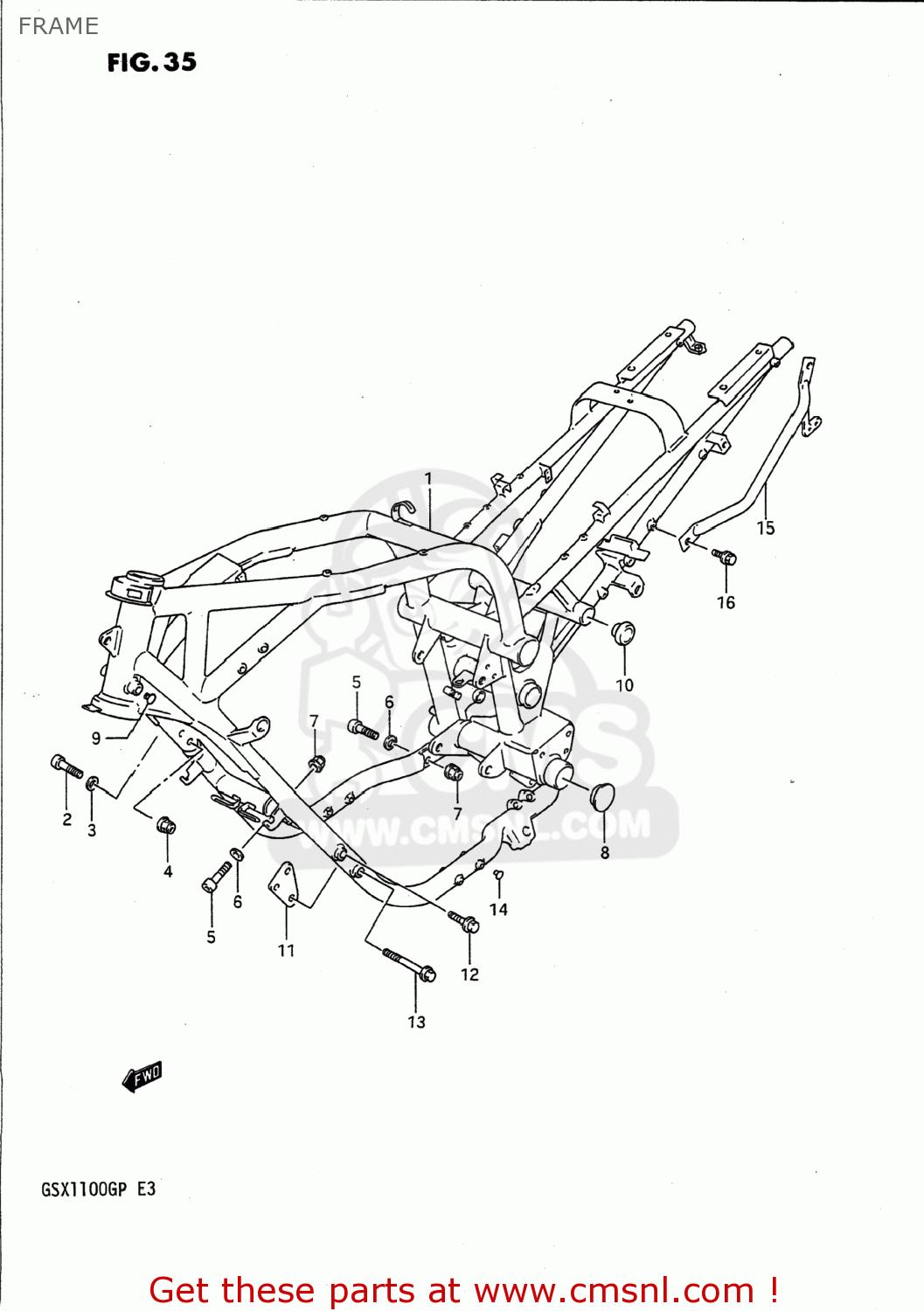

FRAME

ref

part #

description

quantity

1-1

4110026D20019
ref: 1-1
41100-26D31-019

FRAME

€ 1,590.00

1-2

4110026D21019
ref: 1-2
41100-26D31-019

FRAME

€ 1,590.00

1-3

4110026D30019
ref: 1-3
41100-26D31-019

FRAME

€ 1,590.00

1-4

4110026D31019
ref: 1-4

FRAME

€ 1,590.00

2

0910610033
ref: 2
09106-10033-XC0

BOLT 10X38

€ 2.50

3

0916410005
ref: 3
09164-10010

WASHER

€ 6.50

4

0831931105
ref: 4
08319-3110A

NUT 10MM

€ 3.00

5

0910610019
ref: 5

BOLT(10X33)

€ 4.00

6

0916410005
ref: 6
09164-10010

WASHER

€ 6.50

7

0831931105
ref: 7
08319-3110A

NUT 10MM

€ 3.00

8

4358526D00
ref: 8

CAP,BODY TUBE

€ 5.50

9

0925009001
ref: 9

CAP(OD:14)

€ 1.00

10

0925035003
ref: 10

CAP(OD:45)

€ 3.00

11

4191126D00
ref: 11

PLATE,ENGINE MOUNTING NO.1

€ 14.50

12-1

0151708504
ref: 12-1
01550-0850B

BOLT, UPPER

€ 2.50

12-2

0711008505
ref: 12-2
07130-0850A

BOLT

€ 3.50

13-1

0151708605
ref: 13-1
01550-0860A

BOLT 8X60

€ 3.50

13-2

0711008605
ref: 13-2
07130-0860B

BOLT, LOWER

€ 4.50

14

0925008016
ref: 14

CAP(OD:12)

€ 2.50

15-1

4397026D10
ref: 15-1

GRIP COMP,REAR,RIGHT

€ 39.00

15-2

4398026D10
ref: 15-2

GRIP COMP,REAR,LEFT

€ 0.00

16

0151708167
ref: 16
01550-08167

BOLT 8X16

€ 3.00
