REAR COMBINATION LAMP
GSX1100G 1991 (M) USA (E03)

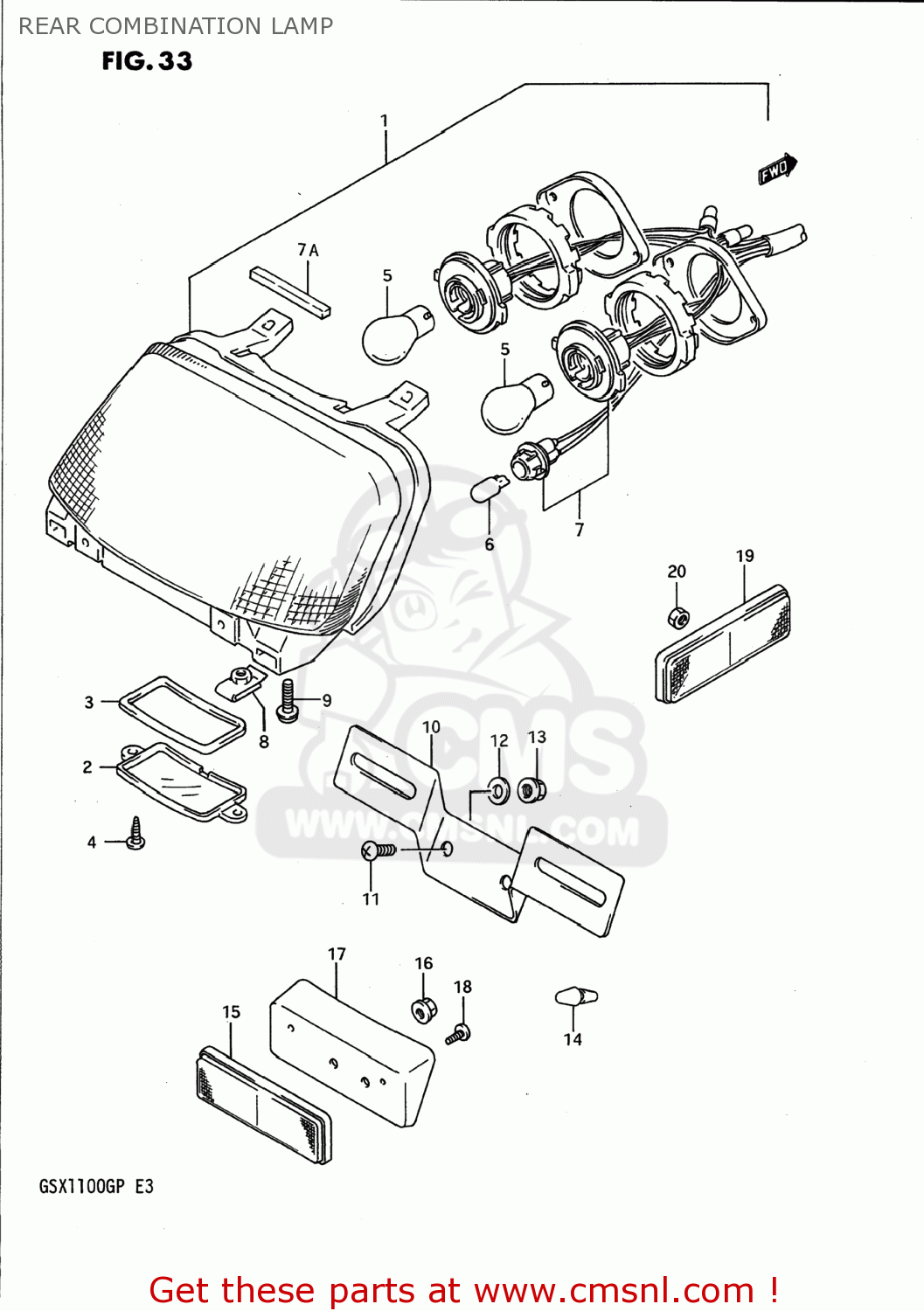

Rear combination lamp diagram GSX1100G 1991 (M) USA (E03)
REAR COMBINATION LAMP GSX1100G 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571026D00
ref: 1
LAMP ASSY,RR COMBINATION
€ 299.50
2
3591226D00
ref: 2
LENS,LICENSE
€ 7.50
3
3591326D00
ref: 3
GASKET (NAS)
€ 3.50
4
0321104126
ref: 4
03211-0412A
SCREW
€ 1.50
5
0947112083
ref: 5
09471-12128
BULB(12V21/5W)
€ 6.00
6
0947112081
ref: 6
BULB(12V5W)
€ 1.50
7
3571826D00
ref: 7
CORD ASSEMBLY
€ 30.50
7A
5631416B00
ref: 7A
CUSHION,HANDLE COVER
€ 2.00
8
9448432B00
ref: 8
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
9
0214215205
ref: 9
02142-0520B
SCREW
€ 2.00
10
3592748B30
ref: 10
BRACKET,LICENSE PLATE
€ 15.00
11
0211206164
ref: 11
02112-0616A
SCREW
€ 2.00
12
0916006031
ref: 12
09160-06125
WASHER (6.3X14X1.6)
€ 2.00
13
0831616066
ref: 13
08316-1006B
NUT
€ 2.50
14
0932106023
ref: 14
CUSHION
€ 2.00
15
3597000A21
ref: 15
35970-00A10
REFLECTOR ASSEMBLY,REAR
€ 22.00
16
0831626056
ref: 16
08316-2005A
NUT
€ 2.00
17
3597712C00
ref: 17
SPACER,RR RR
€ 8.00
18
0354104125
ref: 18
03541-0412A
SCREW
€ 1.50
19
3597000A21
ref: 19
35970-00A10
REFLECTOR ASSEMBLY,REAR
€ 22.00
20-1
0831022055
ref: 20-1
09140-05006
NUT 5MM
€ 2.00
20-2
0831011056
ref: 20-2
08310-0005A
NUT
€ 2.50
