Buy Suzuki GSX Parts Online


CLUTCH (MODEL K2/K3)

GSX1300RZ HAYABUSA 2000 (Y) USA (E03)

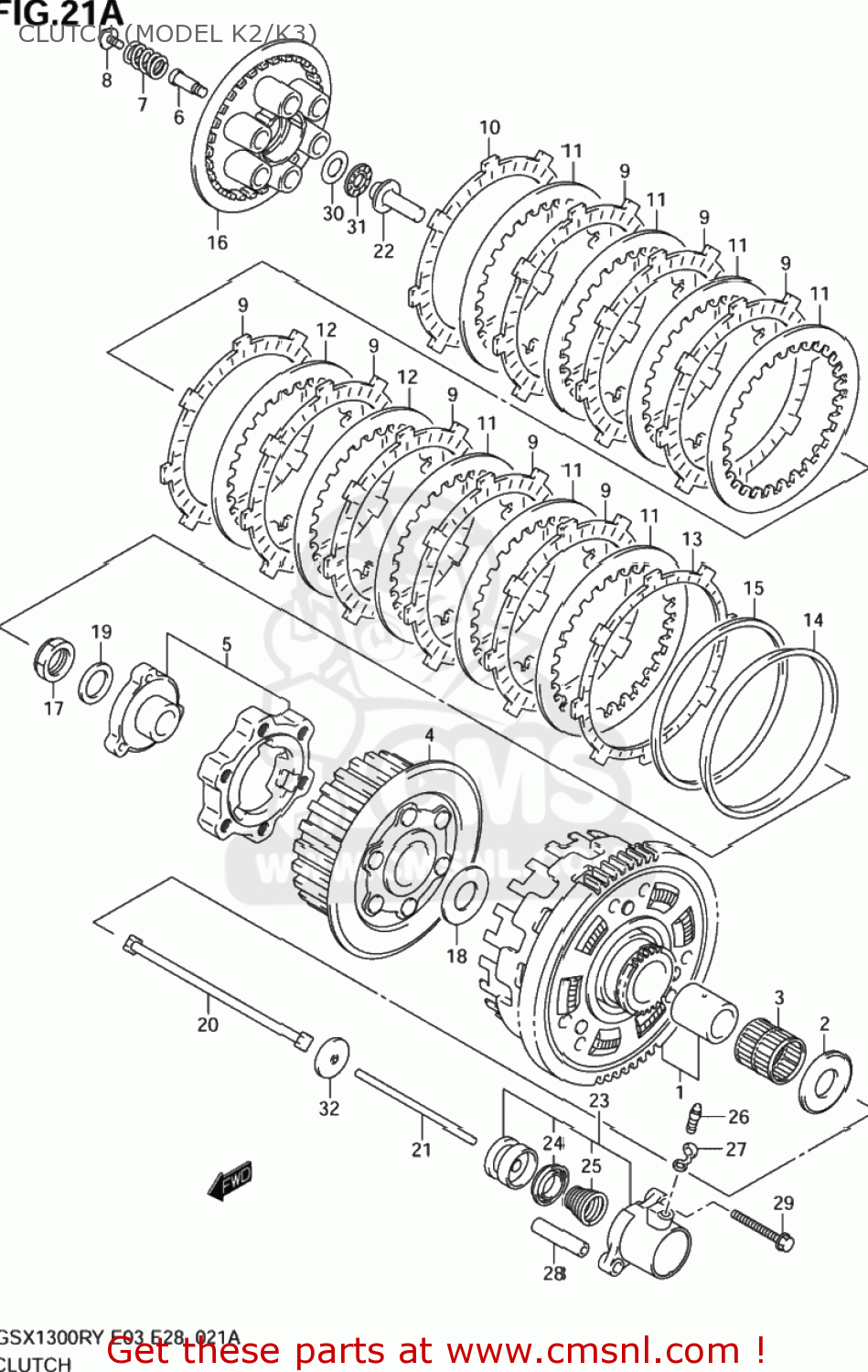

Clutch (model k2/k3) diagram GSX1300RZ HAYABUSA 2000 (Y) USA (E03)

CLUTCH (MODEL K2/K3) GSX1300RZ HAYABUSA 2000 (Y) USA (E03)
CLUTCH (MODEL K2/K3) GSX1300RZ HAYABUSA 2000 (Y) USA (E03)
CLUTCH (MODEL K2/K3) GSX1300RZ HAYABUSA 2000 (Y) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2120024830
ref: 1
GEAR ASSY,PRI DRIVEN
€ 397.00
2
0916025037
ref: 2
WASHER(25X54X2.5)
0916025037
€ 9.00
3
0926335013
ref: 3
BEARING(35X40X39.8)
0926335013
€ 29.00
4
2141024F00
ref: 4
HUB,CLUTCH SLEEVE
2141024F00
€ 122.00
5
2161002F12
ref: 5
CAM SET,CLUTCH
2161002F12
€ 174.00
6
2148102F11
ref: 6
21481-02F12
BOLT,CLUTCH SPRING SUPPORT
€ 9.50
7
2141324F10
ref: 7
SPRING CLUTCH
2141324F10
€ 6.00
8
2148202F11
ref: 8
21482-02F12
BOLT,CLUTCH SPRING
2148202F11
€ 3.50
9
2144124F20
ref: 9
21441-24F00
PLATE,CLUTCH DRIVE NO.1 (NAS)
2144124F20
€ 21.00
10
2144124F10
ref: 10
PLATE,CLUTCH DRIVE NO.2 (NAS)
2144124F10
€ 18.50
11
2145124F00
ref: 11
PLATE,CLUTCH DRIVEN NO.1(T:2.0 (NAS)
2145124F00
€ 7.50
12
2145124F10
ref: 12
PLATE,CLUTCH DRIVEN NO.2(T:2.3 (NAS)
2145124F10
€ 7.50
13
2144224F00
ref: 13
PLATE,CLUTCH DRIVE NO.3 (NAS)
2144224F00
€ 16.00
14
2147124F00
ref: 14
SEAT,WAVE WASHER
2147124F00
€ 12.00
15
2147224F00
ref: 15
WASHER,CLUTCH PLATE WAVE
2147224F00
€ 12.50
16
2146224F00
ref: 16
DISC,CLUTCH PRESSURE
2146224F00
€ 45.50
17
0915924010
ref: 17
NUT
0915924010
€ 11.00
18
0916025056
ref: 18
WASHER(25X50X2.5)
0916025056
€ 9.50
19
0916424006
ref: 19
WASHER
0916424006
€ 4.00
20
2311024F00
ref: 20
ROD,CLUTCH
2311024F00
€ 17.50
21
2311126D00
ref: 21
ROD,CLUTCH PUSH,L
2311126D00
€ 14.00
22
2312131E00
ref: 22
PIECE,CLUTCH PUSH
2312131E00
€ 18.50
23
2316006B02
ref: 23
CYLINDER,CLUTCH RELEASE
2316006B02
€ 122.50
24
2316306B00
ref: 24
CUP
2316306B00
€ 5.50
25
2316405A00
ref: 25
SPRING,CLUTCH CYLINDER
2316405A00
€ 3.50
26
5912101A00
ref: 26
BLEEDER
5912101A00
€ 8.50
27
5912201A00
ref: 27
CAP,BLEEDER
5912201A00
€ 4.50
28
0421109129
ref: 28
PIN
0421109129
€ 2.00
29
0713006253
ref: 29
07130-0625B
BOLT,CL.COVER
0713006253
€ 3.00
30
0916015045
ref: 30
WASHER(15.5X28X1)
0916015045
€ 4.00
31
0926315003
ref: 31
BEARING(15X28X2)
0926315003
€ 7.00
32
0928506015
ref: 32
SEAL,OIL(6X34X5.5)
0928506015
€ 8.50
