CYLINDER HEAD COVER

GSX1300RZ HAYABUSA 2000 (Y) USA (E03)

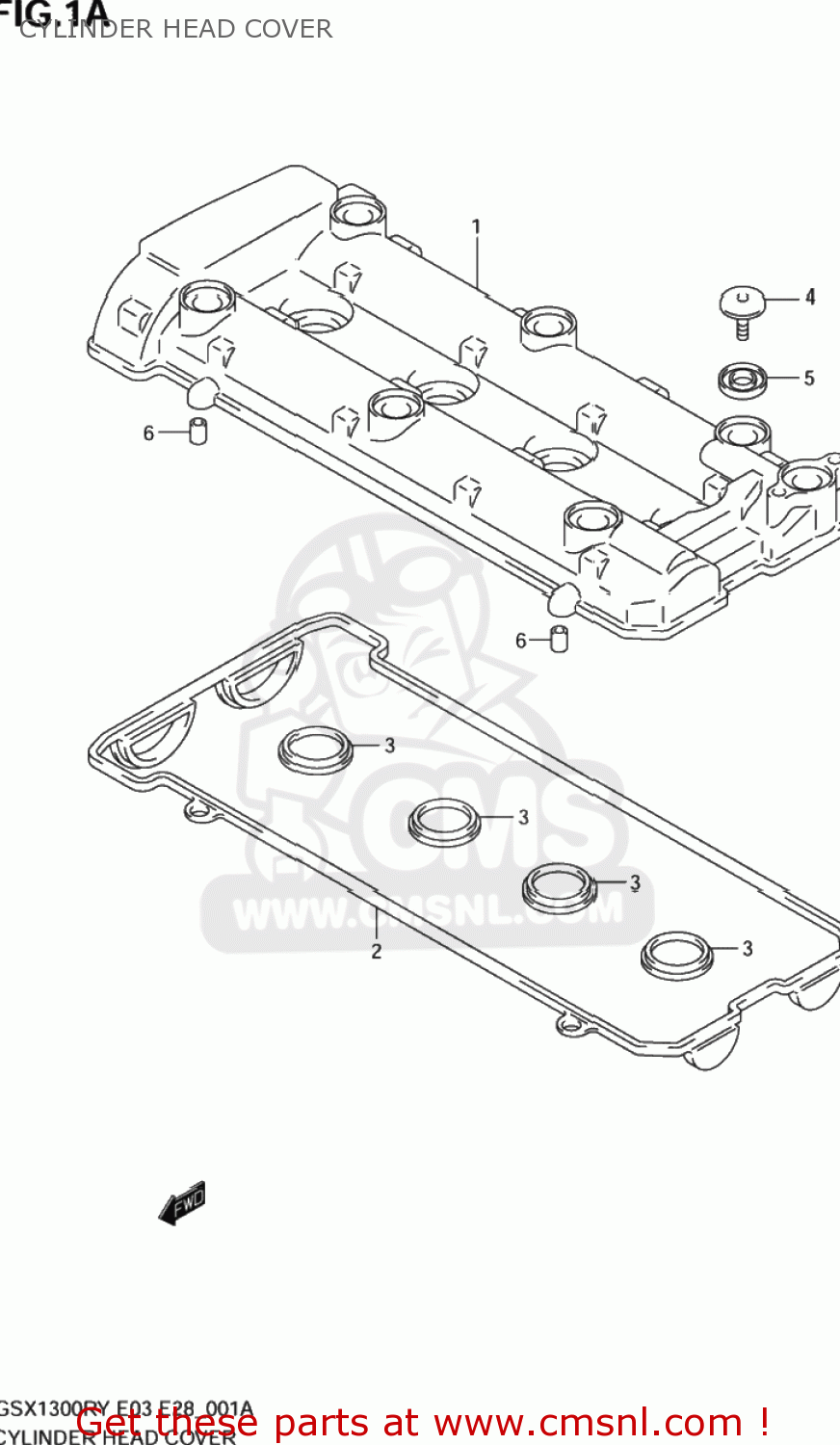

Cylinder head cover diagram GSX1300RZ HAYABUSA 2000 (Y) USA (E03)

CYLINDER HEAD COVER GSX1300RZ HAYABUSA 2000 (Y) USA (E03)

CYLINDER HEAD COVER GSX1300RZ HAYABUSA 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1117124F00
ref: 1

COVER,CYLINDER HEAD

€ 585.50

2

1117324F00
ref: 2

GASKET,CYL HEAD COVER NO.1 (NAS)

€ 43.50

3

1117833E00
ref: 3

GASKET,CYL HEAD COVER NO.2

€ 5.50

4

0910607009
ref: 4

BOLT(7X17.5)

€ 4.50

5

0916111008
ref: 5

WASHER(10.6X25.5X2.3)

€ 4.50

6

0422108149
ref: 6

PIN

€ 2.50
