STARTER CLUTCH (MODEL K3)

GSX1300RZ HAYABUSA 2000 (Y) USA (E03)

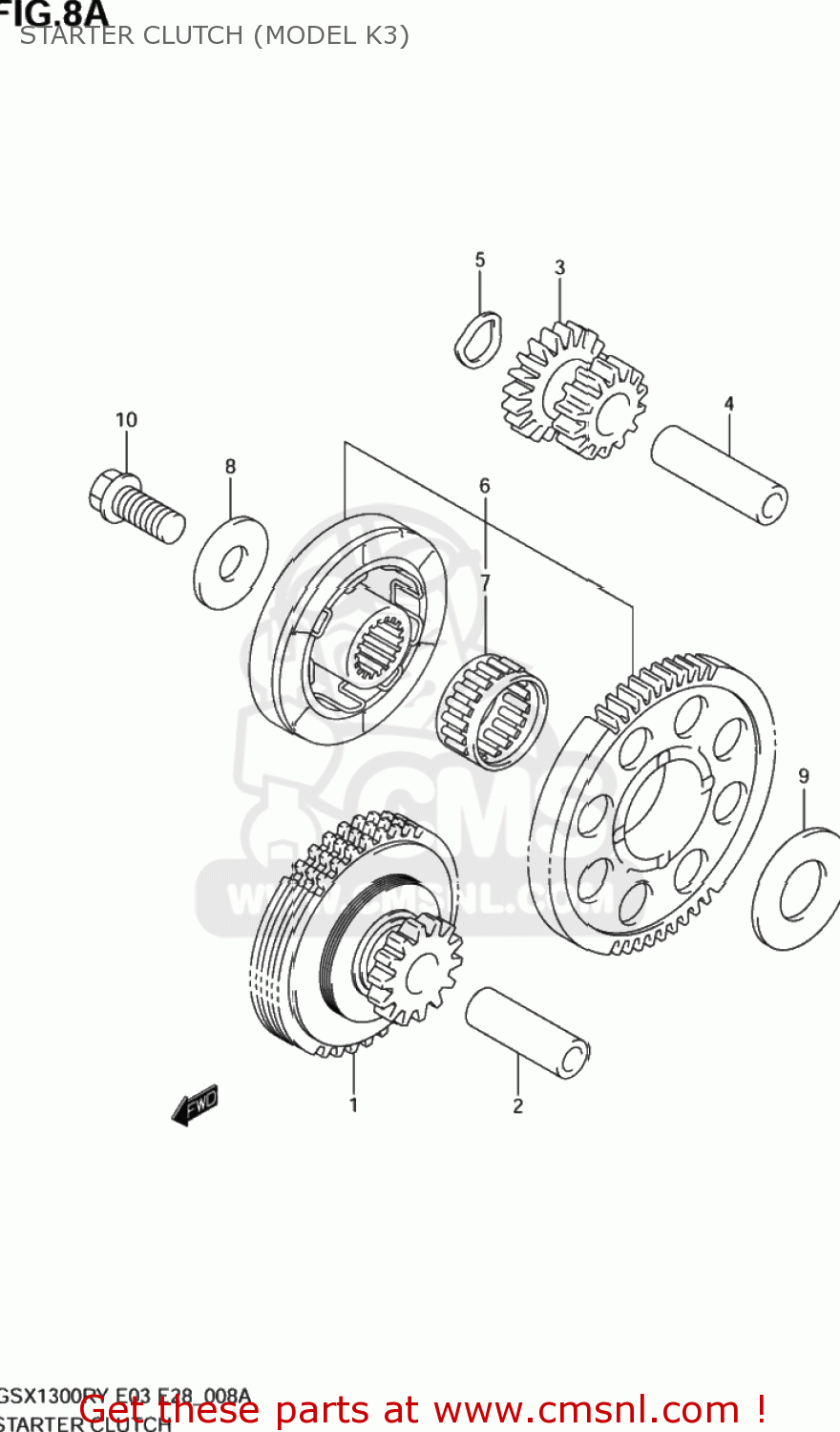

Starter clutch (model k3) diagram GSX1300RZ HAYABUSA 2000 (Y) USA (E03)

STARTER CLUTCH (MODEL K3) GSX1300RZ HAYABUSA 2000 (Y) USA (E03)
STARTER CLUTCH (MODEL K3) GSX1300RZ HAYABUSA 2000 (Y) USA (E03)
STARTER CLUTCH (MODEL K3) GSX1300RZ HAYABUSA 2000 (Y) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1260024F00
ref: 1
LIMITER ASSY,START ID GR NO.1
1260024F00
€ 180.00
1
1260024F00
ref: 1
LIMITER ASSY,START ID GR NO.1
1260024F00
€ 180.00
2
1261524F00
ref: 2
PIN,STARTER IDLE GEAR NO.1
1261524F00
€ 8.00
3
1261224F00
ref: 3
GEAR,STARTER IDLE NO.2
1261224F00
€ 49.50
3
1261224F00
ref: 3
GEAR,STARTER IDLE NO.2
1261224F00
€ 49.50
4
1215105200
ref: 4
PIN ,PISTON
1215105200
€ 6.50
5
0916414008
ref: 5
WASHER
0916414008
€ 2.50
6
1260024850
ref: 6
CLUTCH SET,STARTER
1260024850
€ 400.50
7
0926328031
ref: 7
BEARING(28X34X16.8)
0926328031
€ 27.00
8
0821110285
ref: 8
WASHER
0821110285
€ 2.50
9
0821120403
ref: 9
WASHER
0821120403
€ 3.50
10
0910310189
ref: 10
BOLT(10X23)
0910310189
€ 4.50
