FRAME COVER (MODEL X)

GSX1300RZ HAYABUSA 2000 (Y) USA (E03)

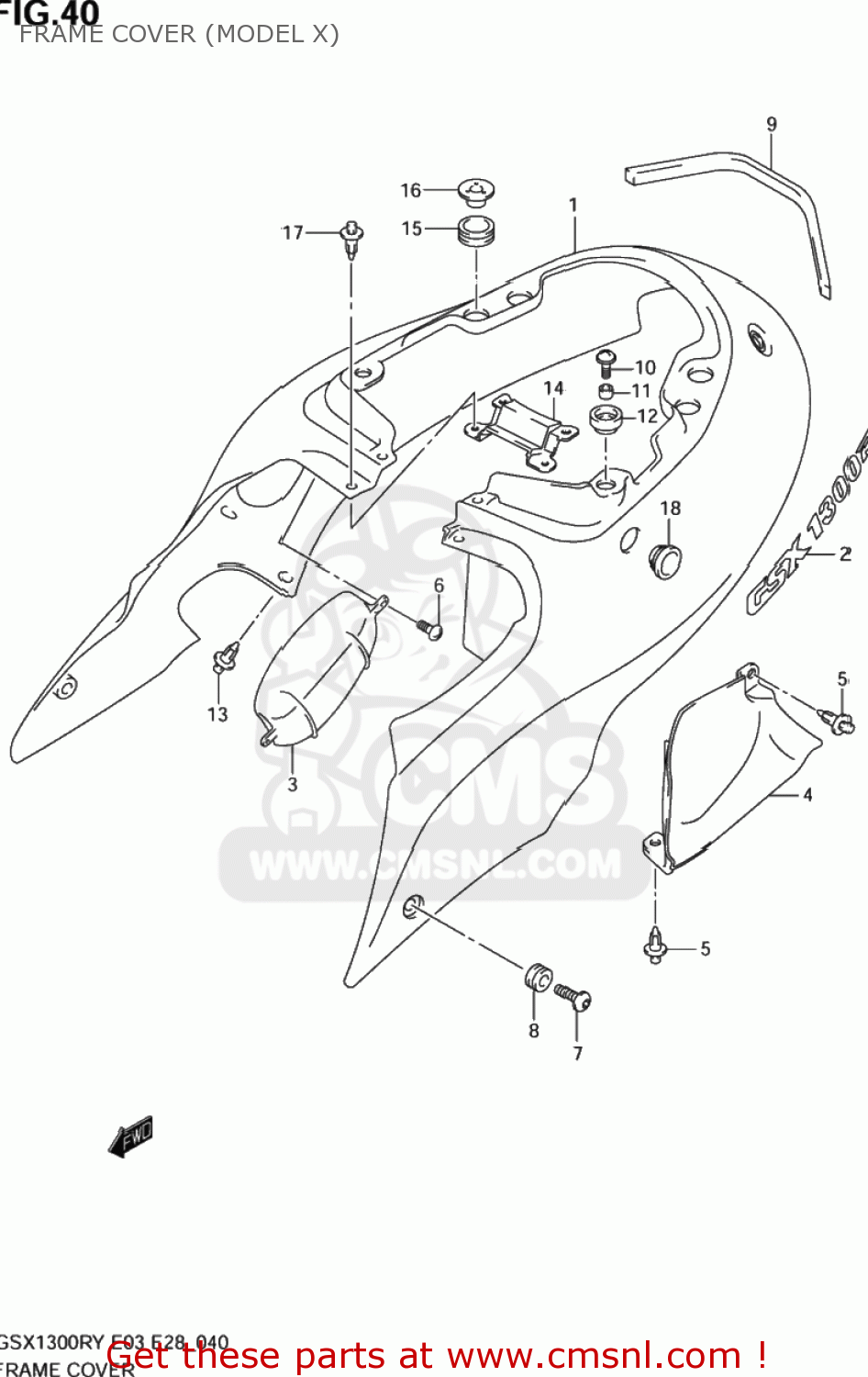

Frame cover (model x) diagram GSX1300RZ HAYABUSA 2000 (Y) USA (E03)

FRAME COVER (MODEL X) GSX1300RZ HAYABUSA 2000 (Y) USA (E03)

FRAME COVER (MODEL X) GSX1300RZ HAYABUSA 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711024F00Y9K
ref: 1-1
47110-24F01-Y9K

COVER,FRAME (BROWN)

€ 534.00

1-2

4711024F00Y7L
ref: 1-2
47110-24F01-Y7L

COVER COMP,FRAME

€ 347.00

2-1

6813124F00N0Z
ref: 2-1

EMBLEM,FRAME COVER

€ 33.00

2-2

6813124F00N1D
ref: 2-2

EMBLEM,FRAME COVER

€ 21.00

3-1

4751124F00
ref: 3-1

CAP,FRAME COVER HOLE,R

€ 10.00

3-2

4751124F10
ref: 3-2

CAP,FRAME COVER HOLE,R

€ 14.00

4

4752124F00
ref: 4

CAP,FRAME COVER HOLE,L

€ 31.00

5

09409063145PK
ref: 5

CLIP(BLACK)

€ 3.50

6

0354104123
ref: 6
03541-0412A

SCREW

€ 1.50

7

0913906087
ref: 7
09139-06126

SCREW(6X20)

€ 4.00

8

0932009016
ref: 8

CUSHION

€ 2.50

9

4716127E00
ref: 9

CUSHION,FRAME COVER UPR

€ 6.50

10

0913606105
ref: 10

SCREW(6X20)

€ 2.00

11

0918006288
ref: 11

SPACER(6.5X10X11)

€ 1.50

12

0932010045
ref: 12

CUSHION

€ 3.50

13

09409063145PK
ref: 13

CLIP(BLACK)

€ 3.50

14-1

4731124F00Y9K
ref: 14-1

COVER,FRAME CTR

€ 27.00

14-2

4731124F00Y7L
ref: 14-2

COVER,FRAME CTR

€ 24.00

15

4719124F00
ref: 15

CUSHION,FRAME COVER UPR RR

€ 3.00

16

4719024F00
ref: 16
47190-24F01

WASHER COMP,FRAME COVER

€ 7.00

17

09409063145PK
ref: 17

CLIP(BLACK)

€ 3.50

18

4719124F20
ref: 18

CUSHION,FRAME COVER CTR

€ 5.00
