ELECTRICAL
GSX1300RZ HAYABUSA 2002 (K2) USA (E03)

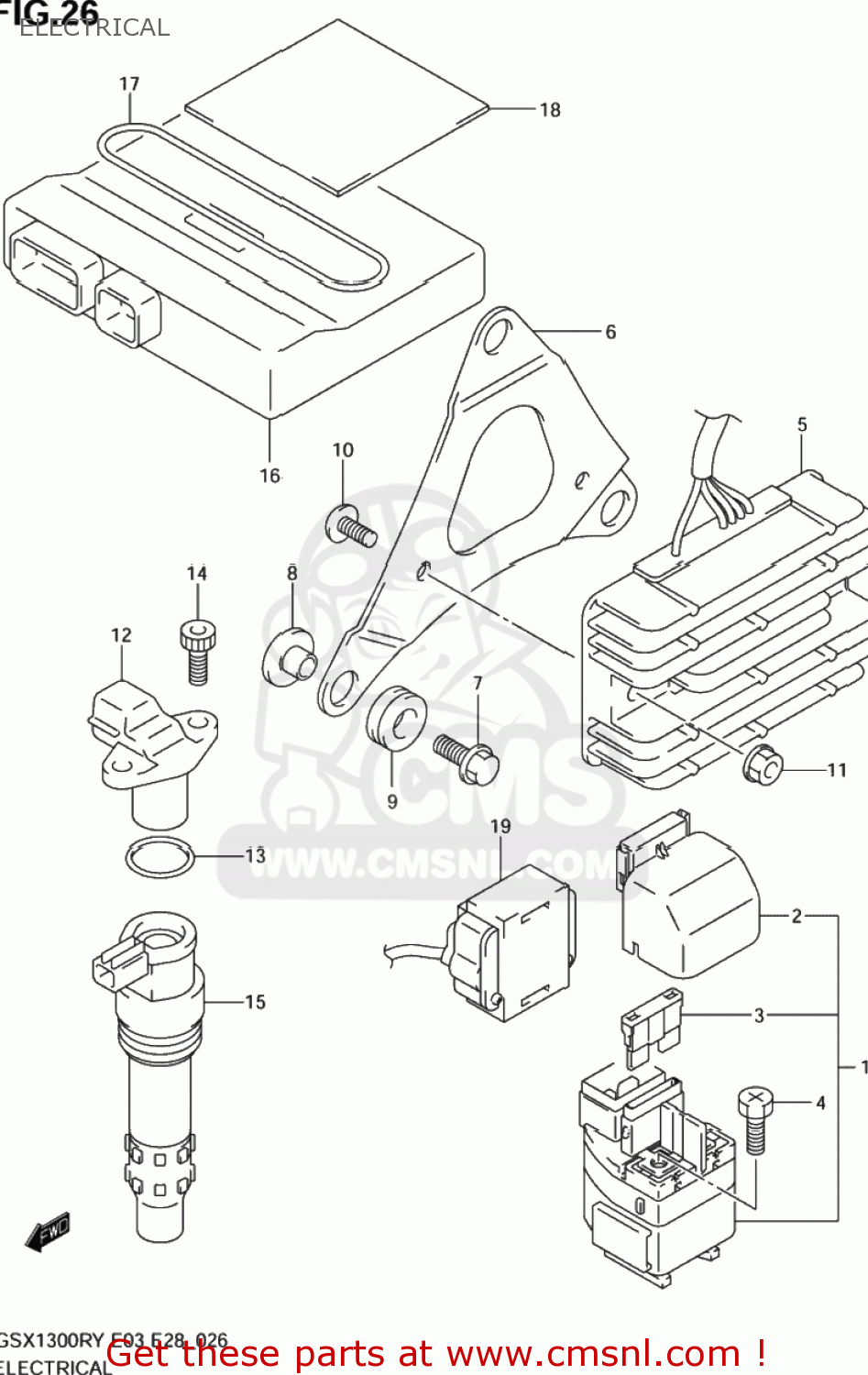

Electrical diagram GSX1300RZ HAYABUSA 2002 (K2) USA (E03)
ELECTRICAL GSX1300RZ HAYABUSA 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180026E00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 77.50
2
3186126E00
ref: 2
COVER,STARTER RELAY
€ 3.50
3
0948130101
ref: 3
FUSE(30A)
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5-1
3280033E10
ref: 5-1
32800-33E21
RECTIFIER ASSEMBLY
€ 371.00
5-2
3280033E20
ref: 5-2
32800-33E21
RECTIFIER ASY
€ 371.00
6
3281124F00
ref: 6
BRACKET,RECTIFIER
€ 31.50
7
0911606025
ref: 7
BOLT(6X25)
€ 2.50
8
0916906064
ref: 8
WASHER
€ 4.50
9
0932008051
ref: 9
09320-08066
CUSHION
€ 7.50
10
0214206203
ref: 10
02142-0620A
SCREW
€ 2.00
11
0831610063
ref: 11
08316-1006B
NUT
€ 2.50
12-1
3216002F00
ref: 12-1
SENSOR ASSY,CAM POSITION
€ 127.50
12-2
3216002F10
ref: 12-2
SENSOR ASSY,CAM POSITION
€ 127.50
13
3216102F00
ref: 13
PACKING (NAS)
€ 8.00
14
0713006163
ref: 14
07130-0616B
BOLT,OIL FILLE
€ 3.00
15-1
3341024F00
ref: 15-1
COIL ASSY,IGNITION
€ 183.50
15-2
3341024F10
ref: 15-2
COIL ASSY,IGNITION
€ 139.00
16-1
3292024F21
ref: 16-1
CONTROL UNIT,FI
€ 667.00
16-1
3292024F21
ref: 16-1
CONTROL UNIT,FI
€ 667.00
16-2
3292024FD0
ref: 16-2
CONTROL UNIT,FI
€ 0.00
16-3
3292024FK0
ref: 16-3
CONTROL UNIT,FI
€ 1,551.00
17
3365112910
ref: 17
BAND,BATTERY
€ 6.00
18
3365205300
ref: 18
PROTECTOR(40X40X16)
€ 2.50
18
3365205300
ref: 18
PROTECTOR(40X40X16)
€ 2.50
19
3396002F00
ref: 19
SENSOR ASSY,FUEL CUT
€ 85.00
