Buy Suzuki GSX Parts Online


REAR CALIPER (MODEL X/Y/K1/K2 GSX1300RZK3)

GSX1300RZ HAYABUSA 2002 (K2) USA (E03)

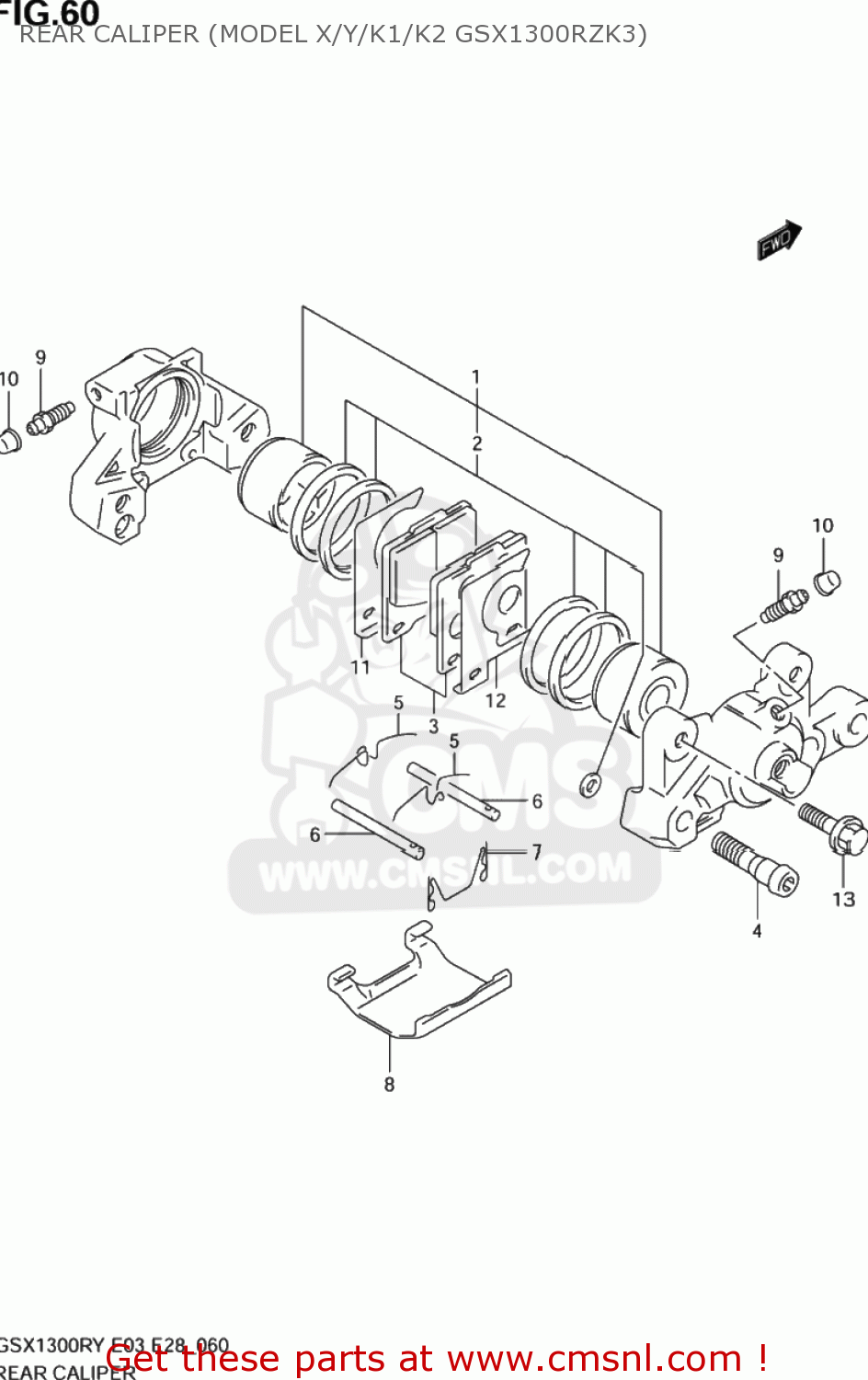

Rear caliper (model x/y/k1/k2 gsx1300rzk3) diagram GSX1300RZ HAYABUSA 2002 (K2) USA (E03)

REAR CALIPER (MODEL X/Y/K1/K2 GSX1300RZK3) GSX1300RZ HAYABUSA 2002 (K2) USA (E03)
REAR CALIPER (MODEL X/Y/K1/K2 GSX1300RZK3) GSX1300RZ HAYABUSA 2002 (K2) USA (E03)
REAR CALIPER (MODEL X/Y/K1/K2 GSX1300RZK3) GSX1300RZ HAYABUSA 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity

6910005CE0
ref:
69100-05CG0-999
CALIPER ASSEMBLY,REAR
6910005CE0
€ 770.50
1
6910005850
ref: 1
69100-05851
PISTON SET
6910005850
€ 122.50
2
6910032820
ref: 2
69101-05840
SEAL SET,PISTON
6910032820
€ 26.00
3
6910105820
ref: 3
PAD SET (NAS)
6910105820
€ 52.00
4
5914505C50
ref: 4
BOLT,HOUSING
5914505C50
€ 9.50
5
5914316700
ref: 5
SPRING
5914316700
€ 7.50
6
6914146E01
ref: 6
PIN,PAD
6914146E01
€ 9.00
7
6914246E01
ref: 7
CLIP,PAD PIN
6914246E01
€ 14.00
8
5915116701
ref: 8
COVER
5915116701
€ 13.50
9
5912118410
ref: 9
BLEEDER
5912118410
€ 8.00
10
5515666310
ref: 10
CAP,BLEEDER PLUG
5515666310
€ 6.00
11
5937120C00
ref: 11
SHIM,INNER
5937120C00
€ 7.50
12
5938120C00
ref: 12
SHIM,OUTER
5938120C00
€ 7.50
13-1
0155008303
ref: 13-1
01550-0830A
BOLT
0155008303
€ 3.00
13-2
0910308359
ref: 13-2
BOLT(8X28)
0910308359
€ 4.00
