SEAT (MODEL X/Y)

GSX1300RZ HAYABUSA 2002 (K2) USA (E03)

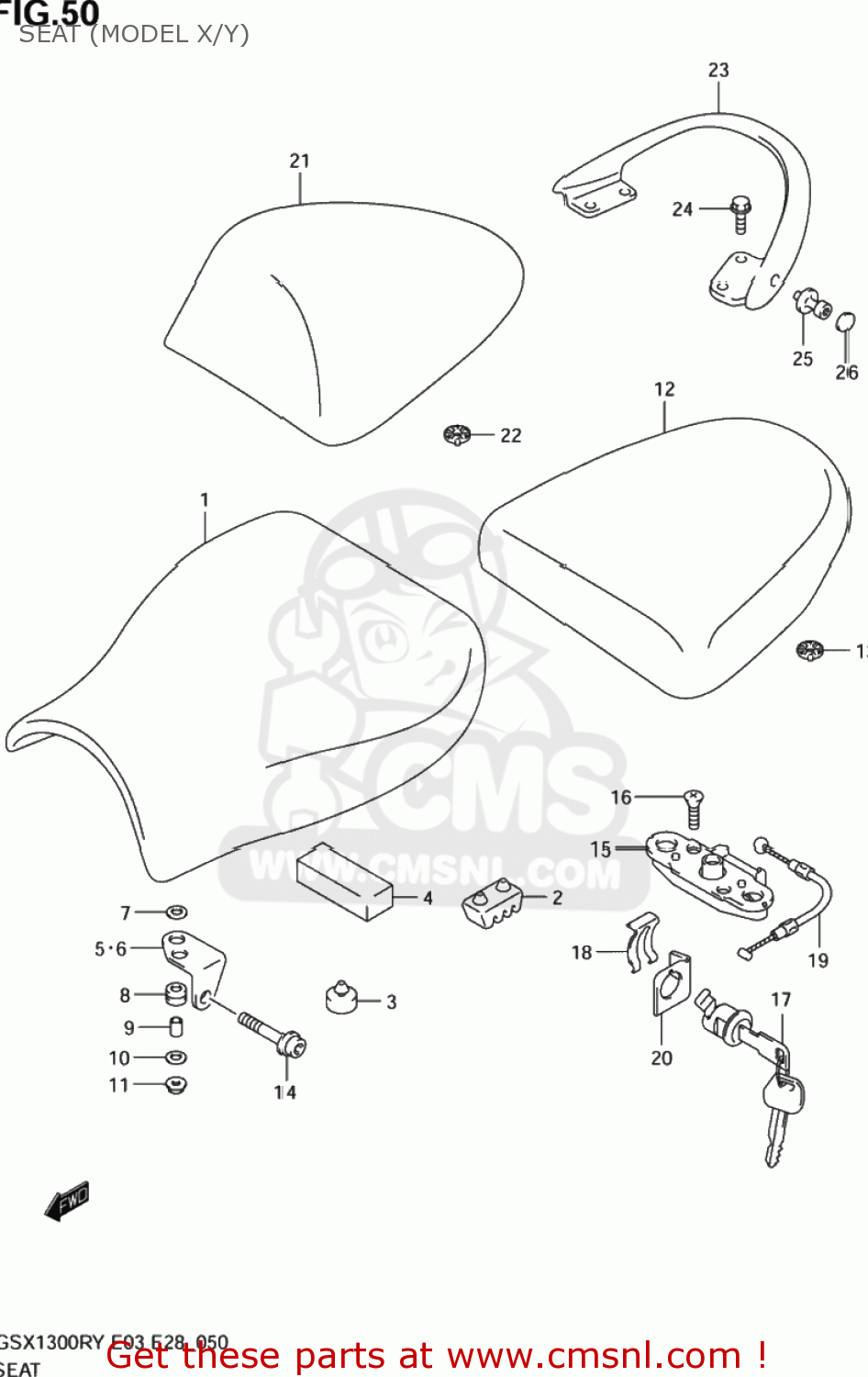

Seat (model x/y) diagram GSX1300RZ HAYABUSA 2002 (K2) USA (E03)

SEAT (MODEL X/Y) GSX1300RZ HAYABUSA 2002 (K2) USA (E03)
SEAT (MODEL X/Y) GSX1300RZ HAYABUSA 2002 (K2) USA (E03)
SEAT (MODEL X/Y) GSX1300RZ HAYABUSA 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4510024F00W05
ref: 1-1
45100-24F10-W05
SEAT ASSEMBLY
€ 238.50
1-2
4510024F01W05
ref: 1-2
45100-24F10-W05
SEAT ASSEMBLY (BLACK)
€ 238.50
2
4514945330
ref: 2
CUSHION,SUPPORT(50X25X32)
4514945330
€ 2.00
3
0932110011
ref: 3
CUSHION
0932110011
€ 3.00
4
4511747D00
ref: 4
CUSHION,CTR
4511747D00
€ 5.50
5
4511524F00
ref: 5
BRACKET,SEAT FR,R
4511524F00
€ 8.50
6
4511624F00
ref: 6
BRACKET,SEAT FR,L
4511624F00
€ 6.00
7
0916006066
ref: 7
WASHER(6.5X20X1.6)
0916006066
€ 2.00
8
4514924F00
ref: 8
45149-24F01
CUSHION,SEAT 10X20X10
€ 9.00
9
0918006310
ref: 9
SPACER(6.5X10X10)
0918006310
€ 2.00
10-1
0916006066
ref: 10-1
WASHER(6.5X20X1.6)
0916006066
€ 2.00
10-2
4511724F00
ref: 10-2
WASHER,SEAT BRACKET
€ 4.00
11
0831610063
ref: 11
08316-1006B
NUT
0831610063
€ 2.50
12
4530024F00W05
ref: 12
45300-24F10-W05
SEAT ASSEMBLY,PILLION
4530024F00W05
€ 233.00
13
4521331300
ref: 13
CUSHION
4521331300
€ 1.50
14
4519124F00
ref: 14
BOLT,SEAT FR
4519124F00
€ 4.00
15
4522020A01
ref: 15
45220-47H00
BRACKET,SEAT SUPPORT,RIGHT
4522020A01
€ 79.50
16
0212206303
ref: 16
02122-0630B
SCREW
0212206303
€ 2.00
17
9570014810
ref: 17
LOCK SET,SEAT
9570014810
€ 75.50
18
4528911F00
ref: 18
PLATE,SEAT LOCK ASSY
4528911F00
€ 3.00
19
4528024F00
ref: 19
CABLE,SEAT LOCK
4528024F00
€ 13.00
20
4528814F00
ref: 20
GUIDE,SEAT LOCK CABLE
4528814F00
€ 3.00
21-1
4555024F00Y7L
ref: 21-1
BOX,SEAT TAIL(BLACK)
4555024F00Y7L
€ 198.00
21-2
4555024F00Y9K
ref: 21-2
BOX,SEAT TAIL(BROWN)
€ 149.00
21-3
4555024F00YC6
ref: 21-3
BOX,SEAT TAIL(RED)
€ 177.00
21-4
4555024F001LF
ref: 21-4
BOX COMP,SEAT TAIL
€ 164.00
21-5
4555024F00Y7L
ref: 21-5
BOX,SEAT TAIL(BLACK)
4555024F00Y7L
€ 198.00
21-6
4555024F001LF
ref: 21-6
BOX COMP,SEAT TAIL
€ 164.00
22
4521331300
ref: 22
CUSHION
4521331300
€ 1.50
23
4621124F0035W
ref: 23
46211-24F01-35W
HANDLE,PILLION RIDER
€ 191.50
24
0155008303
ref: 24
01550-0830A
BOLT
0155008303
€ 3.00
25-1
4621224F10
ref: 25-1
46212-24F11
HOOK,PILLION RIDER HANDLE
4621224F10
€ 18.50
25-2
4621224F11
ref: 25-2
HOOK,PILLION RIDER HANDLE
4621224F11
€ 18.50
26
0925005009
ref: 26
CAP(OD:10)
0925005009
€ 2.50
